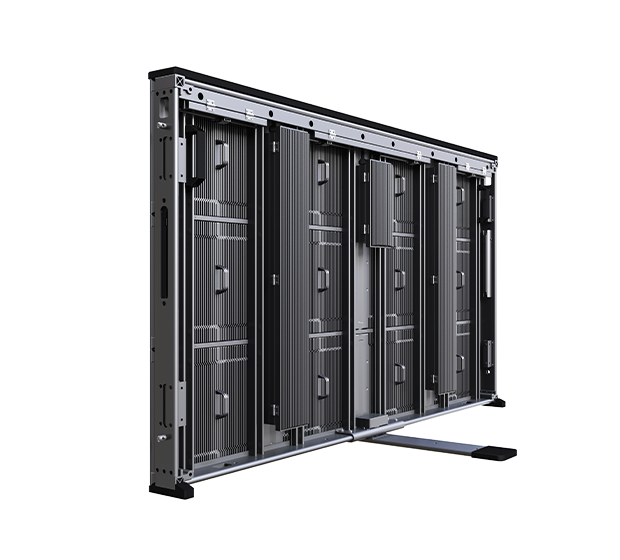

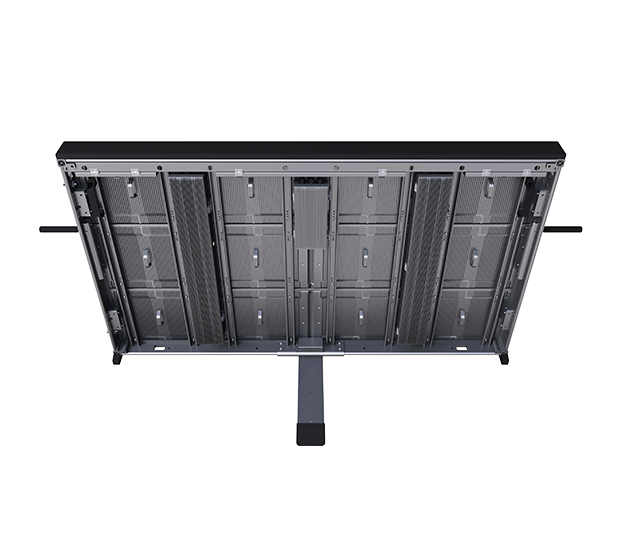

Kings of Neon APRO-O Series - 1600x900mm Aluminum Stadium Perimeter LED Screen
The APRO Series outdoor LED display is engineered specifically to perform reliably in extreme hot & cold and high brightness applications. built with rugged, weatherproof full aluminum materials that protect against rain, snow, dust, and other environmental factors, ensuring consistent performance regardless of the environmental challenges.
Also, it uses advanced LED technology to reduce power consumption while delivering high-performance output. With features like advanced thermal management, high brightness up to 12000nits, and an IP66 rating weatherproof design, delivering contents clearly while captivating audience with stable performance.

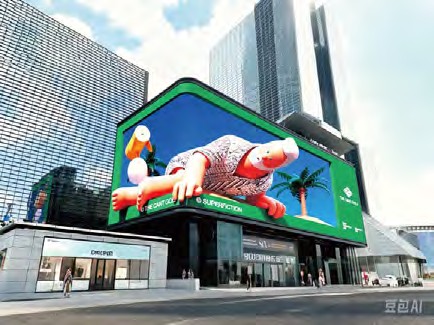

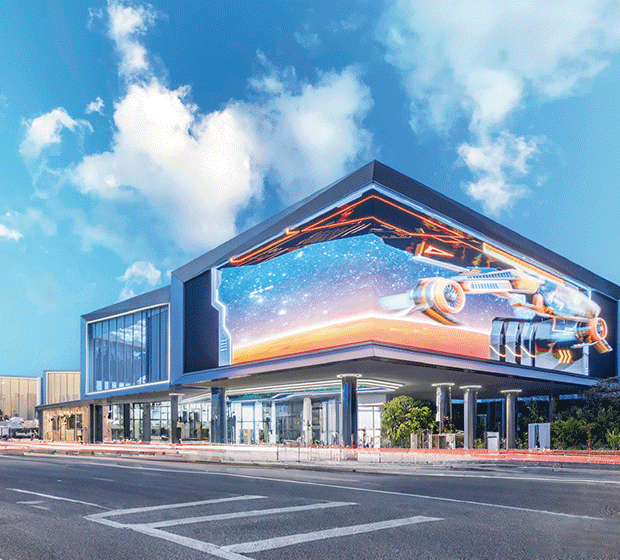

A Pro Series can be customized with curved installation, ideal for giant 3D naked-eye solution, in addition, we provide complete package kit for one stop purchase. Our premium A Pro Series led screen, will create strong brand awareness for you
Key Features

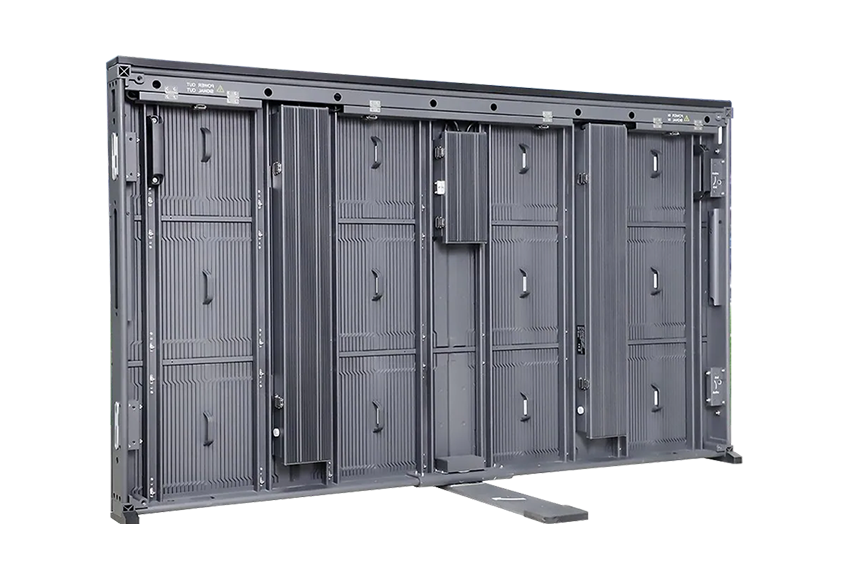

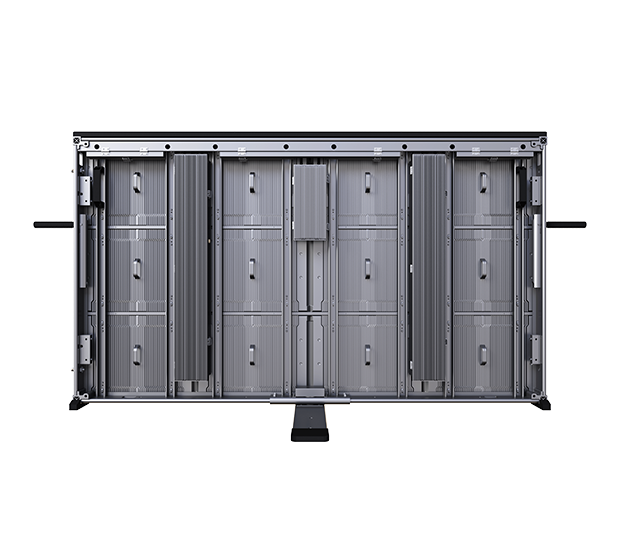

- 16:9 Design , Light Weight with full aluminum Cabinet - Panel size: 1600*900*101mm 45Kgs per sqm, 30% lighter and normal iron cabinet, saving labor cost and shipping cost; Recyclable and resource-saving; High precision CNC Processing, High Flatness

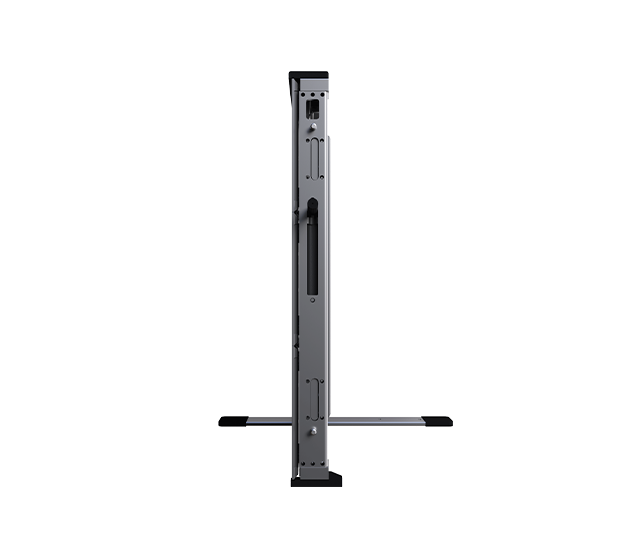

- Built in footstand
- Humanization Design, Impact protection - 3-layer slope design soft screen mask,efficient impact buffering and rain draining; cabinet rubber cover protector, protect the athletes in case of impact; Designed footstand with rubber protector, safe and stable

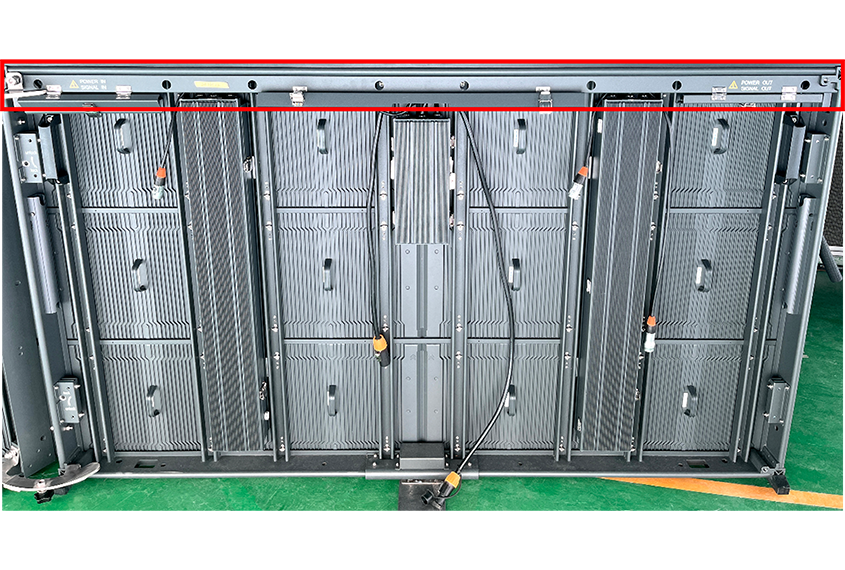

- Hidden Cable Design , Top Cable Duct - All cables are hidden at the top of the cabinet, which make the clean look and prevent water and animals from the cables

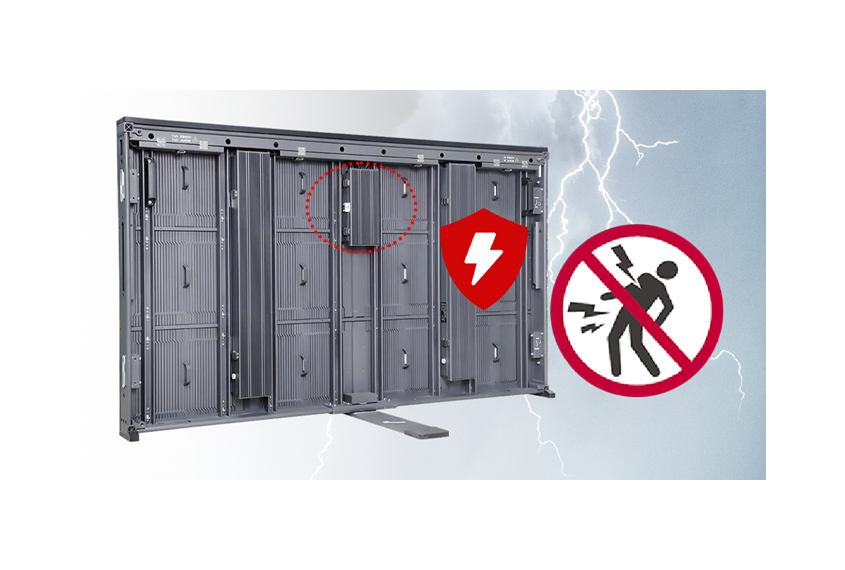

- Electrical Safety - A circuit breaker is included in each cabinet not only to protect people from electric shock by current leakage causes, but also to provide security from an overcurrent.
- Emergency Access Provision (Optional) - Special bolts design to support to remove two cabinets easily for exit in case of emergency, this is necessary for quick and easy escape required by most football associations

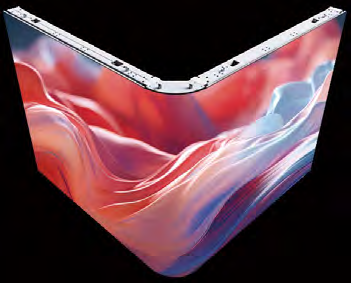

- Curved Splicing (Optional) - Curved splicing available , creating special display effects as requested of the stadium
- Super Safe- IP66 Waterproof
- Redundancy Support For Power Supply And Receiving Card - supports both power and signal redundancy to reassure the operator and ensure the continuous operation even if there is power failure or no signal.
- Large Viewing Angle - SMD lamps offer 160/160 degree viewing Angle
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 5500-9000nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160°/160° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 6.67 |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 60x45dots |
| CABINET PIXEL RESOLUTION ( H X W) | 240x135dots |
| BRIGHTNESS | 5500~8500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 1600x900mm ( 62.99x35.43 inch) |
| CABINET WEIGHT | 64.8Kgs ( 142.85 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 8.3mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 48x36dots |
| BRIGHTNESS | 5500~6500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 1600x900mm ( 62.99x35.43 inch) |
| CABINET WEIGHT | 64.8Kgs ( 142.85 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 10mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 40x30dots |
| CABINET PIXEL RESOLUTION ( H X W) | 160x90dots |
| CABINET SIZE | 1600x900mm ( 62.99x35.43 inch) |
| CABINET WEIGHT | 64.8Kgs ( 142.85 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
