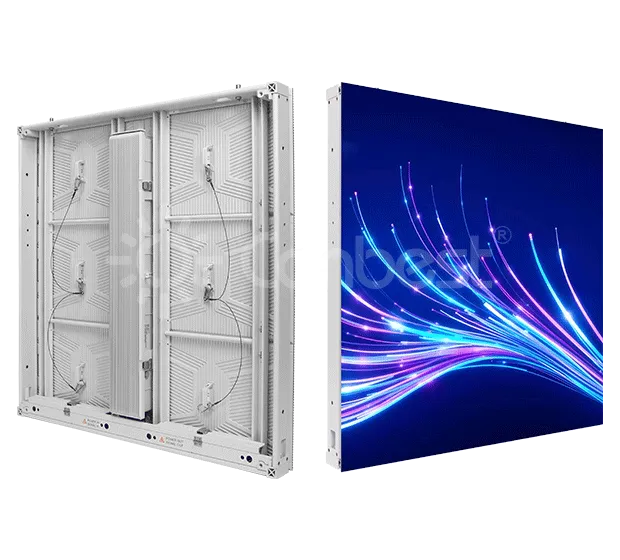

Kings of Neon APRO-S Series - Full Aluminum Outdoor LED Display
APRO-S Series – Cost-Effective 8000nits Outdoor Digital LED BillboardMaximize Your Advertising ROI, Day and Night
Engineered for demanding outdoor environments, the APRO-S Series delivers ultra-high 8000 nits brightness—ensuring clear, vivid visuals even in direct sunlight. Built for 24/7 operation, it’s the ideal solution for sun-exposed regions where maximum visibility and high ROI are essential.
Extreme Brightness: 8000 nits, sunlight-readable

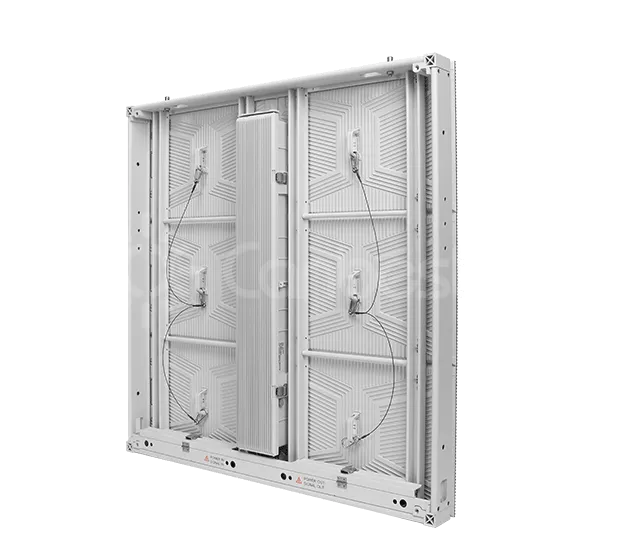

Full Aluminum Cabinet: Lightweight, fanless design for efficient heat dissipation, zero deformation
Energy Saving: Up to 40% lower power consumption
Flexible Installation: Supports flat, curved, and right-angle setups
Durability: IP66 waterproof, 5VB fire rating, and wide operating temperature (-40°C to +70°C)
Maintenance Access: Front and rear serviceable
Power & Data Redundant Option

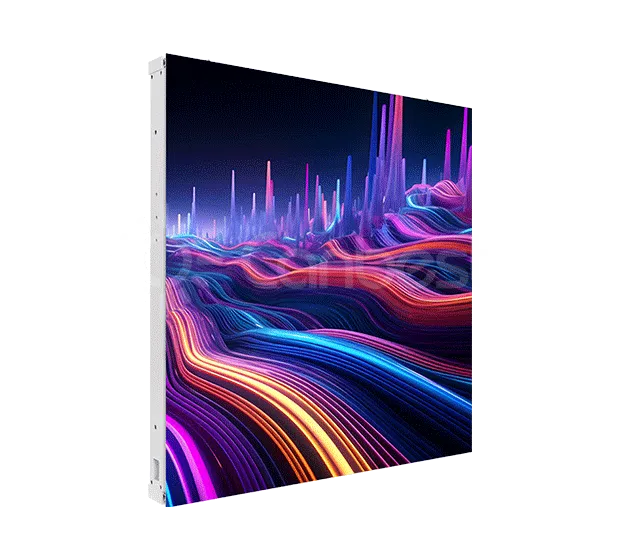

Cabinet Size: 960×960mm
Available Pixel Pitches: P5, P6, P8, P10

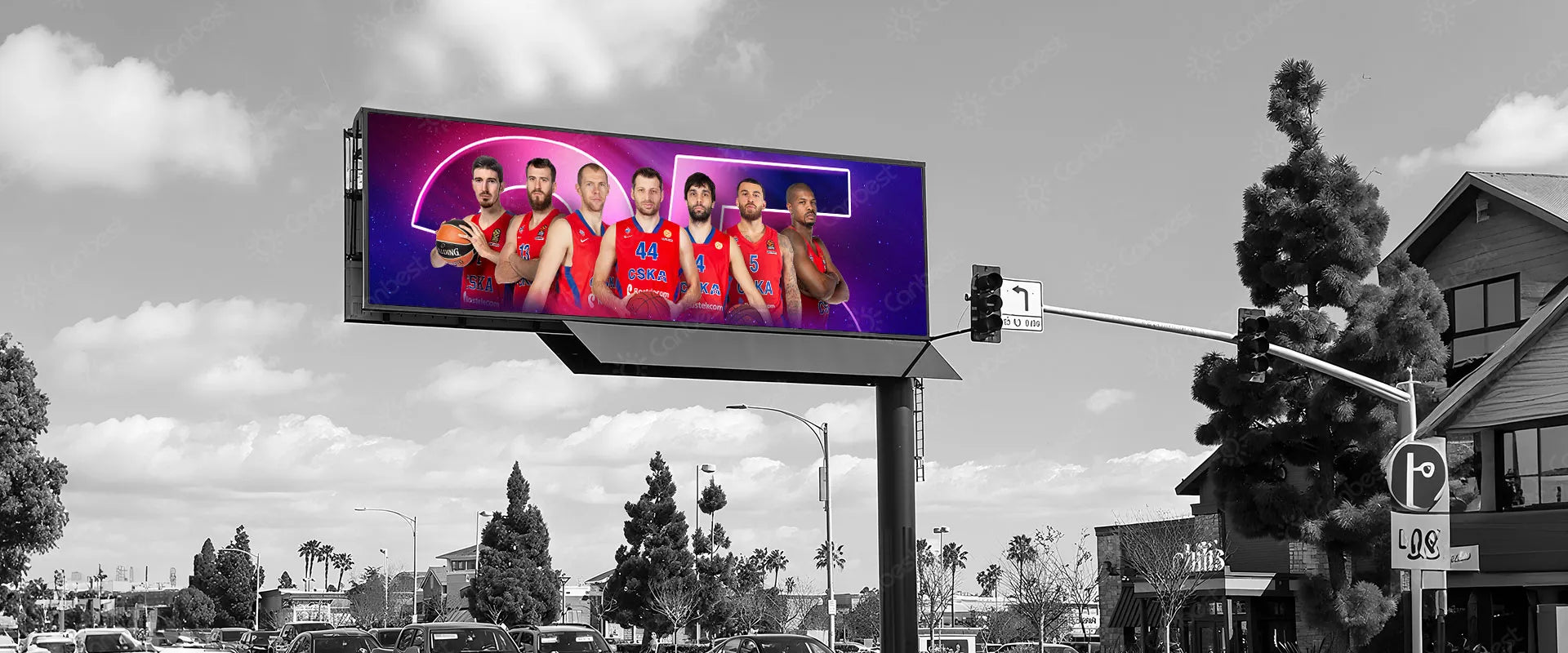

Ideal for outdoor advertising, roadside billboards, building façades, and high-traffic commercial spaces, the APRO-S Series combines powerful performance with smart design—delivering dependable operation and outstanding visibility around the clock.
Key Features

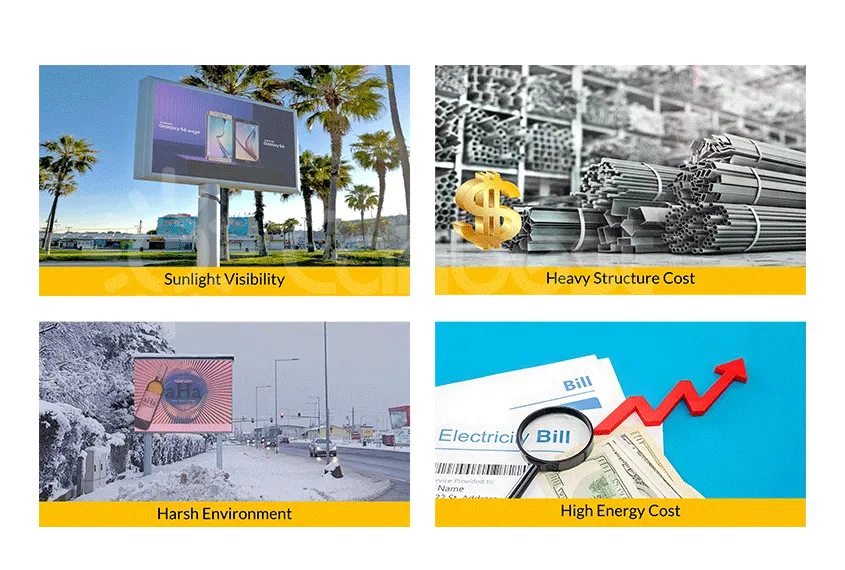

- Outdoor LED Challenges We Solve

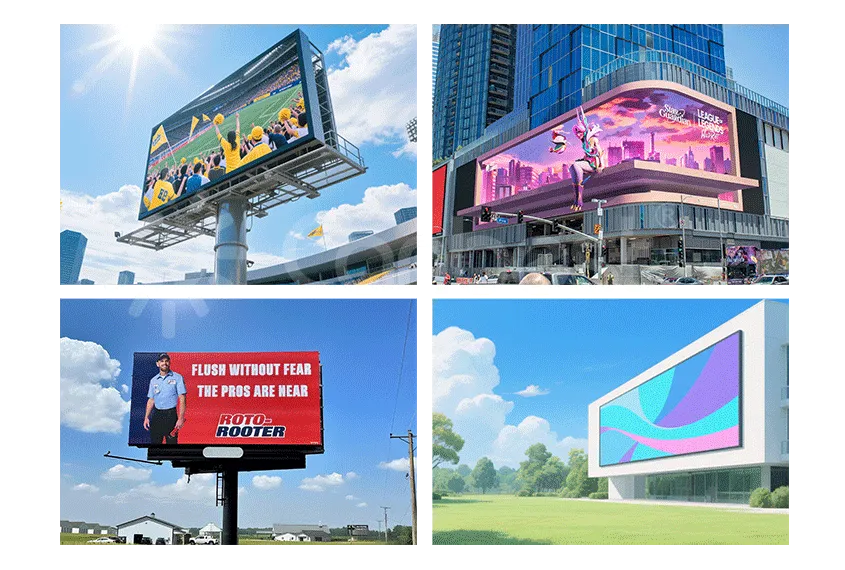

- APRO-S-Brighten Every Moment - The most cost-effective high-brightness aluminum display for 24/7 operation

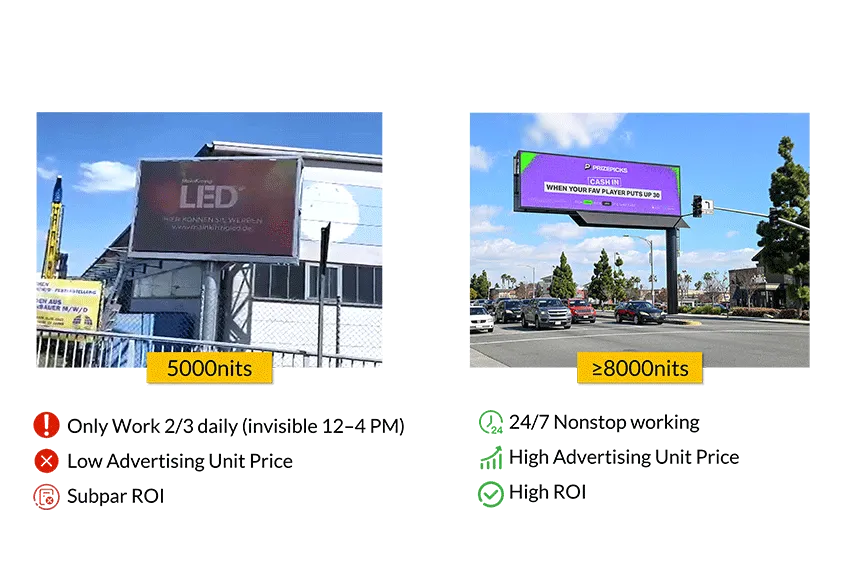

- Ultra-Bright 8000+ Nits, Maximum Visibility, Maximum ROI - With ≥8000nits brightness and adjustable levels, this high-performance LED display delivers crystal-clear visuals even in direct sunlight. Built for 24/7 use, it’s a durable, energy-saving solution that maximizes visibility and ROI around the clock.
- Energy-Saving Design - Equipped with a unique voltage-dividing power system, it lowers energy consumption and reduces daily operating costs by up to 40%.

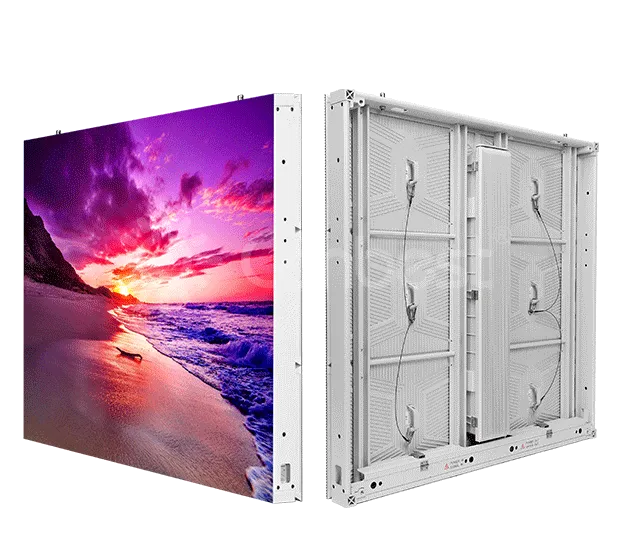

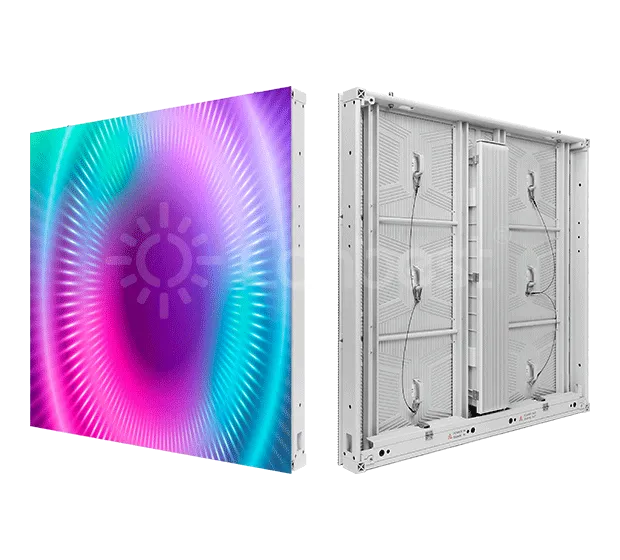

- Full Aluminum Module+Frame+Power box - Made from all-aluminum, our LED modules use a built-in heat-sink chassis for efficient, fan-less cooling. Lightweight and thermally efficient, they reduce structural load, cut installation costs, and eliminate the need for air conditioning.
- Super Safe -5VB Fire Rating
- Extremely Hot Resistance - Built for high-heat environments, it operates steadily up to 70℃—ideal for outdoor, sun-exposed, or industrial use.
- Low Temperature Resistance - Reliable operation at ultra-low temperatures down to -40 ℃ fully resistant to extreme cold conditions.
- IP66 Waterproof

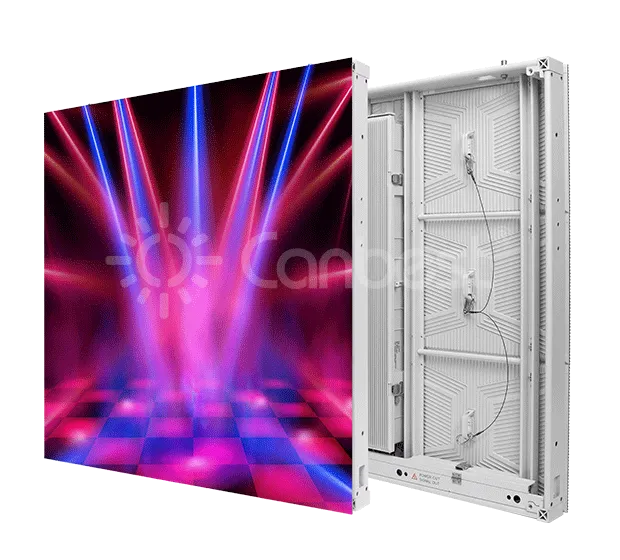

- Front & Rear Maintenance - No need for a rear access channel, offering a sleek appearance and cost-effective structure.
- Flexible Installation
- Accessories - Wall Mounted Structure for Rear Service Wall Mounted Structure for Front Service Roof Mounted Structure Wall Mounted Structure for Naked-Eye Solution V Shape LED Structure with Pole Single Sided and Double Sided Structure with Pole
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 8000nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160°/160° |
| Contrast Ratio | 5000：1 |
Technical Specifications
| PIXEL PITCH | 5.7mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 84x56dots |
| CABINET PIXEL RESOLUTION ( H X W) | 168x168dots |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 27Kgs ( 59.52 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -40℃~+70℃ |
| PIXEL PITCH | 6.67mm |
| MODULE PIXEL RESOLUTION ( H X W) | 72x48dots |
| CABINET PIXEL RESOLUTION ( H X W) | 144x144dots |
| BRIGHTNESS | 8000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 27Kgs ( 59.52 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -40℃~+70℃ |
| PIXEL PITCH | 8mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 60x40dots |
| CABINET PIXEL RESOLUTION ( H X W) | 120x120dots |
| BRIGHTNESS | 8000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 26Kgs ( 57.32lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -40℃~+70℃ |
| PIXEL PITCH | 10mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 48x32dots |
| BRIGHTNESS | 8000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 25Kgs ( 55.11 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -40℃~+70℃ |

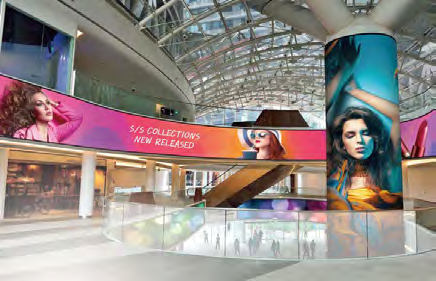

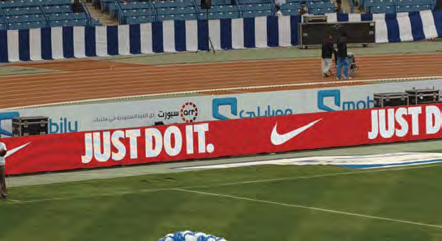

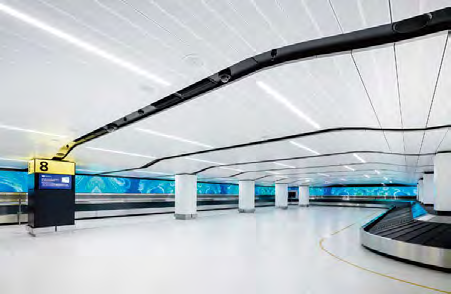

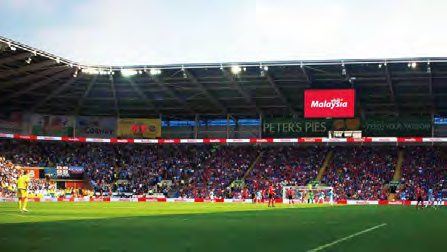

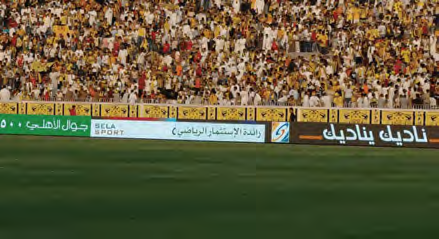

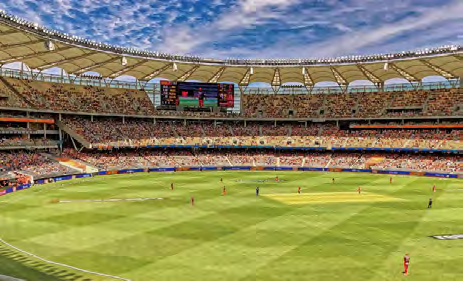

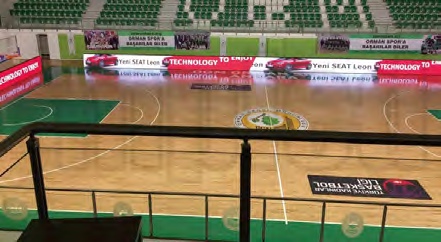

Applications
Contact Kings of Neon for expert advice on the APRO-S Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
