Kings of Neon CJ HP Series - Ultra-thin Indoor Dual-sided LED Poster
The CJ-HP V2 Series is an ultra-thin indoor dual-sided LED poster available in P1.5 to P3.9, designed for premium commercial spaces. Its fully integrated double-sided structure supports synchronized or independent content on both screens.
At 50% lighter than traditional models, it offers easy installation, enhanced safety with a reinforced rope, and a redundant power supply for uninterrupted use. Its optimized design delivers fast heat dissipation and long-term reliability.
A built-in power connector on the lifting beam streamlines hanging installations, while front service and flexible mounting options—hanging, wall, or floor—simplify setup and maintenance.

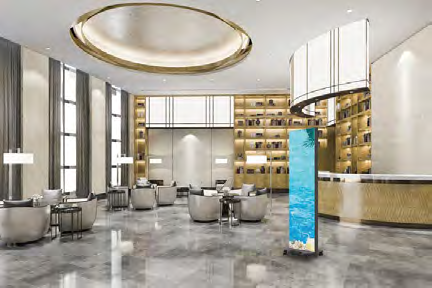

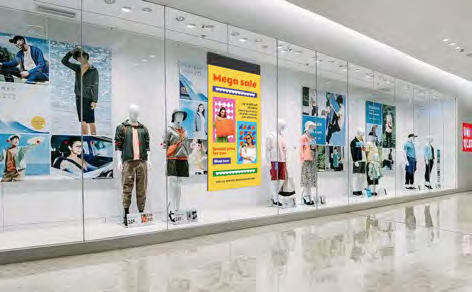

With smart control via 4G, WiFi, USB, LAN, or cloud, content updates are fast and convenient. Compact, versatile, and dual-view ready, the CJ-HP V2 Series is ideal for malls, retail, airports, stations, lobbies, events, restaurants, museums, and any space with two-way foot traffic.
Key Features

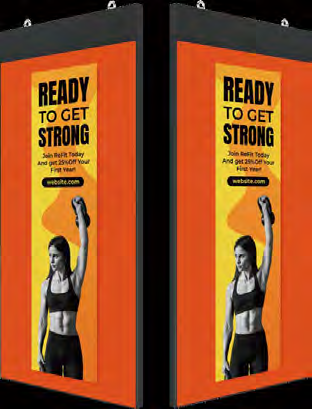

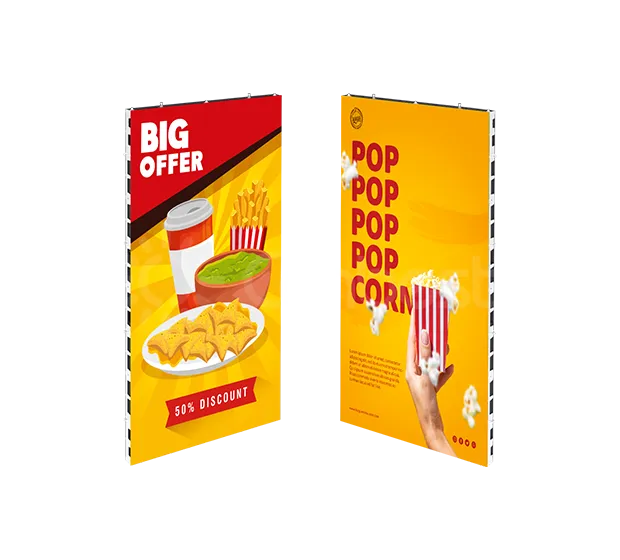

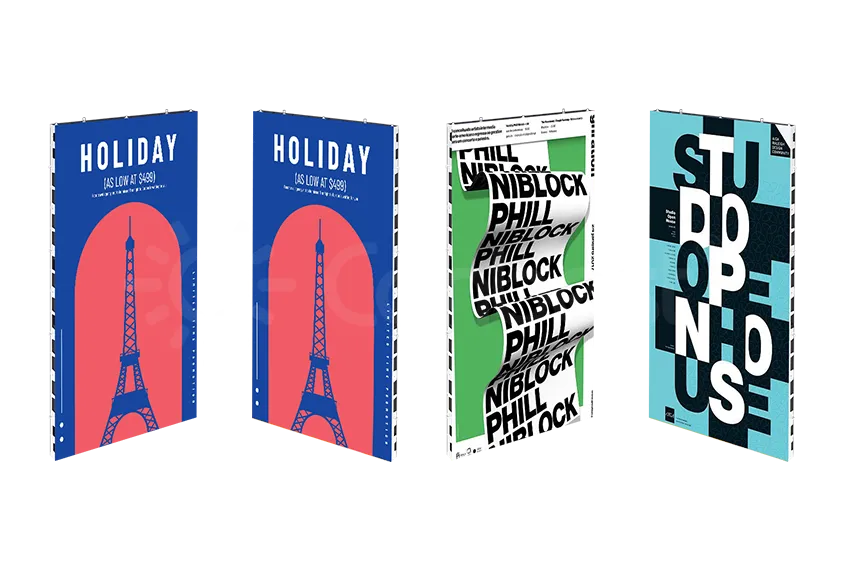

- Dual-Sided Independent Display - Support same content and different content display on both sides, maximizing visibility and engagement in high-traffic areas.

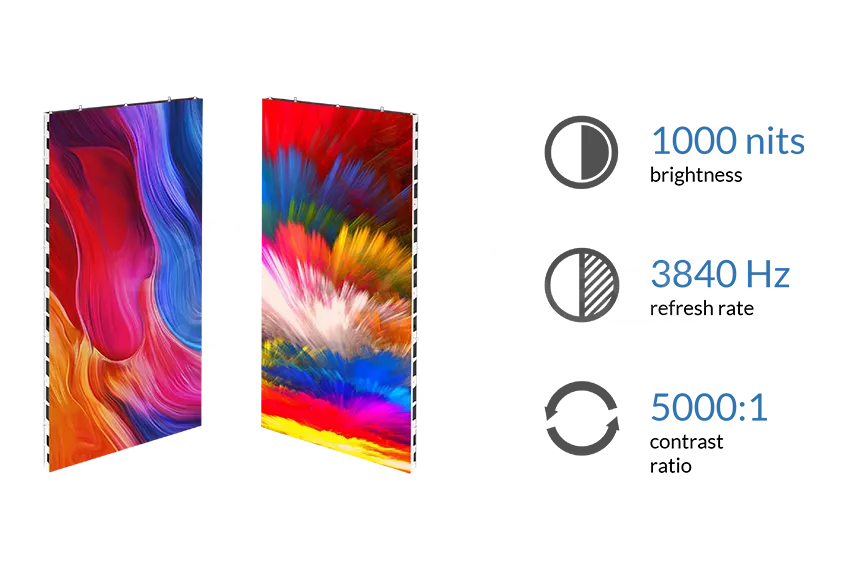

- Vivid & Smooth Visuals - Equipped with 1000nits high brightness, 5000:1 contrast ratio, and ≥3840Hz refresh rate, it delivers vibrant, fluid visuals even under bright lighting conditions.

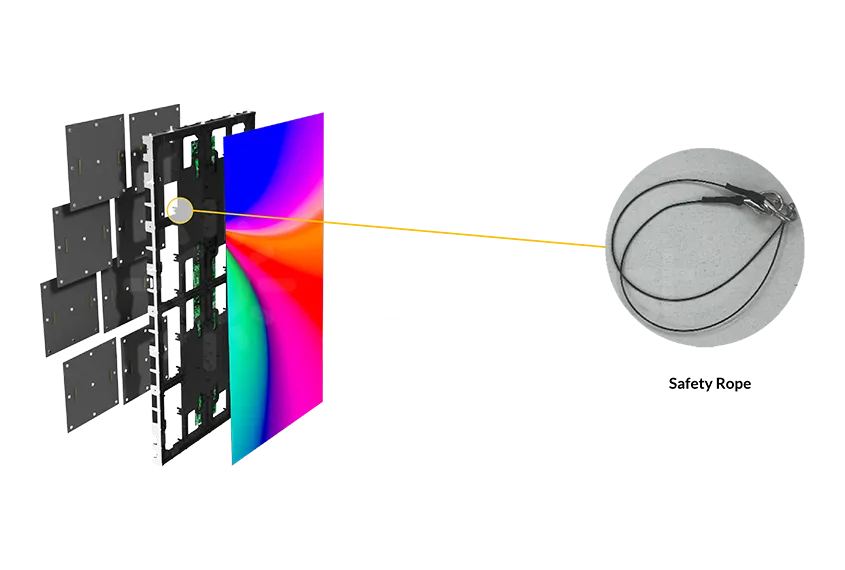

- High Safety - Safety cable designed to prevent LED module falls, especially in public or crowded venues.

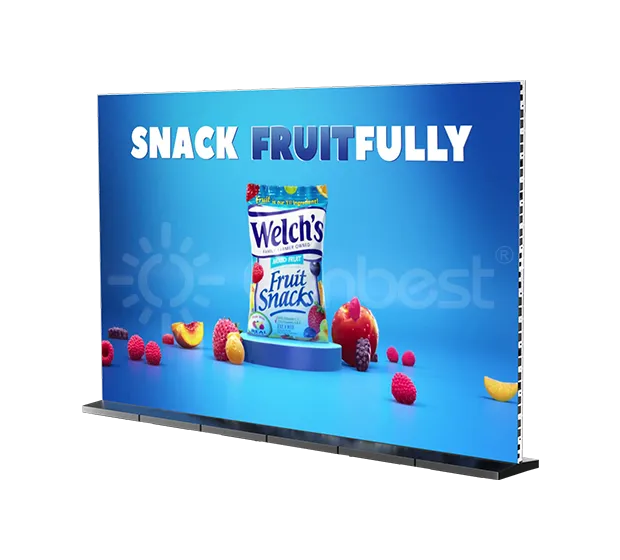

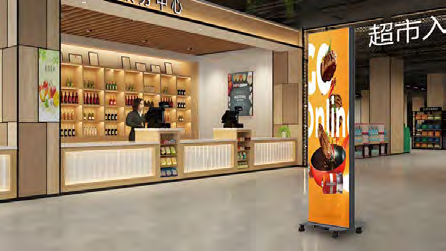

- Floor Mounting (Optional) - More flexible and more unique in airport , shopping malls, events.

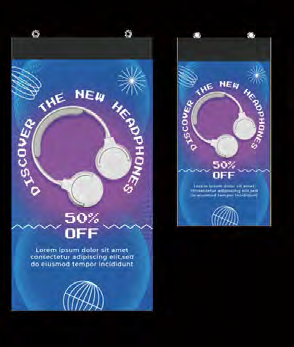

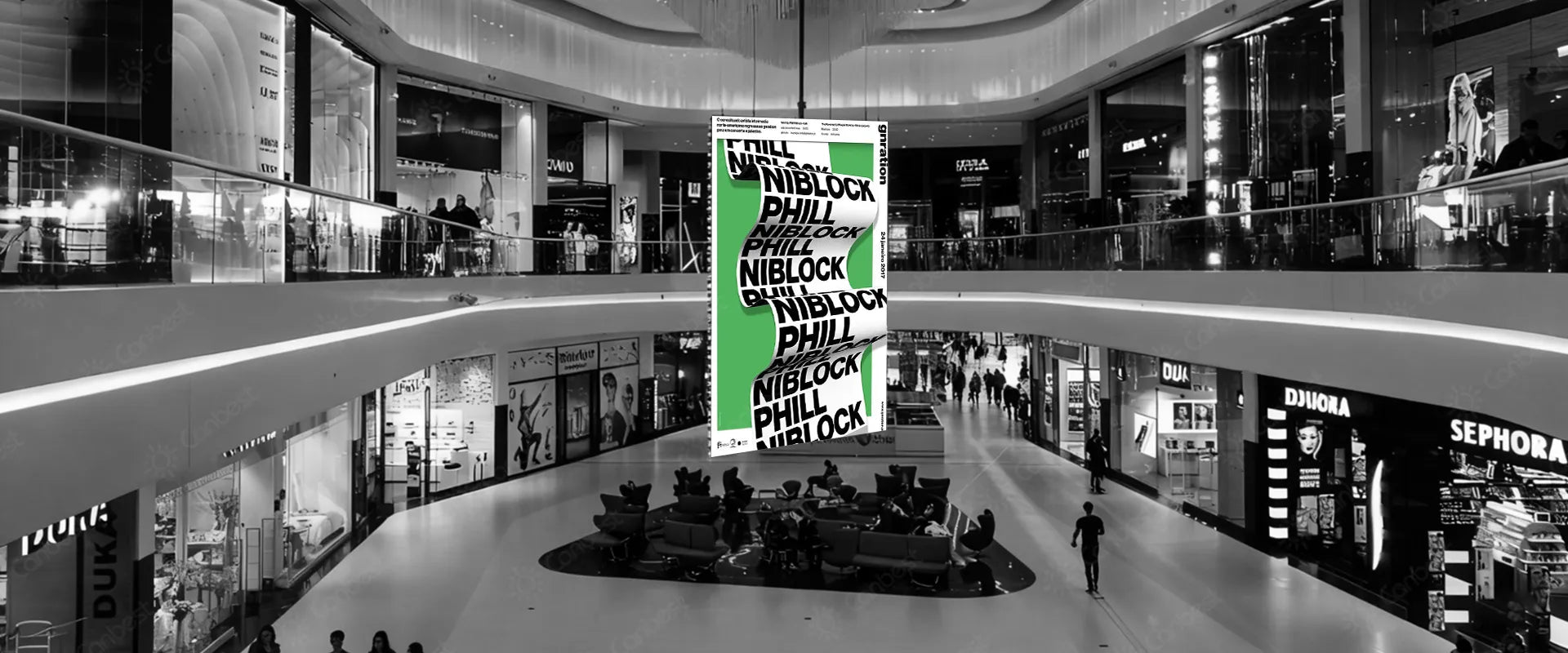

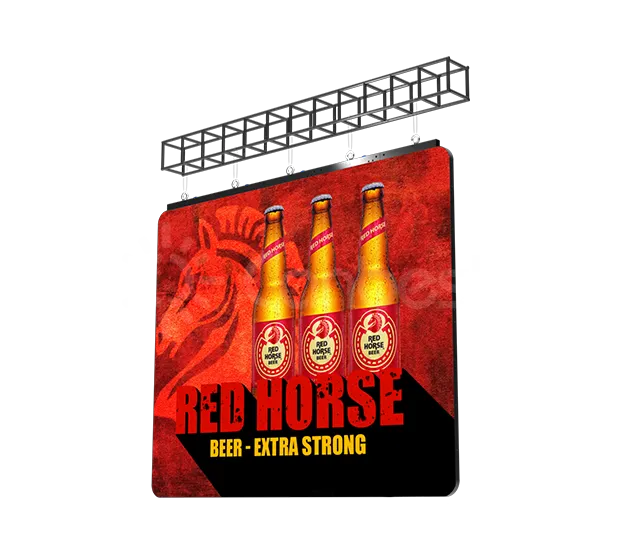

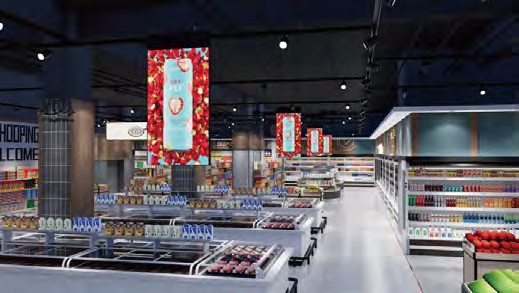

- Hanging Installation - Supports multi-unit or single-unit hanging installation, with 0.5m, 1m, and 2m hanging bar optional. Also support customizable rounded corner edges.

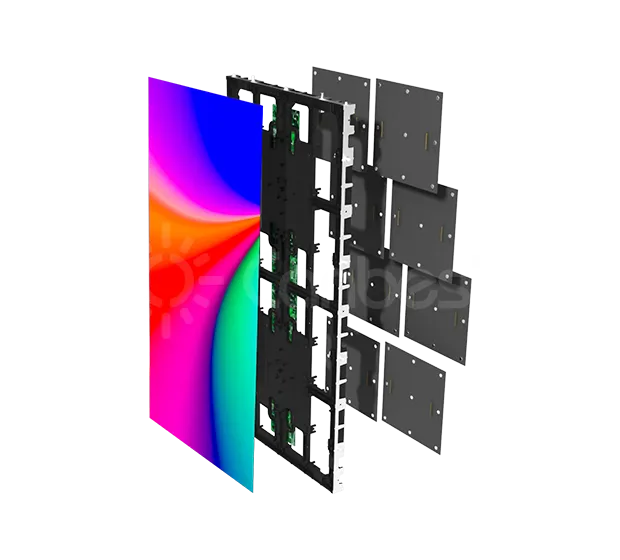

- Fast Heat Dissipation - With vents on all sides and a die-cast aluminum cabinet, the system delivers efficient cooling, improved display uniformity, and long-term reliability.
- Redundant Power Supply Optional - Keeps your display running smoothly and stable even during unexpected power interruptions.
- Smart Control - The LED poster supports 4G, Wi-Fi, USB, LAN connections and cloud cluster controls, enabling real-time remote management and scheduling for quick and efficient content updates.

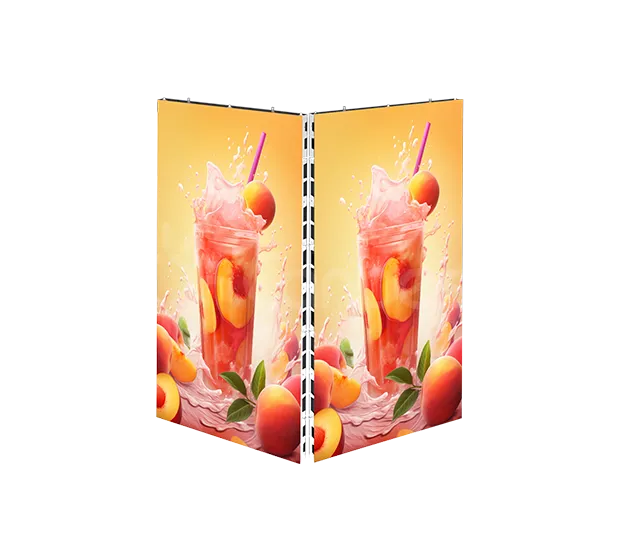

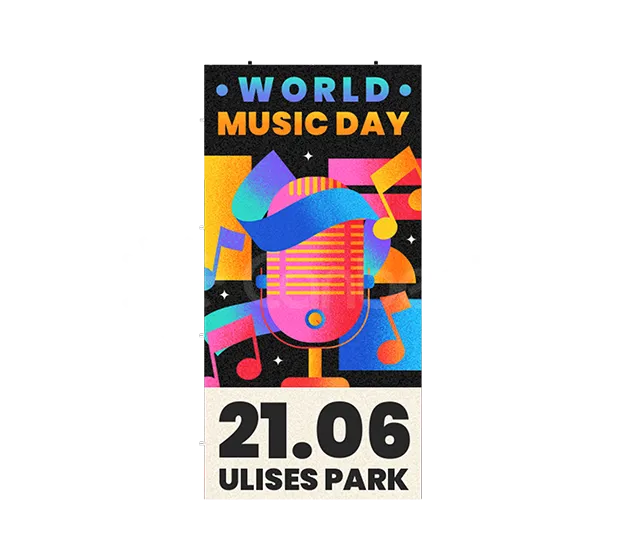

- Flexible Content Display Effects - Supports dynamic same content or different contents updates with easy remote management for targeted promotions
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 800-1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.9mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| OPERATING SYSTEM | Android 11 |
| PIXEL RESOLUTION ( H X W) | 256x512dots |
| BRIGHTNESS | 800-1000nits |
| REFRESH RATE | 3840Hz |

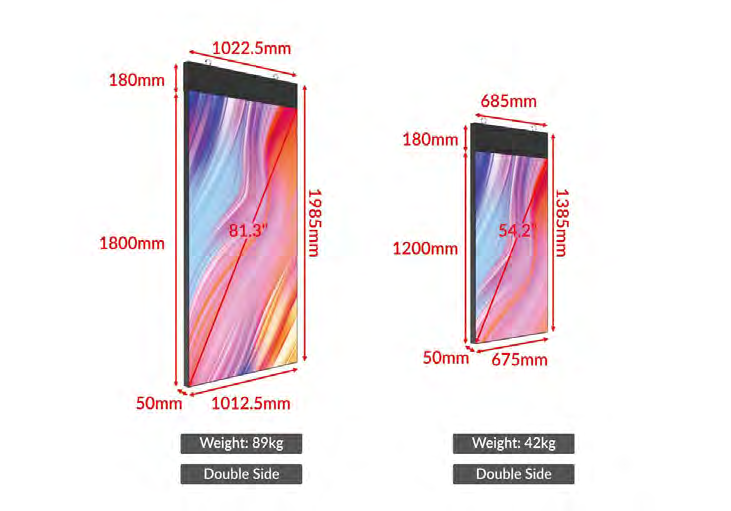

| CABINET SIZE | 500*1000mm (19.68*39.37inch) |
| CABINET WEIGHT | 10Kgs (22 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃`+40℃ |
Applications
Contact Kings of Neon for expert advice on the CJ HP Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
