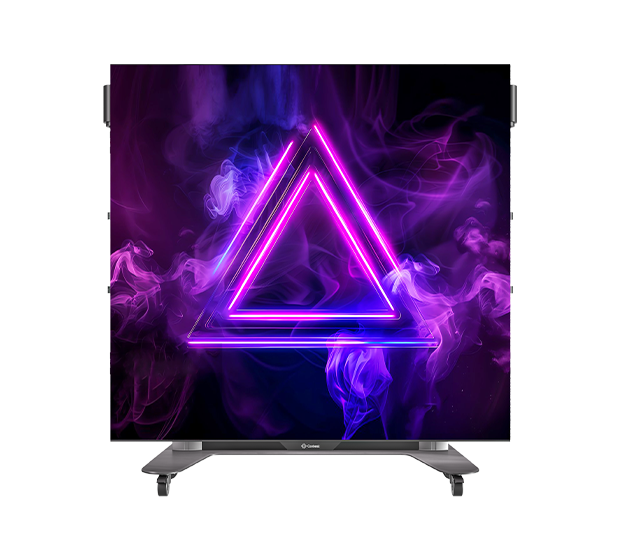

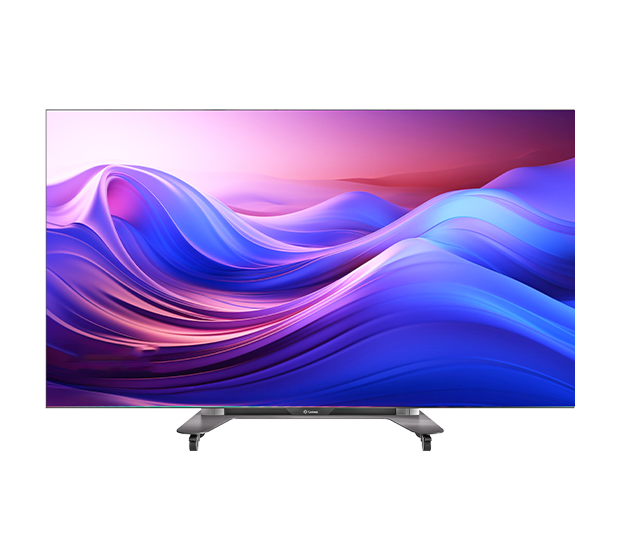

Kings of Neon CTV-FOLDING - Full Automatic | Liftable & Foldable | All-in-one Led Display
CTV Folding Series is an All-in-One Direct View LED display solutions features with folding and liftable design, with advanced pre-assembled and pre-calibrated technology, CTV Folding Series is totally plug and play type. the whole package size can fit well for eleventor, so what you are doing is take out from flightcase and power on it ,then it works. which deliver high impact picture also greatly imporve your setup
The available TV size is 135inch with 1.56mm, support SMD and GOB technology.

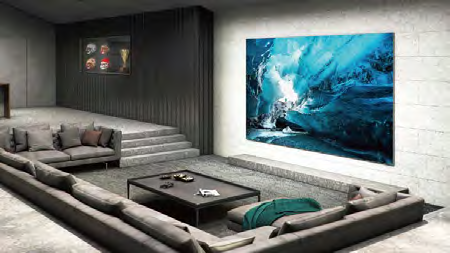

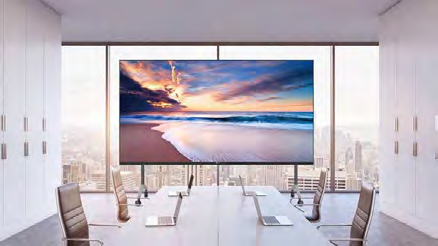

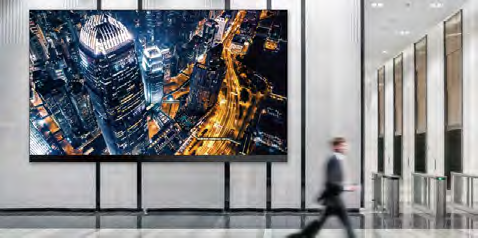

So you can count on CTV FOLDING Series in your high end retail, trade show, education , exhibition hall and more.
Key Features

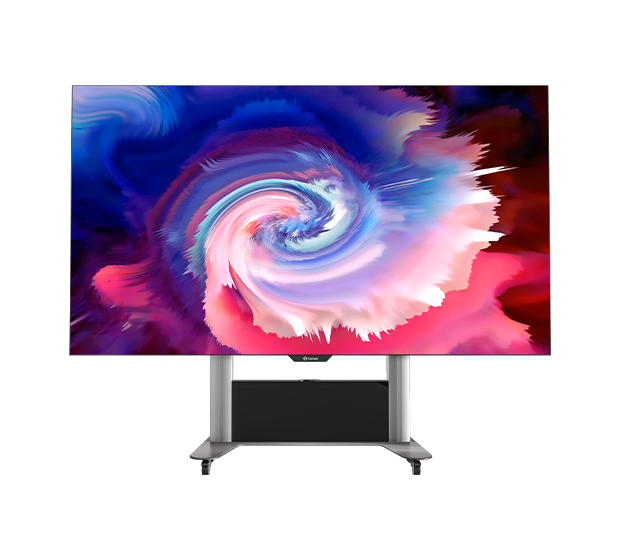

- Wonderful Sight - 2K Resolution:1920*1080 6000:1 High Contrast,Standard 100% bt709 HDR:Display effect close to human eyes

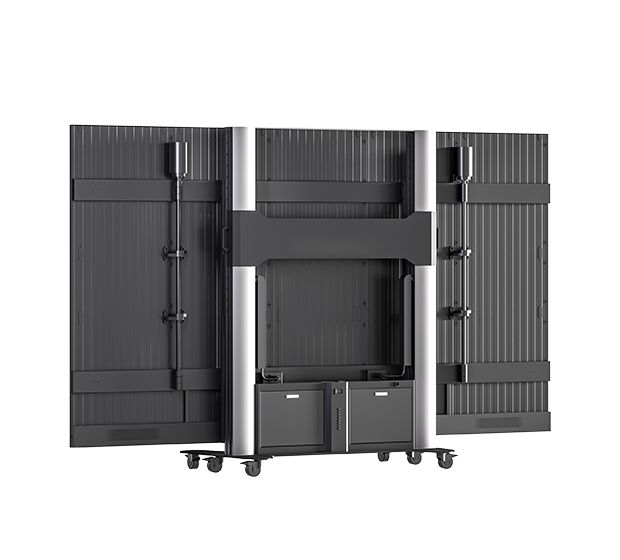

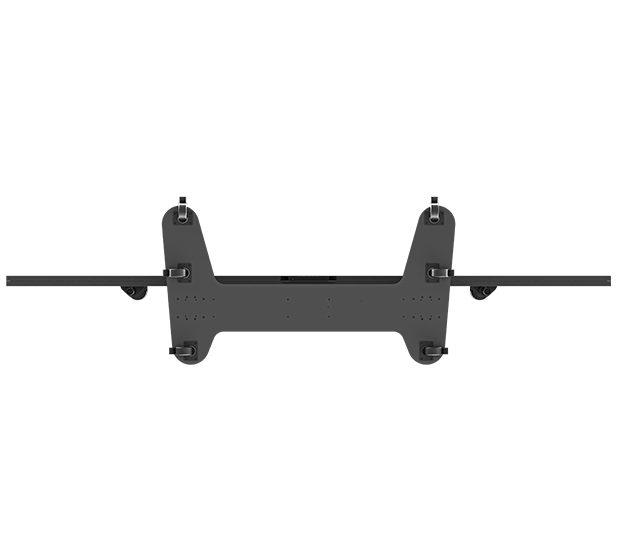

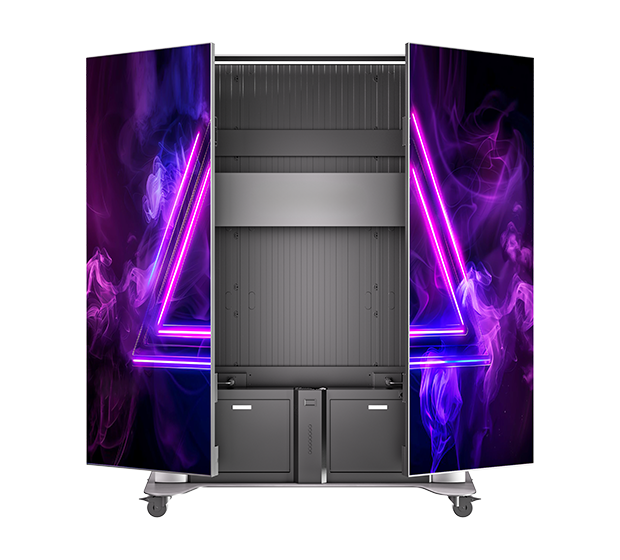

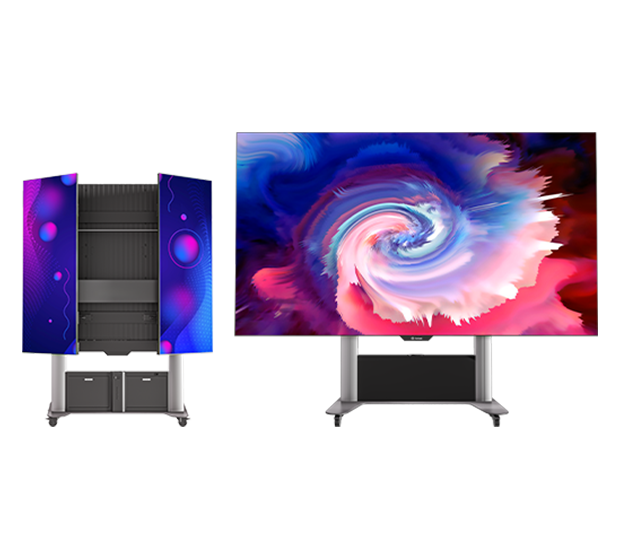

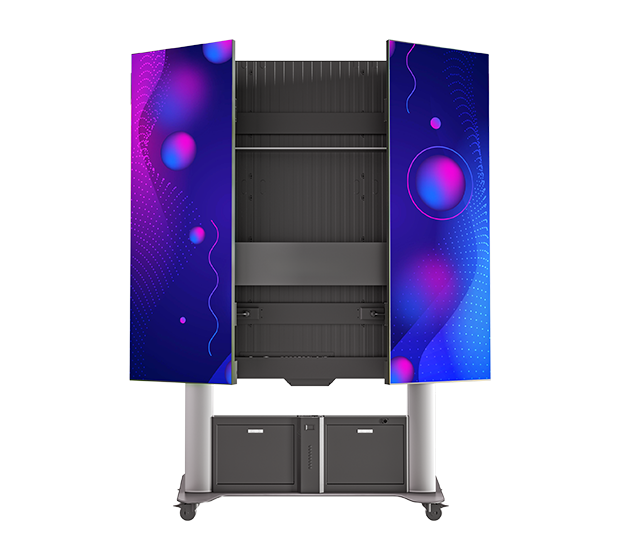

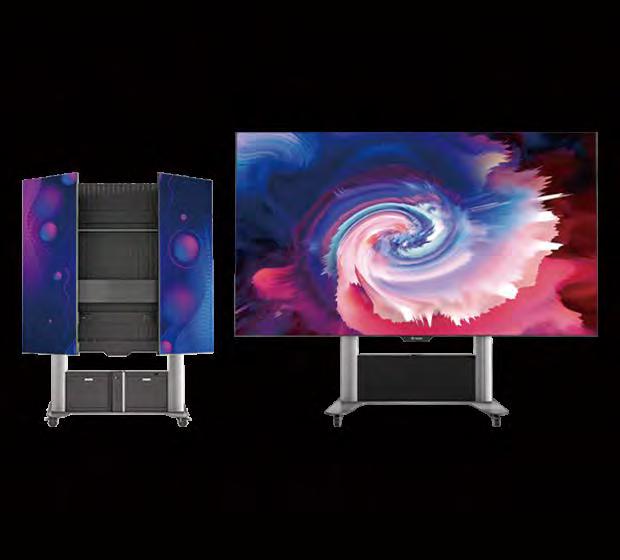

- Automatically Folds Backward, Fully Displays The Picture - The industry's first backward folding technology | protects the screen in all directions The screen has an ultra-thin frame of 5mm, and folding does not affect the screen display.

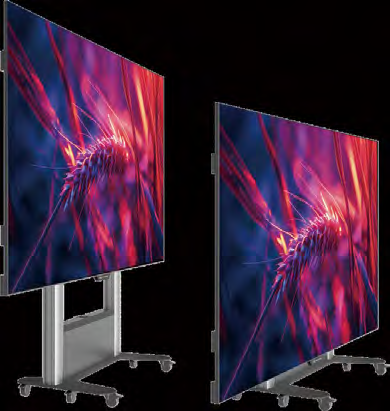

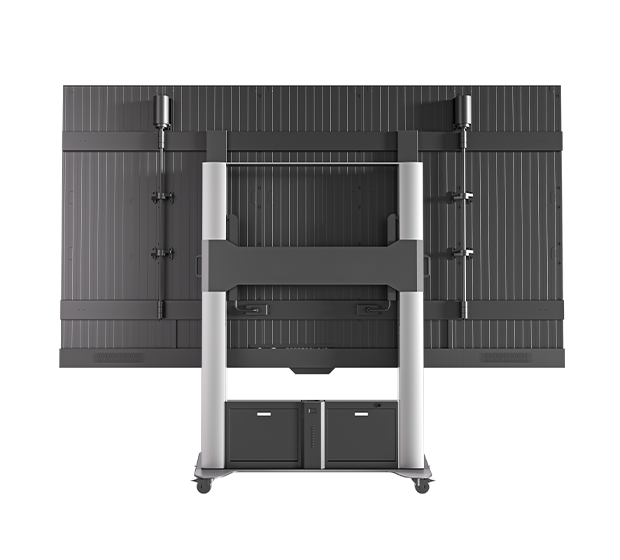

- Liftable and Adjustable Base - The base achieves a free lifting range of 65cm and supports Bluetooth remote control and app. Control panel for lifting operation.
- Stunning Sound System - Built-in 2x20W full-band customized speaker, 82dB high sensitivity, 120Hz cabinet tuning, 20-20kHz ultra-wide frequency, left, right channel, and stereo surround sound
- Convenient Transportation | Zero Installation | Plug and Play - The screen can be folded into the elevator , so there will be zero installation, and just plug and play after unpacking in 2 minutes
- Four-cores surging power - *4 core CPU Cortex A73 *High-performance GPU - G52 *4G Running memory *64G Storage memory

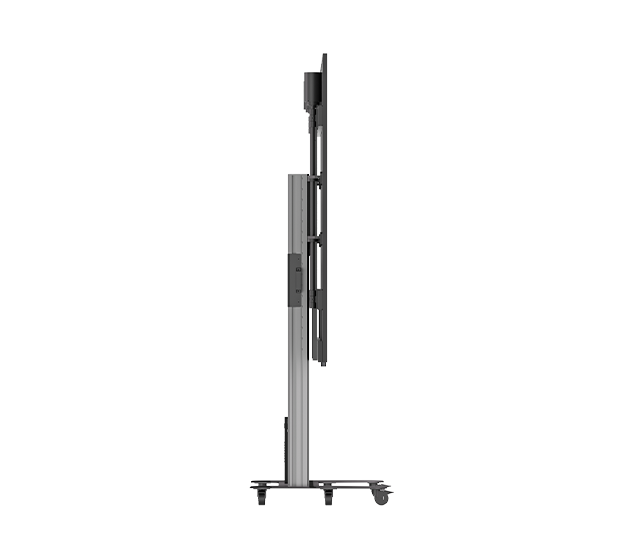

- Super Thin Design - Only 25mm thickness
- Dual Android and Windows (Optional) - Built-in Android 9.0 system, Windows 10 system is optional to run simultaneously, seamless switching, complete and powerful software coverage
- Collision Sensing, Safe Lifting - With collision-sensing function and immediately stops lifting when exposed to an external force to prevent damage.
- Single Line Load - All operations of the all-in-one display can be realized with only one power cord plug
- Multiple Inputs. Realize Splicing Control - Support up to four separate signal inputs

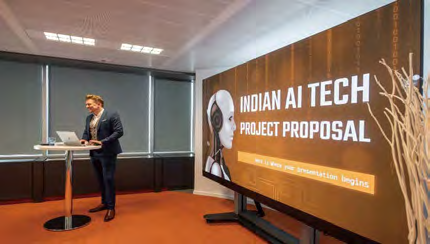

- Efficient Meeting,「Smart」Office - *Built-in video conferencing software *Support external third-party video conferencing terminals *Support external microphones, cameras and other devices
- Transfer Files As Fast As Possible - Support direct Wi-Fi connection with a transmission rate of 250Mbps, which is ten times that of standard Bluetooth
- Intelligent Brightness Adjustment, Eye Protection - Brightness is adjustable at 8 levels with lighter sensor automatically, protect your eyes from the high brightness screen
- Accessories - Lifing Remote Controller Lifting Control Panel Motor Lifting Column Screen Remote Controller Up and Down Controller Maintenance Tool Wireless Projector
Performance Specifications
| Brightness | 100-600NITS |
| Contrast Ratio | 6000:1 |
Technical Specifications
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGE | GOB |
| OPERATING SYSTEM | Android 11.0 |
| PIXEL RESOLUTION ( H X W) | 1920x1080 |
| BRIGHTNESS | 100-600nits |
| REFRESH RATE | 3840Hz |
| DISPLAY SIZE | 135”--3000x1687.5mm ( 118.11x 66.43 inch) |
| CABINET WEIGHT | 320Kgs (705.47lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| VIDEO INTERFACE | HDMIx3(2 in 1 out),USB 3.0x1, USB 2.0x2,RF x1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
Applications
Contact Kings of Neon for expert advice on the CTV-FOLDING for your project. We provide full consultation, installation support, and after-sales service across the UK.
