Kings of Neon FIW Series - CABLE-LESS Indoor LED Video Wall

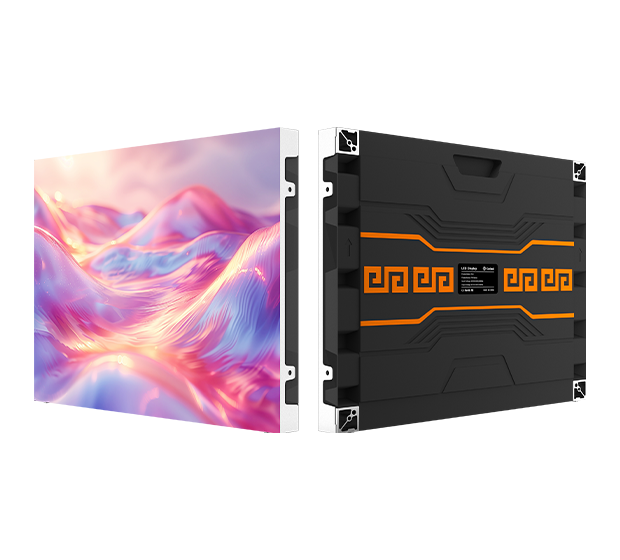

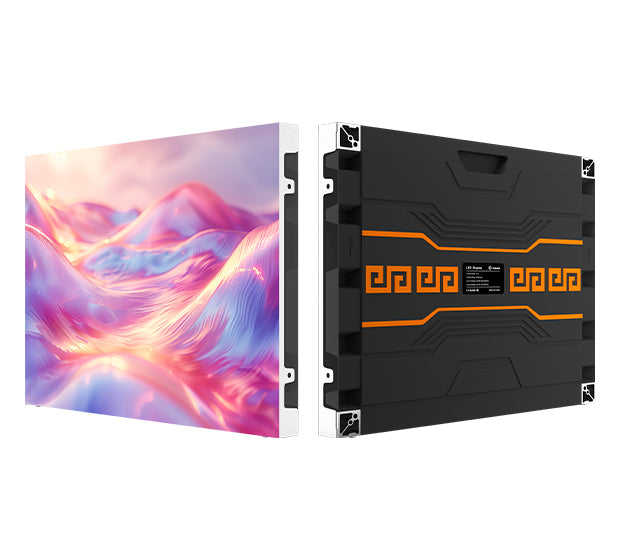

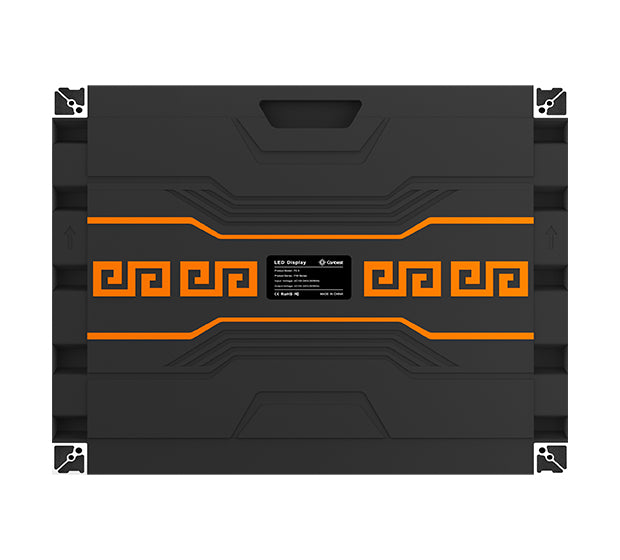

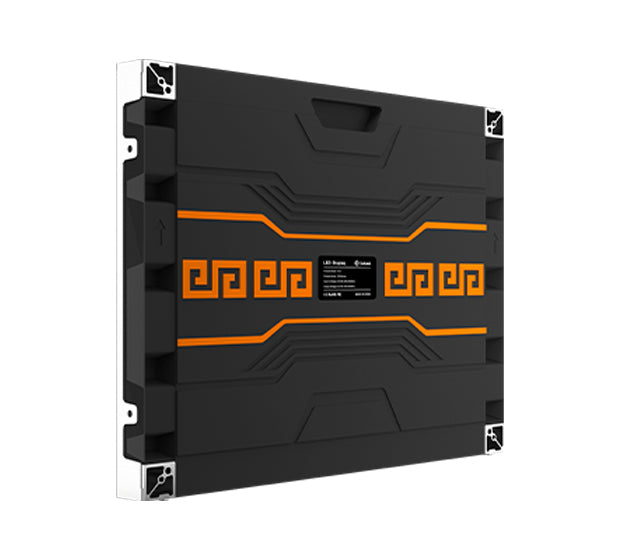

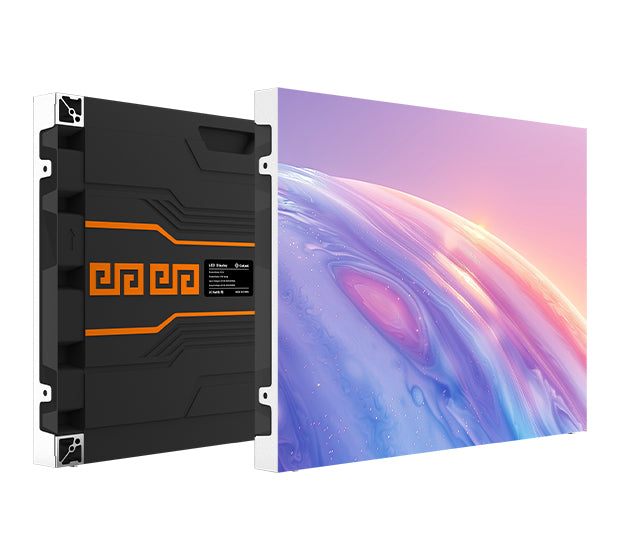

FIW series is our ultra-high-resolution cable-less indoor digital LED display.

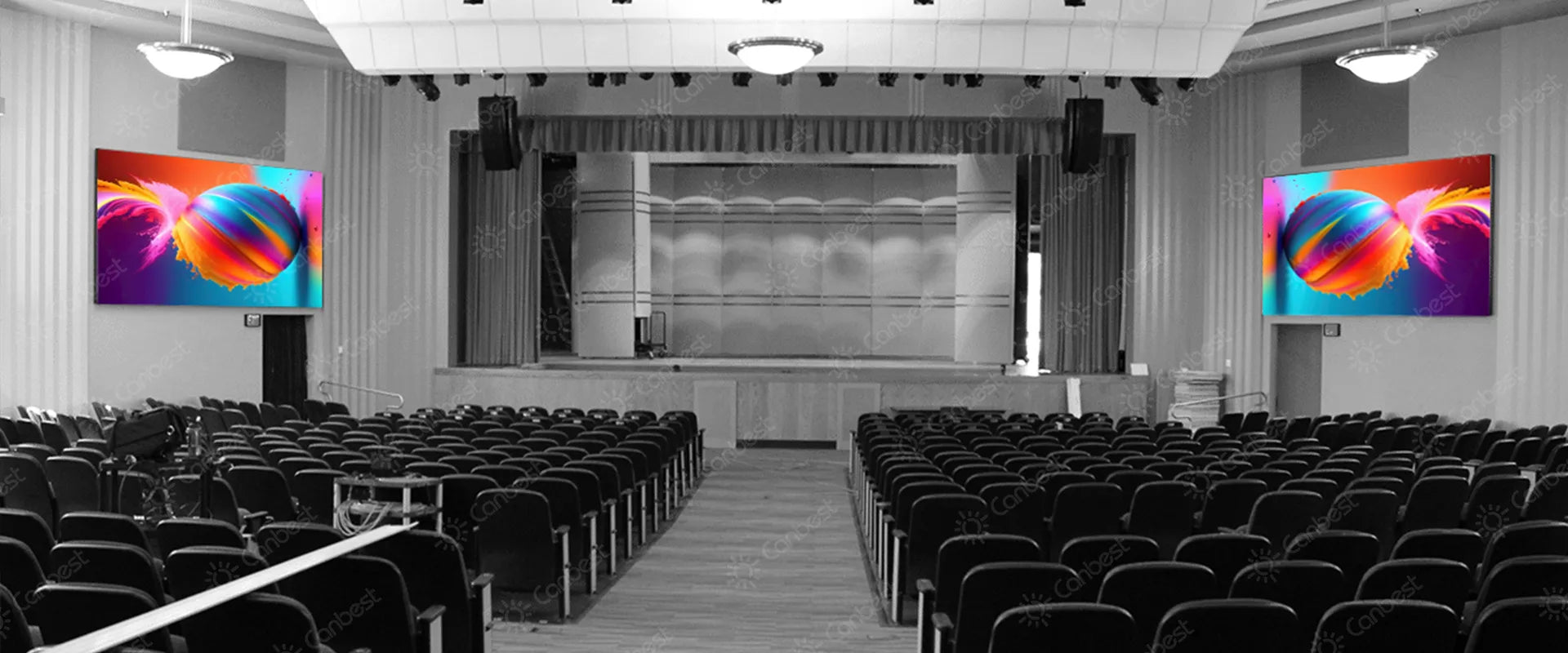

The all-in-one design of FIW series panels offer the perfect solution for any installation requiring ultra-high definition. With a pixel pitch ranging from P1.2 P1.5 P1.8 P2.0, P2.5, configurations of 2K, 4K resolution displays can be achieved with FIW Series. So, it is ideal and affordable for indoor applications such as corporate lobbies, digital art, churches, conference room, retail needs, malls, and much more.
FIW Series offers one-stop purchase with our edge cover and wall mounting system, and it features front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime, with UL certified, they can work globally with worry-free.
With SMD and GOB packaging, FIW Series is ready to transform any indoor space into a captivating visual experience.
Key Features
- All in one Package

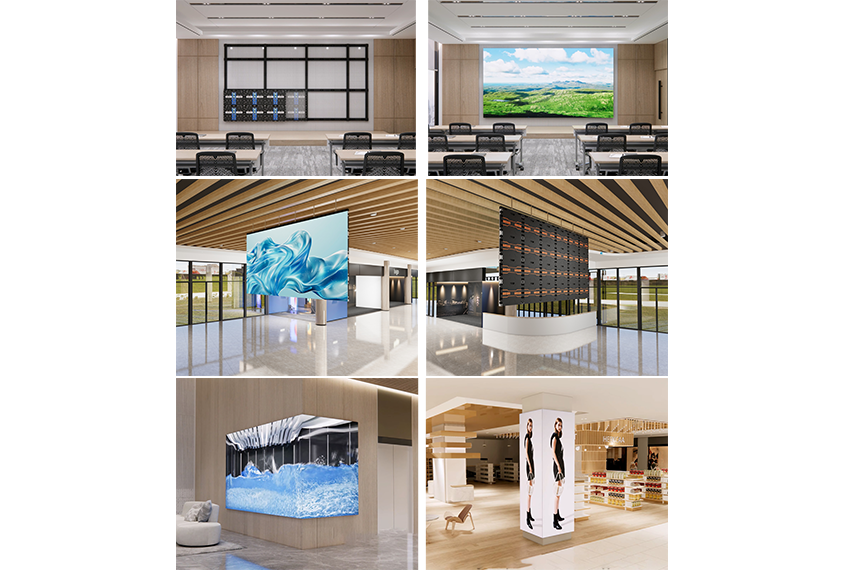

- Creative Installation - Support wall mounted, hanging installation, right-angle installation and some other creative installation.
- GOB Technology Available, Durable & Lasting - GOB technology will make LED Screen waterproof and moisture resistant, high impact resistance, easy maintenance and cleaning. Higher stability with longer lifespan.
- Dust-proof, Moisture-proof, Corrosion-proof - The surface of PCB is painted with three-proofing lacquer, which can form a protective film, dust-proof, moisture-proof, corrosion-proof, and protect PCB from malfunction, prolong its lifespan.
- UL Certificate - UL certificate power supply with input 100~240V，50/60Hz, can work globally with worry-free.
- Protective Mask Design - Embedded mask design, protecting the LEDs from collision, dust-proof, reducing maintenance cost and prolong the lifespan; Higher contrast, reach better display
- Module Cable-less with Front Access - Module, receiving cards and power supplies can be maintained front, no maintenance channels needed ；Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable.
- Accessories - Wall Mounted Structure Stacking Structure With Cuved Installation Mobile Stacking Installation Structure with Wheels Control System Power Distribution Cabinet Edge Cover
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 256x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 512x384dots |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x480mm ( 25.19x18.89 inch) |
| CABINET WEIGHT | 7.4Kgs ( 16.31 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.538mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 208x104dots |
| CABINET PIXEL RESOLUTION ( H X W) | 416x312dots |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x480mm ( 25.19x18.89 inch) |
| CABINET WEIGHT | 7.4Kgs ( 16.31 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.86mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 172x86dots |
| CABINET PIXEL RESOLUTION ( H X W) | 344x258dots |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x480mm ( 25.19x18.89 inch) |
| CABINET WEIGHT | 7.4Kgs ( 16.31 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.0mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 160x80dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x240dots |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x480mm ( 25.19x18.89 inch) |
| CABINET WEIGHT | 7.4Kgs ( 16.31 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.5mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 128x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 256x192dots |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x480mm ( 25.19x18.89 inch) |
| CABINET WEIGHT | 7.4Kgs ( 16.31 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
Applications
Contact Kings of Neon for expert advice on the FIW Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
