Kings of Neon FL Series - Shape Your own Screen

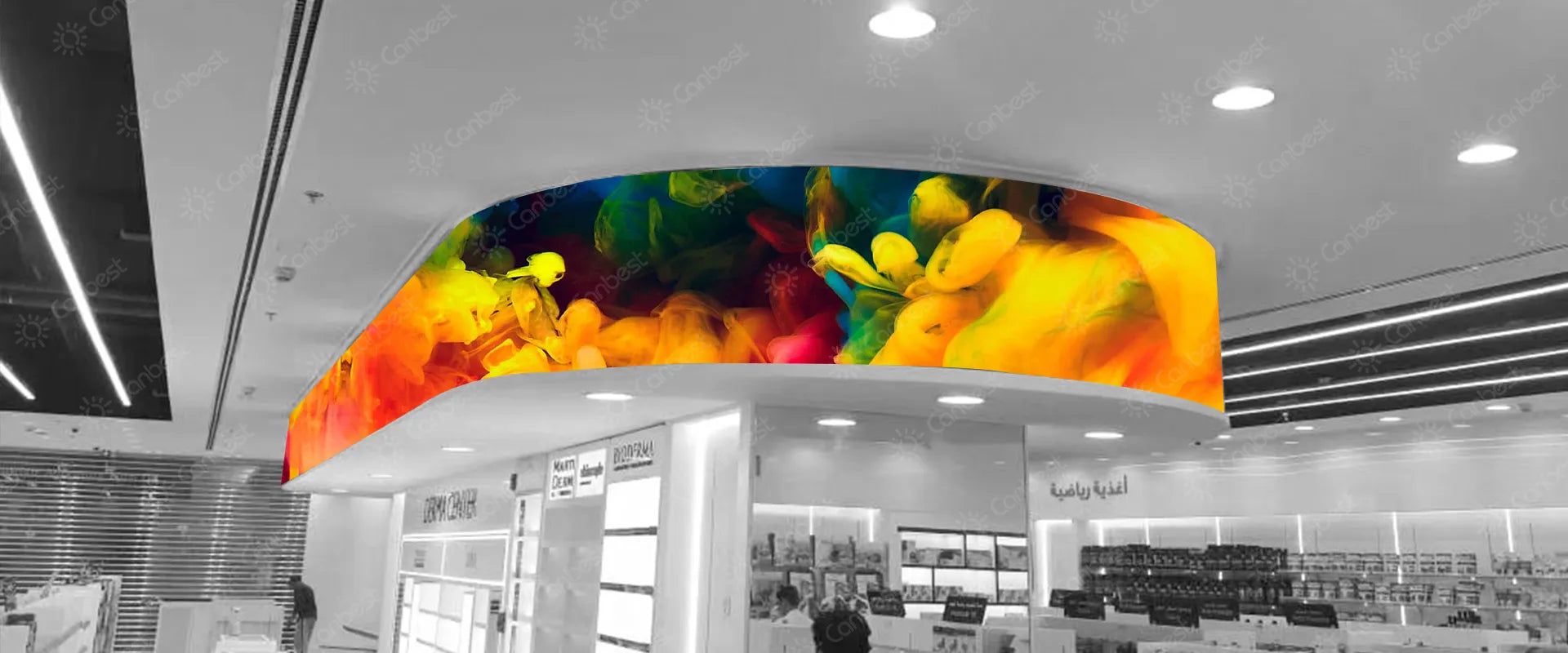

The FL Series Flexible LED screen is a highly versatile and customizable display solution that offers endless possibilities in terms of shape and size. It supports various creative designs and installations, such as column or cylindrical installation, tunnel type, tree or trumpet type, ribbon type with single sided or double sided, spiral type, sphere type and CAN type

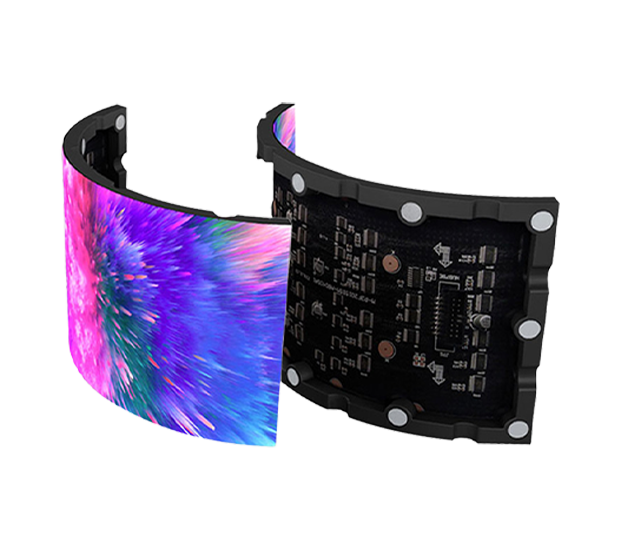

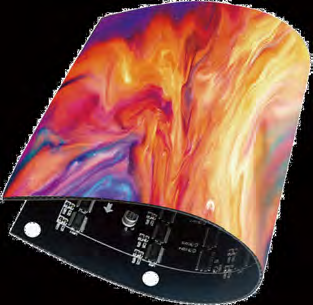

thanks to its flexible and bendable structure, which features special soft but durable PCBs, which are highly flexible and allow you to create convex and concave curved displays, which can be fitted to metal frames via integral magnets in each module. This makes it an ideal choice for unique and complex display requirements. They are widely used for tv studio, museum, tradeshow, exhibition hall, bar, shopping malls, casinos, hotels, architectural and theme parks. Perfect for creating eye-catching and dynamic displays that enhance the immersive visually stunning experience
From design to installation, we can make your imagination into a reality.
Get creative with our FL series! A perfect solution for constructing seamless original LED displays with the unique ability to adapt to different structures and environments.
Key Features

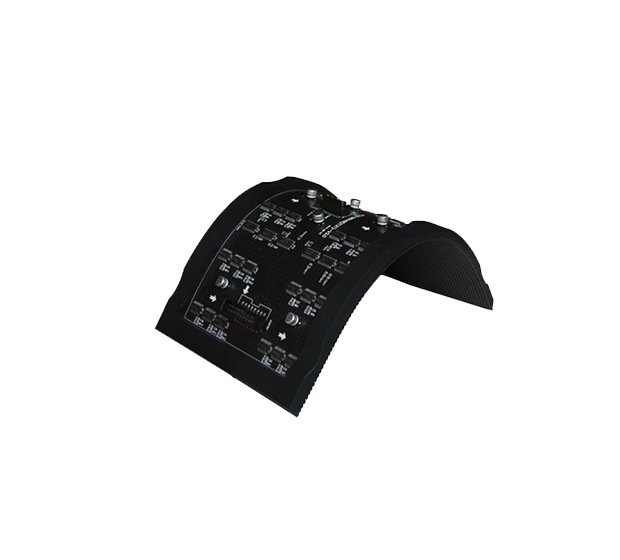

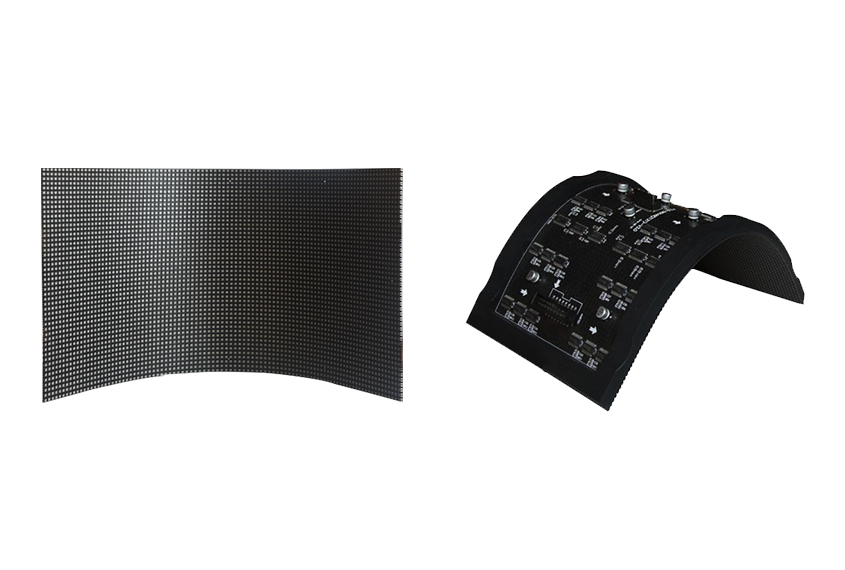

- Highly Flexible with Concave & Convex Curves

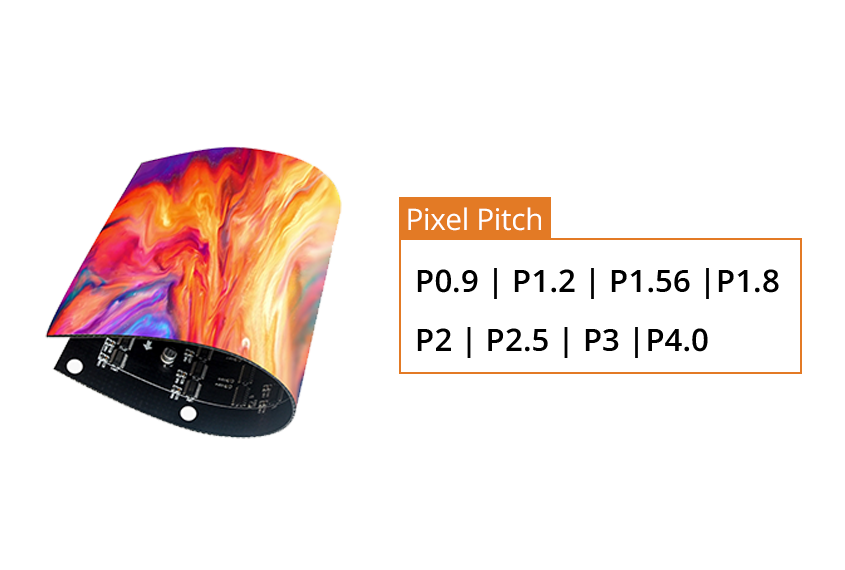

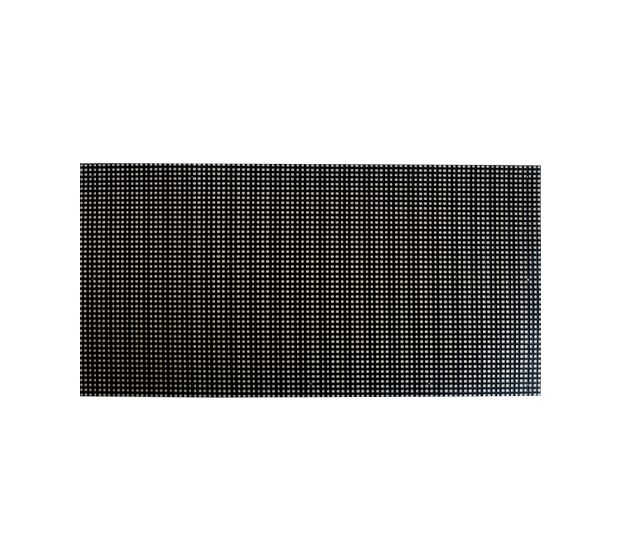

- High Resolution Modules - A wide range of pitch options allows for high resolution video playback as well as creative architectural displays.

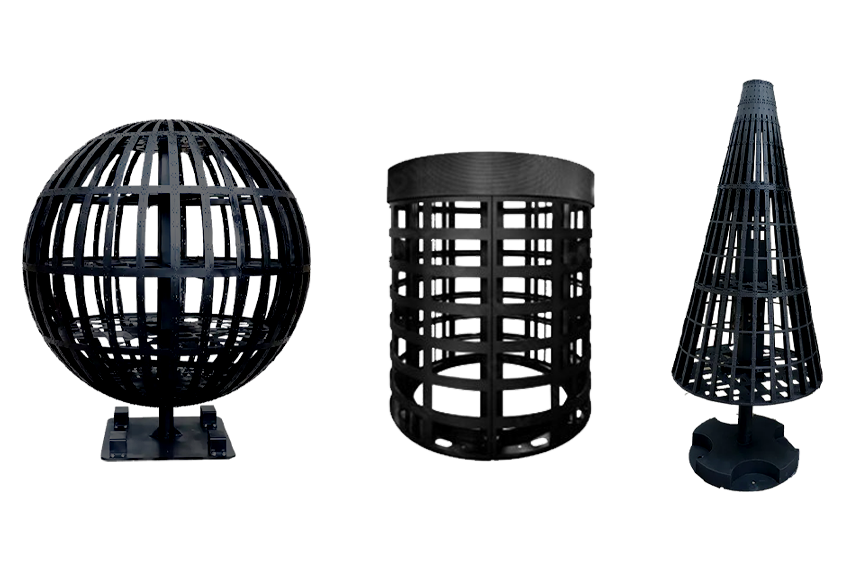

- Custom Frames - our FL led tiles can be attached to virtually any surface via magnets, the specific framing structure is designed and manufactured to accomplish your unique design and shape

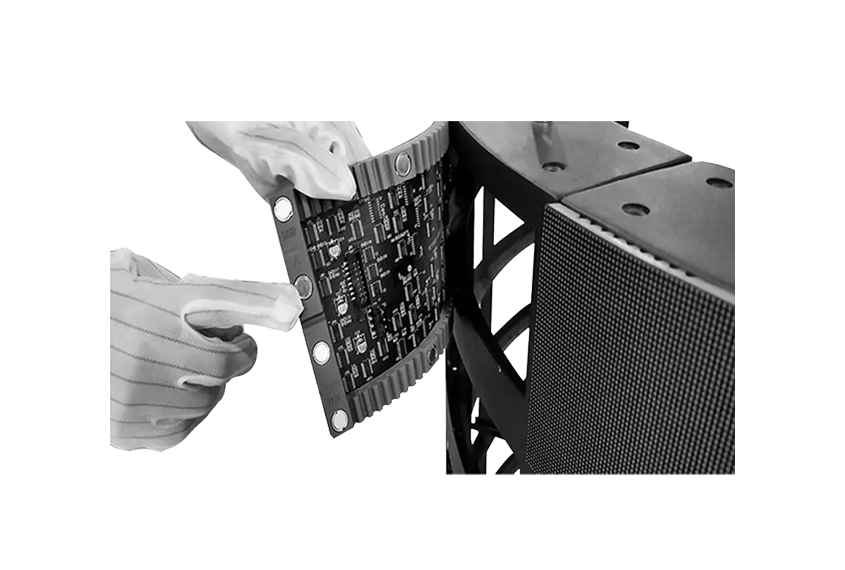

- Advanced Magnetic Connection System - Magnetic mounts, along with set screw ports, allow for attachment to virtually any metal surface or LED video design.

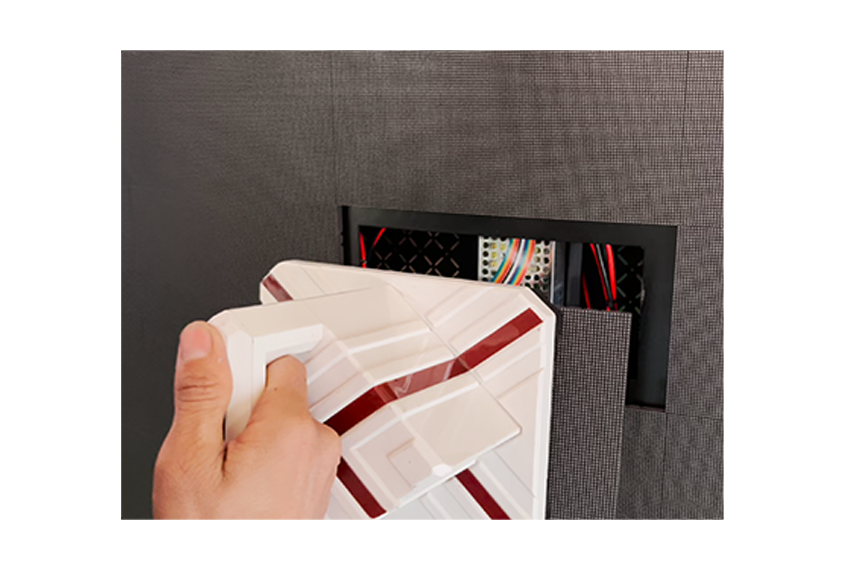

- Easy Front Maintenance - Single module replacement made easy, improving serviceability in the field.

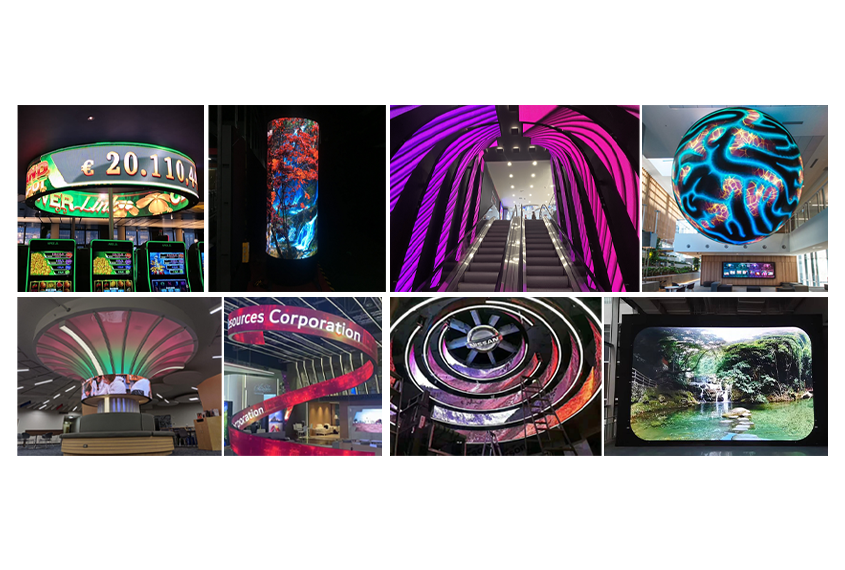

- Creative Configurations - Creating angles, curves, cylindrical and seamless designs will be easy with FL Series Flexible led displays
- Accessories - Flat Wall Mounted Support Bracket Curved Wall Mounted Support Bracket Curved Stacking Installation Support Bracket Edge Cover Power Contribution Cabinet Control System
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000：1 |
Technical Specifications
| PIXEL PITCH | 0.9375mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 256x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| MODULE WEIGHT | 0.12Kgs ( 0.26 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~+40℃ |
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 256x128dots | 192x96dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| MODULE WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.56mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 204x102dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| CABINET WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.8mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 172x86dots | 128x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| CABINET WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.0mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 160x80dots | 120x60dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| CABINET WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.5mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 128x64dots | 96x48dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| MODULE WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~+40℃ |
| PIXEL PITCH | 3.0mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 104x52dots | 80x40dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| MODULE WEIGHT | 0.3Kgs ( 0.66 lbs) | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~+40℃ |
| PIXEL PITCH | 4mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 60x30dots |
| CABINET PIXEL RESOLUTION ( H X W) | Customized |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | Customized |
| MODULE WEIGHT | 0.17Kgs ( 0.37lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~+40℃ |

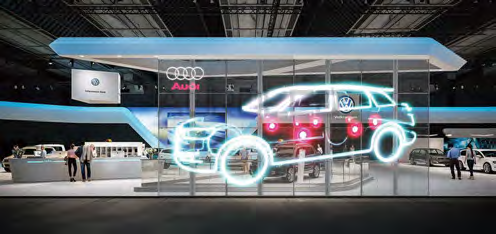

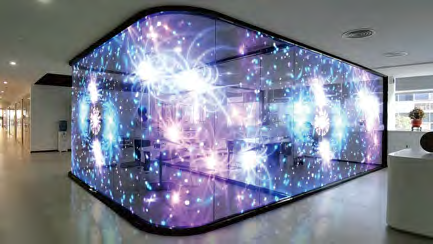

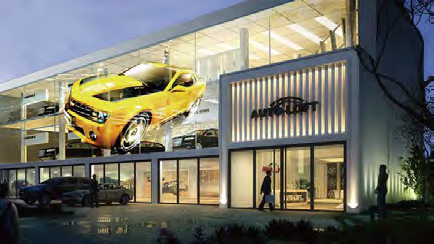

Applications
Contact Kings of Neon for expert advice on the FL Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
