Kings of Neon FO Series - FRONT SERVICE Outdoor LED Display

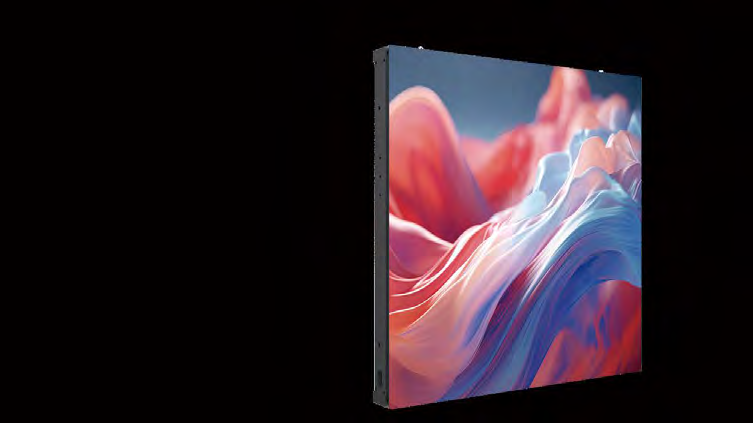

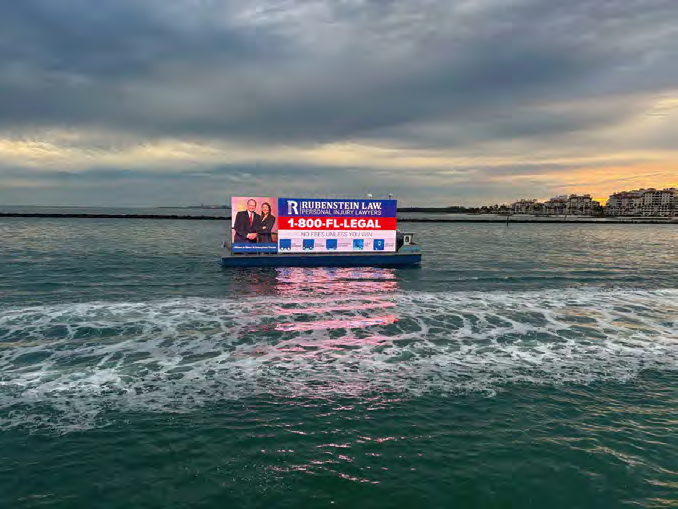

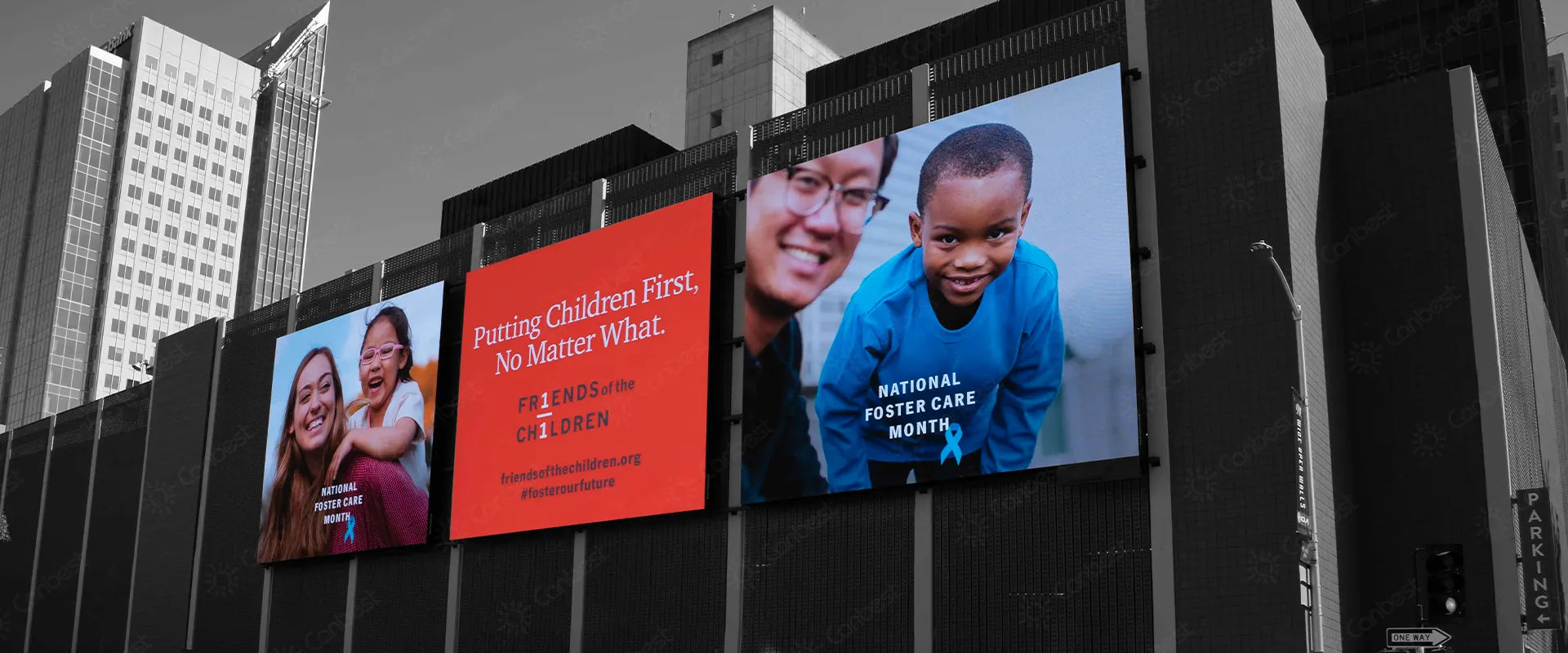

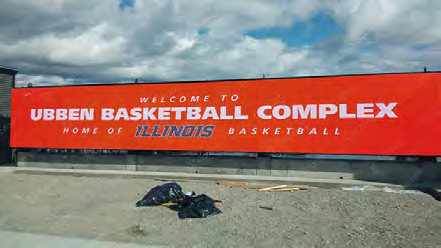

FO Series is an outdoor advertising and permanent installation LED display, pixel pitch range available from p4 to p10. With a robust full aluminum frame, the FO series panels are more durable and stronger than traditional cabinets, it is the perfect solution for large scale digital billboards, amenity decks, sports stadium, shopping mall ,parks, building- mounted displays, and outdoor retail spaces.,
The FO Series provides front or rear installation and service, making it the perfect choice for fixed installations in any environment. They are designed to withstand harsh environmental factors such as direct daylight, varying temperatures, constant vibrations and severe weather conditions.
Our panels deliver exceptional image quality and reliability, High brightness, high refresh rate and excellent contrast ratio makes these panels ideal for applications in any environment and light condition.
THE available pixel pitch is P4.4 P5 P6 P8 P10
Key Features

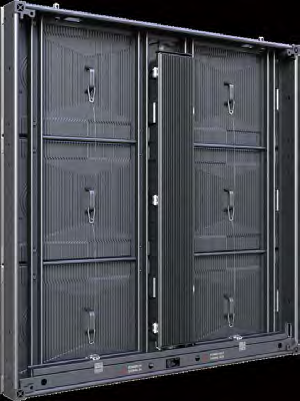

- Lighter and Thinner Design - Die casting aluminum profile, lighter and thinner, can’t get deformed easily ; Can attach to the wall directly without more structure, cost-saving and super tidy
- Security Cable Design - Protect module from falling down when doing maintenance.

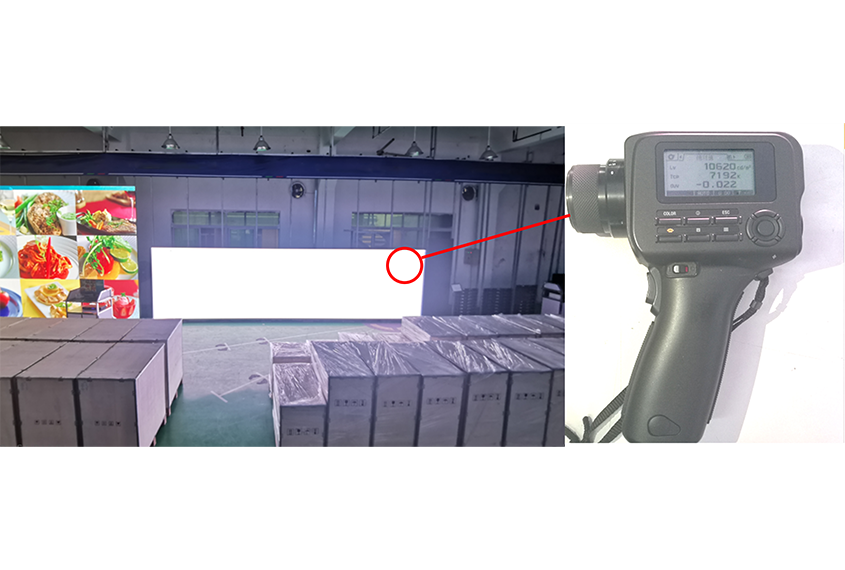

- High Brightness - The brightness reaches up to 10000nits, can instantly captivate attention & deliver content even under strong light .
- Hidden Cable Box Design - High density silicone cables, high & low temperature resistance, and excellent electrical insulation; Protect the cables from damage caused by animals , bring down the possibility of maintenance.

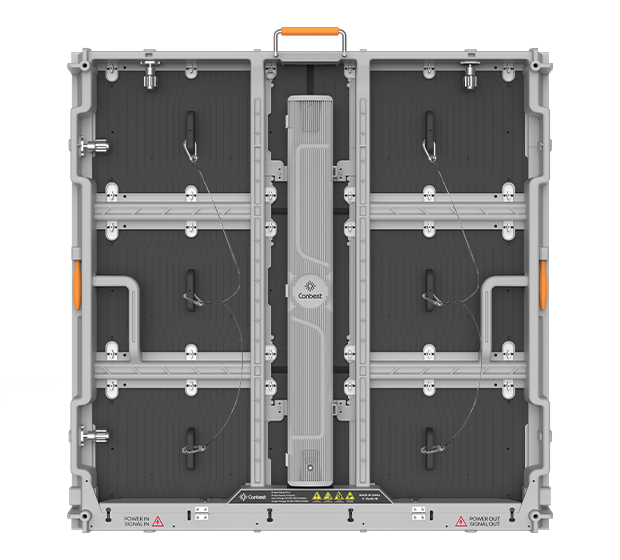

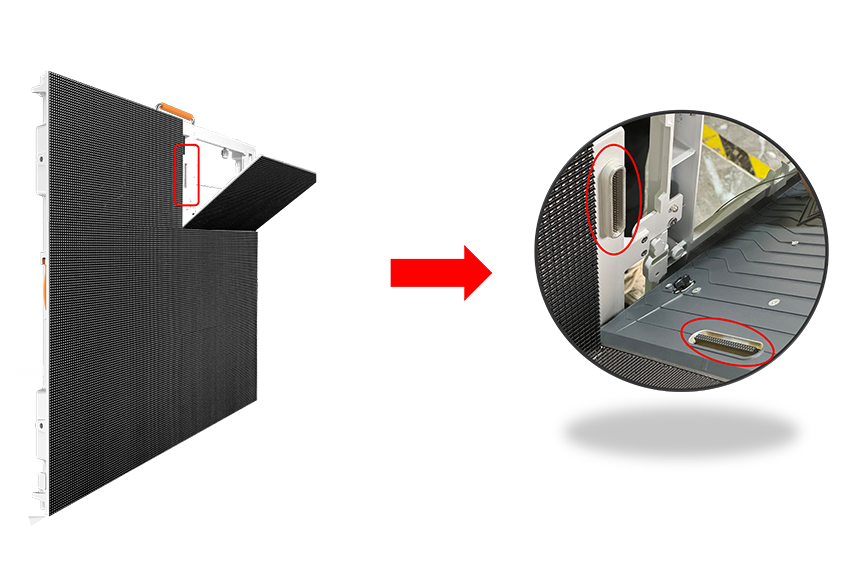

- Cable Less Design - Decreasing the possibility of failure caused by cables, also make whole screen tidy and elegant appearance

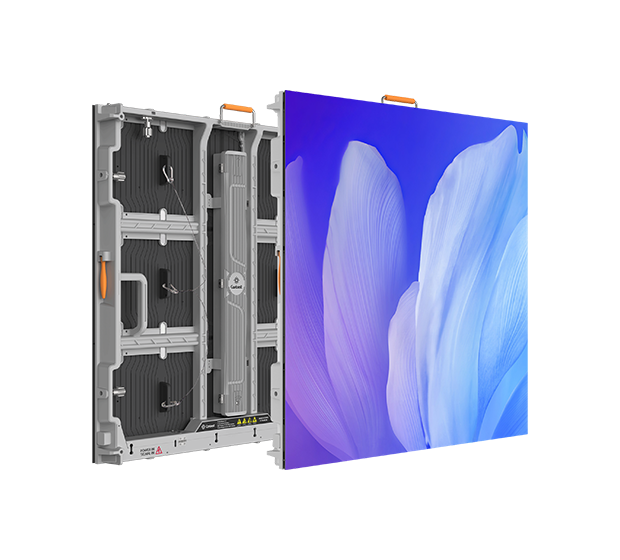

- Front and Rear Service - Easy and simple operation, save maintenance time and cost

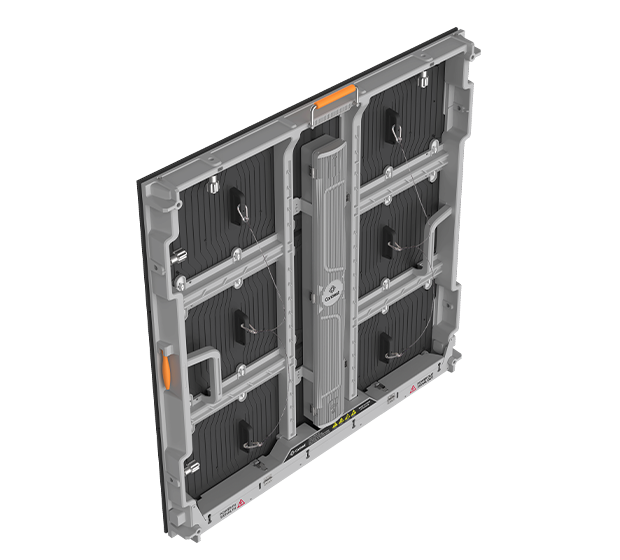

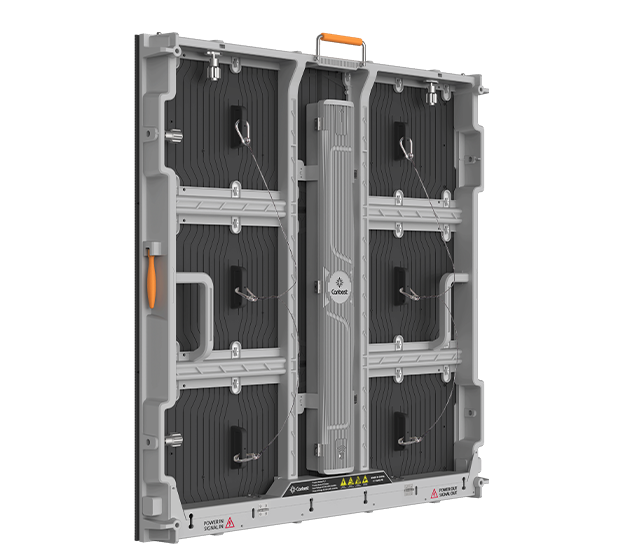

- Fan-less Design , Good Heat Dissipation - All aluminum bottom shell products, higher heat dissipation efficiency.
- Curved Splicing - Customized independent curved panels, ideal for 3d giant digital billboard solution.
- IP66 Protection Level
- Super Safe - Fire Resistant Design - No deformation or damage to our aluminum module after burning for several minutes.
- Accessories - Wall Mounted Structure for Front Service Wall Mounted Structure for Rear Service Wall Mounted Structure for Naked-Eye Solution Roof Mounted Structure V Shape LED Structure with Pole Single Sided and Double Sided Structure with Pole
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 5500-9000nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160°/160° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 4.4mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 109x72dots |
| CABINET PIXEL RESOLUTION ( H X W) | 218x218dots |
| BRIGHTNESS | 5500~7500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 24.5Kgs ( 54.01 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 5.7mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 84x56dots |
| CABINET PIXEL RESOLUTION ( H X W) | 168x168dots |
| BRIGHTNESS | 5500~7500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 24.5Kgs ( 54.01 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 6.67mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 72x48dots |
| BRIGHTNESS | 6000~10000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 24.5Kgs ( 54.01 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 8mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 60x40dots |
| CABINET PIXEL RESOLUTION ( H X W) | 120x120dots |
| CABINET SIZE | 960x960mm ( 37.79x37.79 Inch) |
| CABINET WEIGHT | 24.5Kgs ( 54.01 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 10mm |
| MODULE PIXEL RESOLUTION ( H X W) | 48x32dots |
| CABINET PIXEL RESOLUTION ( H X W) | 96x96dots |
| BRIGHTNESS | 6000~10000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 Inch) |
| CABINET WEIGHT | 24.5Kgs ( 54.01 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP66 |
| CONTRAST RATIO | 5000：1 |

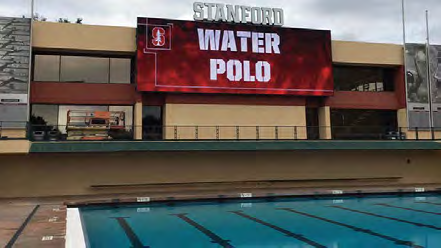

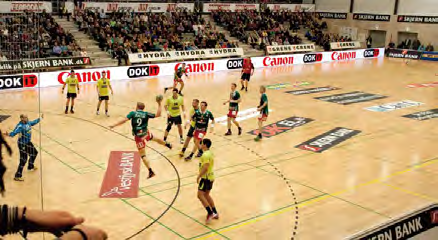

Applications
Contact Kings of Neon for expert advice on the FO Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
