Kings of Neon FOT Series - Customized Advertising Permanent Outdoor LED Screen

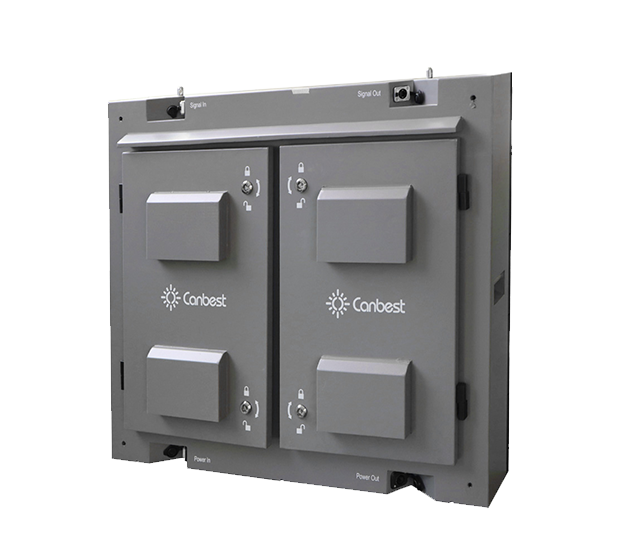

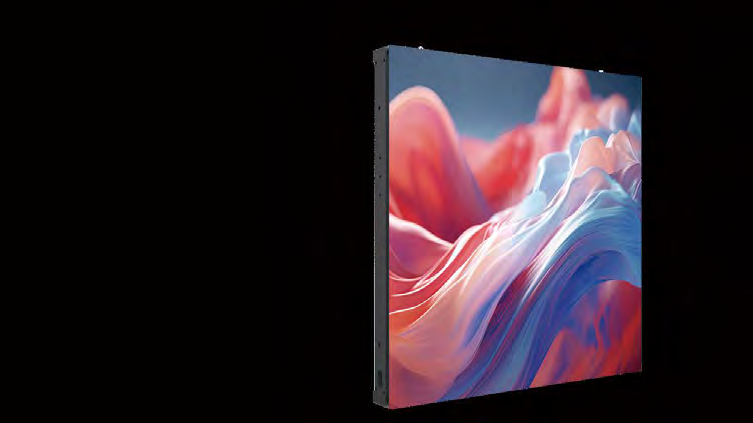

The FOT Series outdoor fixed LED display is engineered to deliver reliable performance in a variety of outdoor settings, making it a prime choice for whom seeking cost-effective solutions. Offering pixel pitches from P2.5 to P10, this series covers diverse viewing needs, ensuring flexibility for different types of outdoor projects. Its robust iron cabinet, with a standard size of 960x960mm, enhances the display’s durability, making it well-suited for challenging environments where long-term usage is essential.
What sets the FOT Series apart is its customizable size options, allowing to offer tailor-made solutions that align with client specifications. This feature enhances its marketability, making it an adaptable option for diverse outdoor applications. The integrated design streamlines installation, while rear maintenance access simplifies servicing, reducing downtime and maintenance costs.
The display boasts an IP65 waterproof rating, ensuring high resistance to dust, water, and weather-related wear and tear. This rugged reliability means fewer replacements and service calls, providing distributors with a durable product that minimizes total ownership costs for their clients. Combining high performance with affordability, the FOT Series is an excellent option for outdoor advertising, event screens, and public information displays, helping resellers provide superior solutions at competitive prices.
Ultimately, the FOT Series delivers strong value, making it a go-to solution for those seeking outdoor LED displays that balance performance, durability, and cost-effectiveness.
Key Features

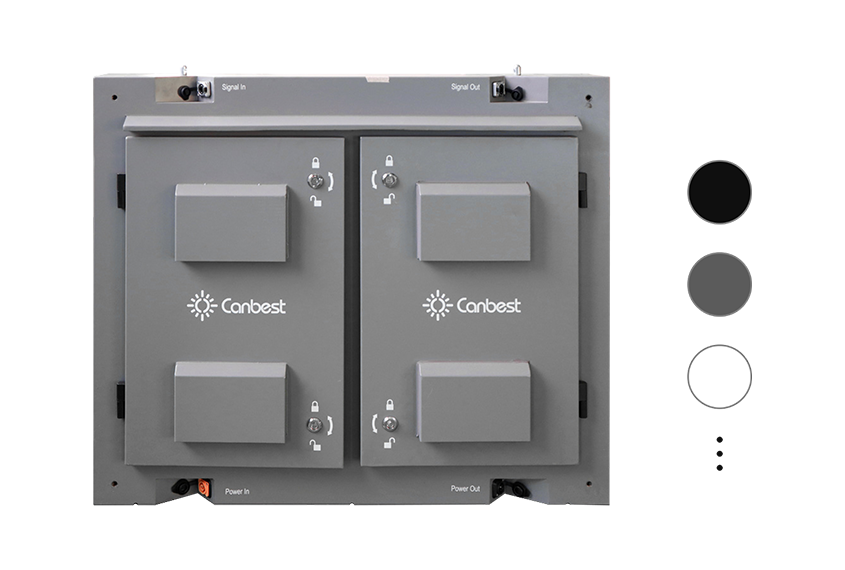

- Custom Colors - Personalized customization, multiple colors can be selected
- High Protection Level - Rear access led cabinets with screws fixed led modules to ensure the high protection level to be IP68; Automotive grade waterproof rubber ring makes the cabinets double protected
- Consumer Grade Power and Signal Connector Design - Aviation plug, more stable and convenience; More safer than traditional electrical connectors

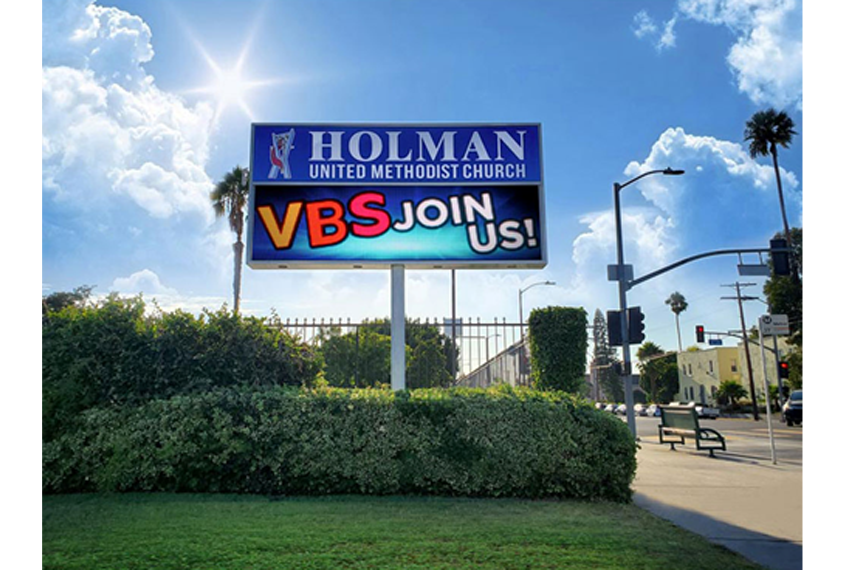

- High Brightness - 5500-7500 nits; It will display a sharp image even facing the Sunlight

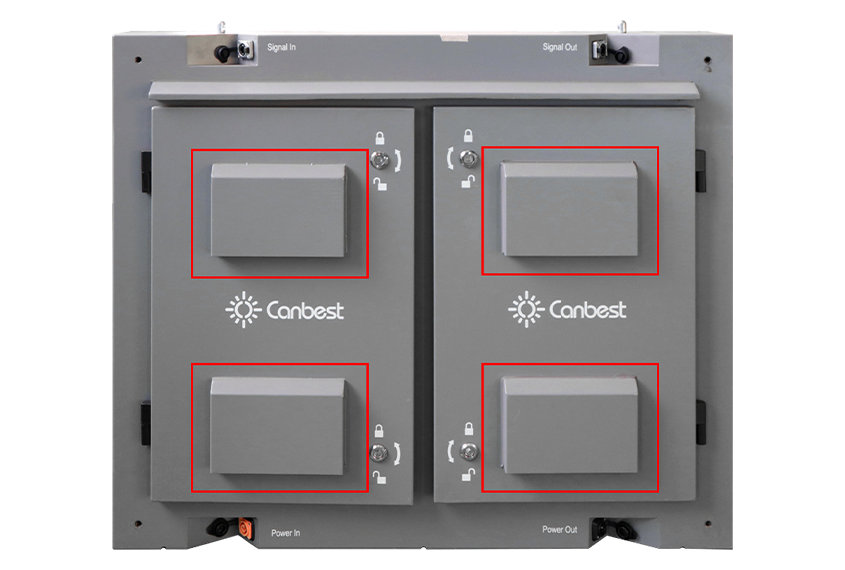

- Super Good Heat Dissipation - There are four cooling fans inside the cabinet, which can quickly reduce the temperature of the display and extend the life of the display
- Accessories - Wall Mounted Structure for Rear Service Roof Mounted Structure V Shape LED Structure with Pole Single Sided and Double Sided Structure with Pole Video Processor Power Distribution Cabinet
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 1000-4500nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160°/160° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 2.5mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 128x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 384x384dots |
| BRIGHTNESS | 5500~7500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 35Kgs ( 77.16 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 3.076mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 104x52dots |
| CABINET PIXEL RESOLUTION ( H X W) | 312x312dots |
| BRIGHTNESS | 5500~7500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 35Kgs ( 77.16 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 4mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 80x40dots |
| BRIGHTNESS | 4500~5500nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 35Kgs ( 77.16 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 5mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 64x32dots |
| CABINET PIXEL RESOLUTION ( H X W) | 192x192dots |
| BRIGHTNESS | 6000~10000nits |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 38Kgs ( 83.77 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 6mm |
| MODULE PIXEL RESOLUTION ( H X W) | 32x32dots |
| CABINET PIXEL RESOLUTION ( H X W) | 160x160dots |
| BRIGHTNESS | 6000~10000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 38Kgs ( 83.77 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~ +40℃ |
| PIXEL PITCH | 8mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 40x20dots |
| CABINET PIXEL RESOLUTION ( H X W) | 120x120dots |
| BRIGHTNESS | 6000~10000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79 inch) |
| CABINET WEIGHT | 38Kgs ( 83.77 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃ ~ +40℃ |

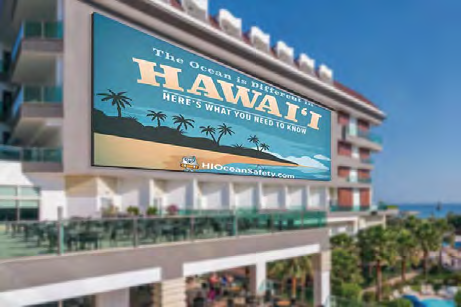

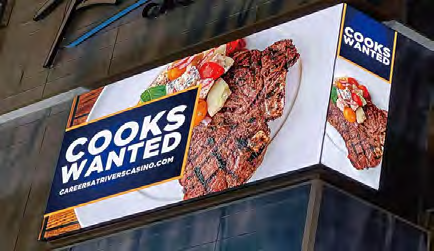

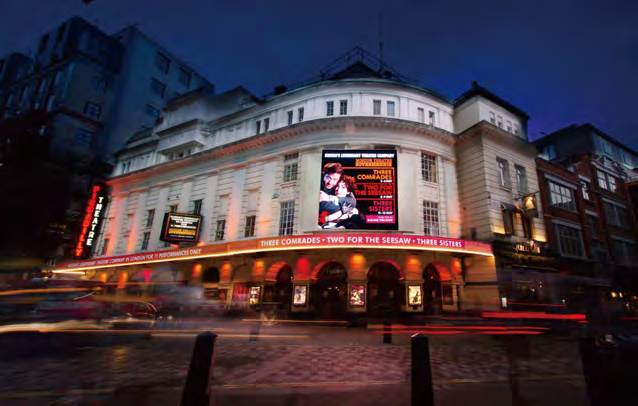

Applications
Contact Kings of Neon for expert advice on the FOT Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
