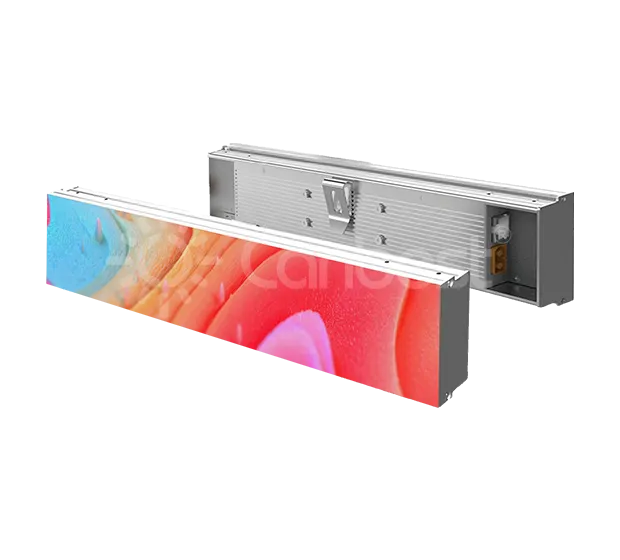

Kings of Neon H Series - Digital Retail LED Shelf Display

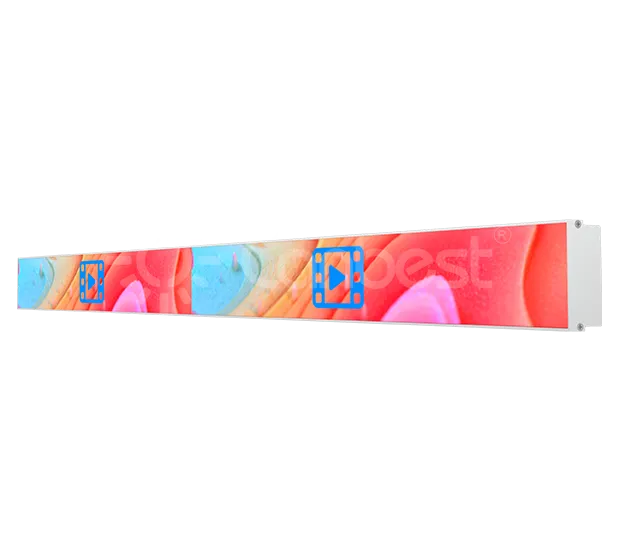

Smart Shelf LED Display – Seamless, Dynamic, and Retail-Ready

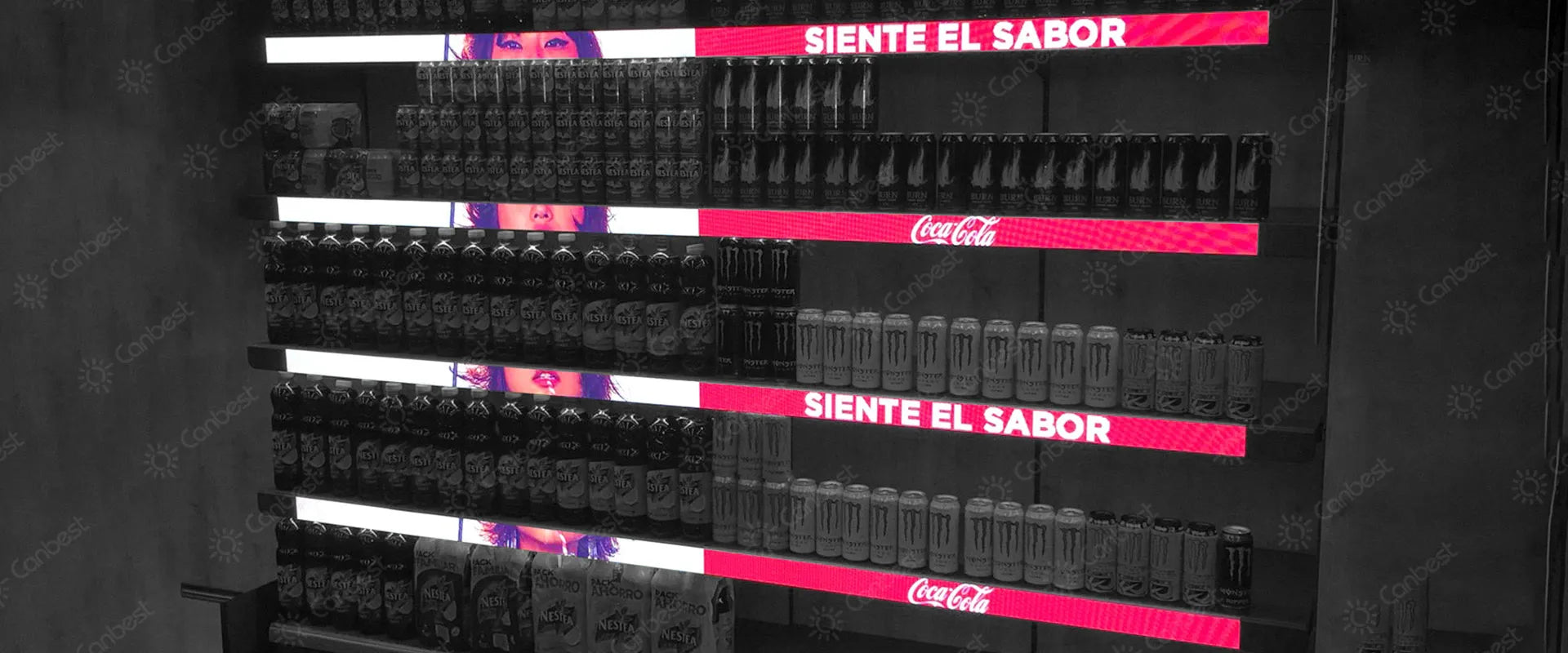

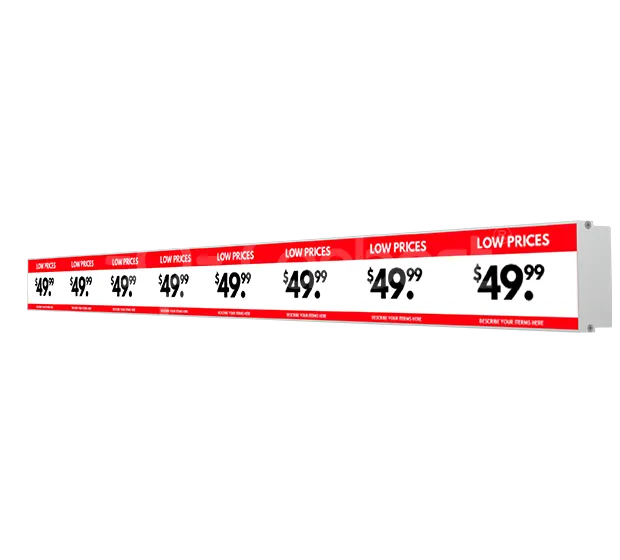

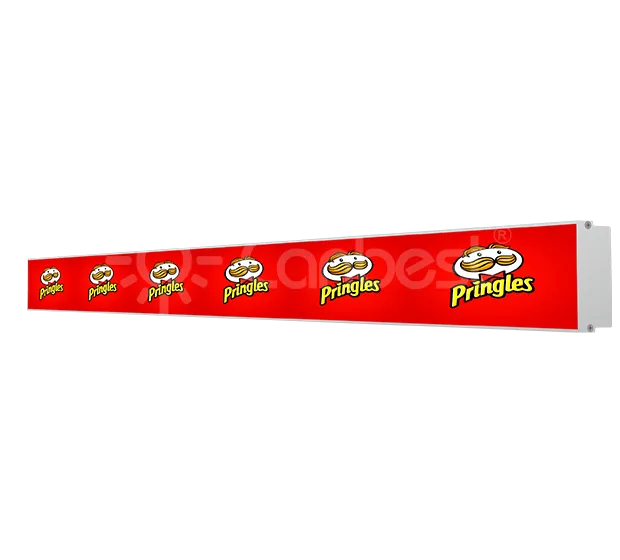

The Smart Shelf LED Display is a next-generation signage solution designed to boost in-store engagement by displaying dynamic content—such as prices, promotions, logos, and videos—directly at the shelf edge.
Available in 300mm, 600mm, 900mm, and 1200mm, it easily adapts to various retail layouts. Its modular design enables seamless splicing of multiple units, creating a smooth, uninterrupted visual experience.
Built with COB (Chip-on-Board) technology, it offers high brightness, efficient heat dissipation, and enhanced durability—perfect for high-traffic retail spaces.
Thanks to a back buckle design, installation and removal are quick and tool-free, with no damage to the shelf—ideal for frequently changing displays.
Content can be updated effortlessly via 4G, WiFi, USB, or LAN, and managed remotely through an intelligent cloud cluster system, making it scalable for multi-location use.
Operating at 24V DC, it’s safe, low-voltage, and energy-efficient, reducing both heat and power consumption. The P1.25 fine pixel pitch ensures crystal-clear visuals, even at close range.

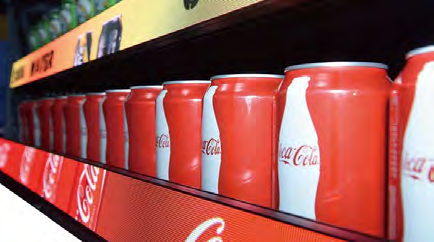

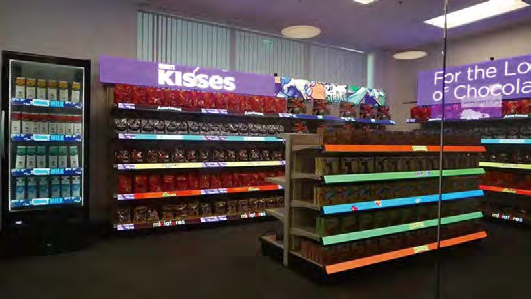

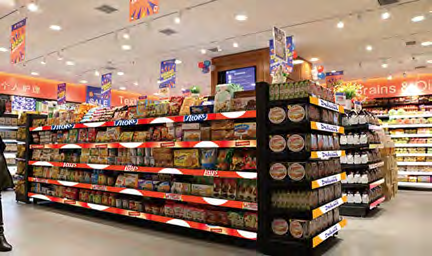

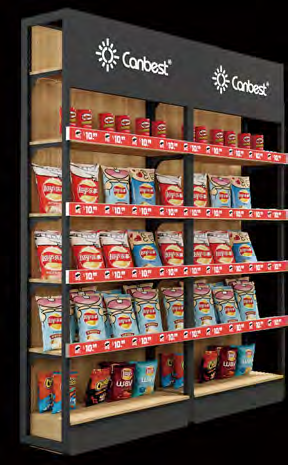

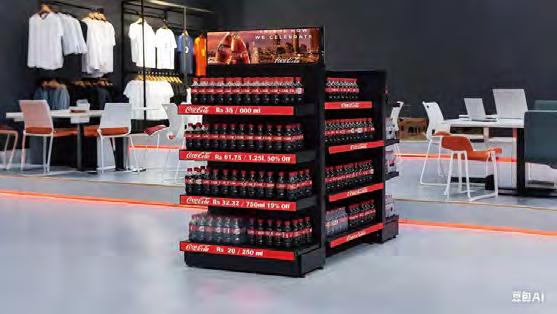

Ideal for supermarkets, cosmetics counters, electronics retailers, convenience stores, and any modern retail setup seeking to enhance product visibility and customer engagement with smart shelf-edge displays.
Key Features

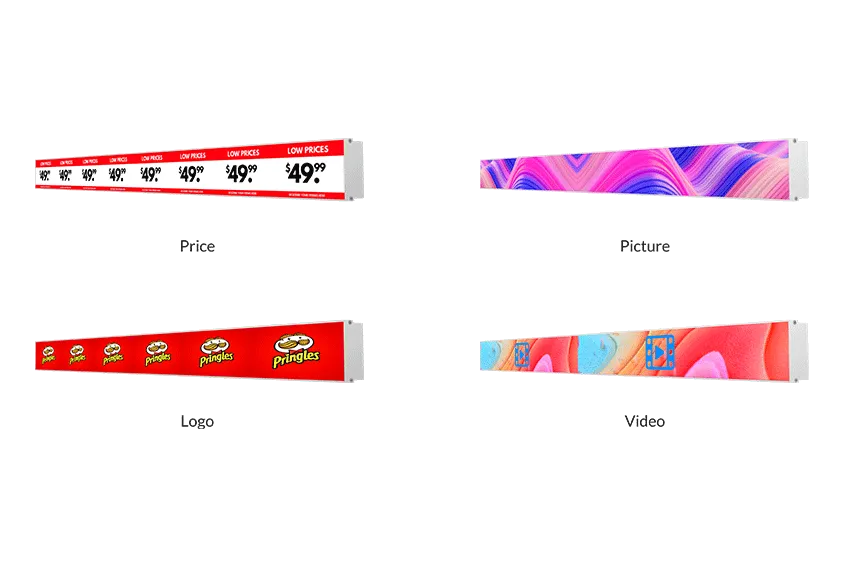

- Flexible Display Mode - Including price, picture, logo and video etc.

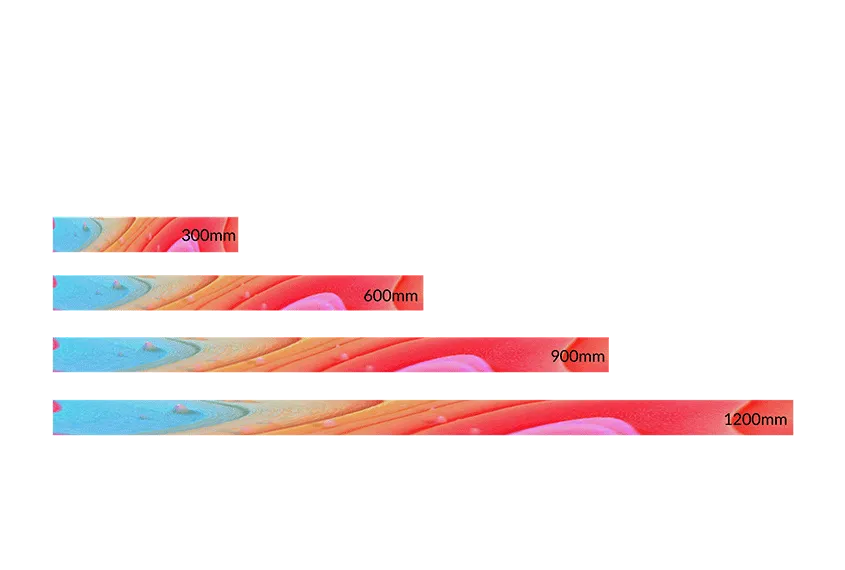

- Various Size Options - Available in 300mm, 600mm, 900mm, and 1200mm sizes to suit various applications.

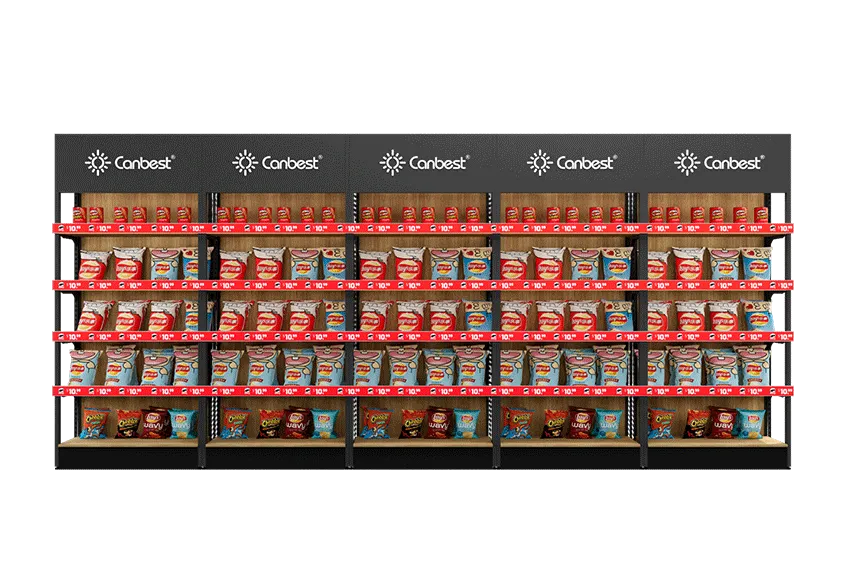

- Seamless Connection - Supports 300mm ,600mm, 900mm and 1200mm multiple units to create a seamless display, ensuring a continuous, gap-free visual experience for a more immersive effect

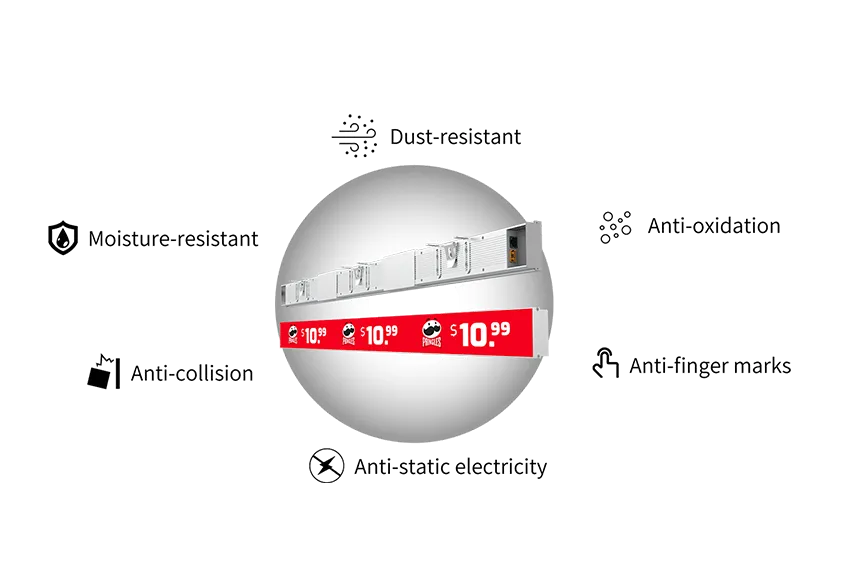

- Durable with COB Technology - Adoptive with COB technology , durable, waterproof, and dustproof for enhanced protection. Designed for safety and reliability, helping to lower maintenance costs

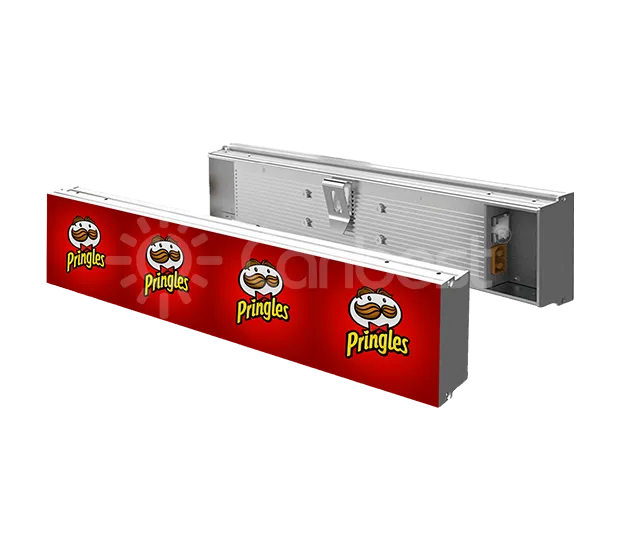

- Easy Installation - Featuring a back buckle design, it allows for quick and easy installation or disassembly in just a simple steps，and won't damage the shelf itself
- Flexible Control Types - 4G,WiFi,USB,Lan control way, easy to change the content
- Intelligent Cloud Cluster Management
- Safe & Low Consumption - Powered by 24V DC for low voltage operation, with low surface temperature and energy efficiency, ensuring safety and reducing the risk of injury
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 50-600NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160° / 160° |
| Contrast Ratio | 10000:1 |
Technical Specifications
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 240x48dots |
| CABINET PIXEL RESOLUTION ( H X W) | 240x48dots | 480x48dots | 720x48dots | 960x48dots |
| BRIGHTNESS | 50-600nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 300*60mm (11.8x2.4 inch) | 600*60mm (23.6x2.4 inch) | 900*60mm(35.4x2.4 inch) | 1200*60*25mm (47.24x2.4 inch) |
| CABINET WEIGHT | 0.38Kg (0.84 lbs) | 0.76Kg (1.68 lbs) | 1.14Kg (2.51 lbs) | 1.52Kg (3.35 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
