Kings of Neon LM Series - Ultra Lightweight Aluminum Outdoor LED Screen
LM Series – Die-Casting Aluminum Outdoor LED Display

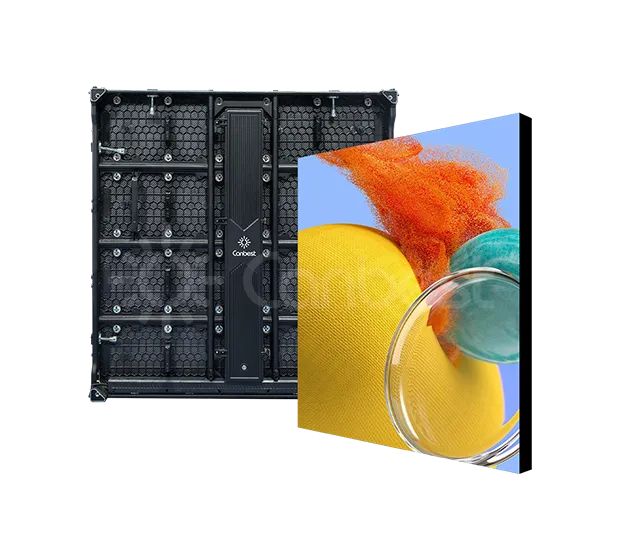

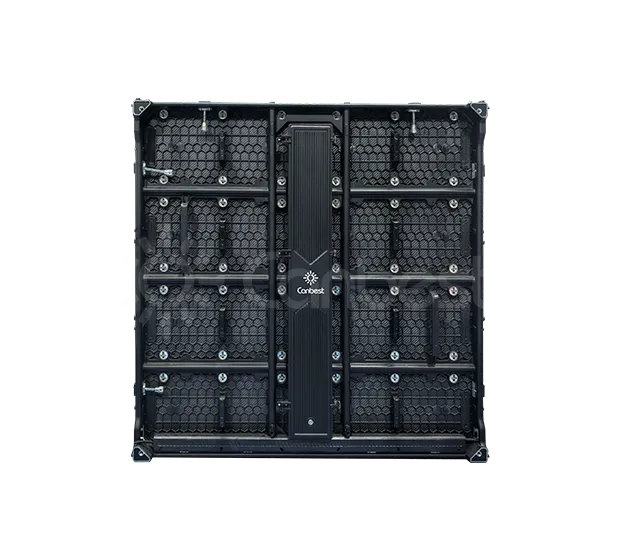

The LM Series uses ultra-lightweight die-cast aluminum cabinets, with each 1000×1000 mm panel weighing just 22 kg for easy transport, fast setup, and reduced labor—ideal for rentals and large outdoor installations.

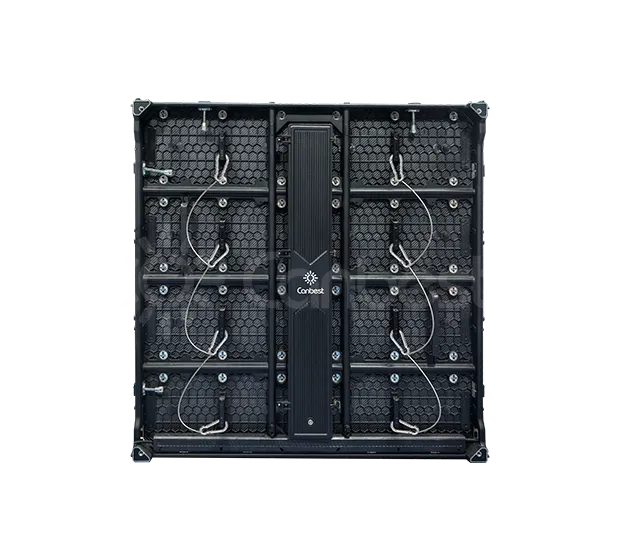

With over 5,000 nits of brightness, it delivers vivid, high-contrast visuals that stay clear even under direct sunlight, making it perfect for advertising, live events, and public displays.

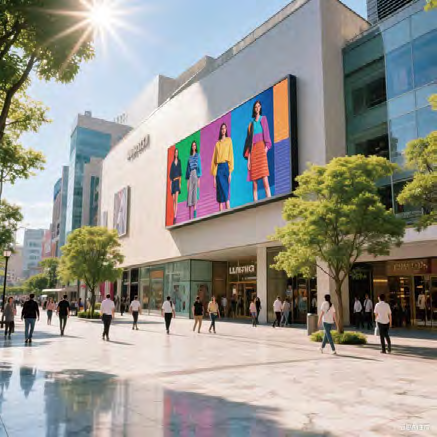

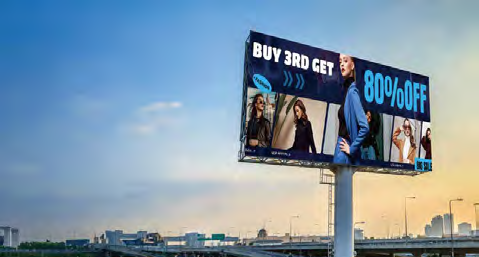

Built for long-term reliability, it supports front and rear maintenance and features full IP65 waterproofing. Available in P3.91 and P4.81, the LM Series is a flexible choice for rental staging, outdoor advertising, concerts, and permanent installations.
Key Features

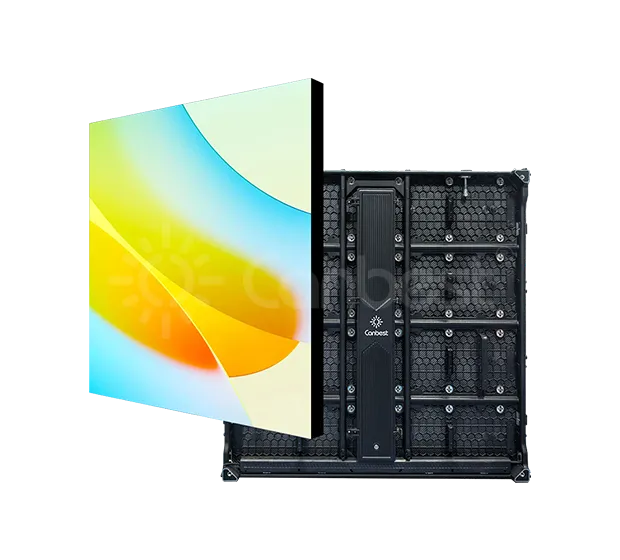

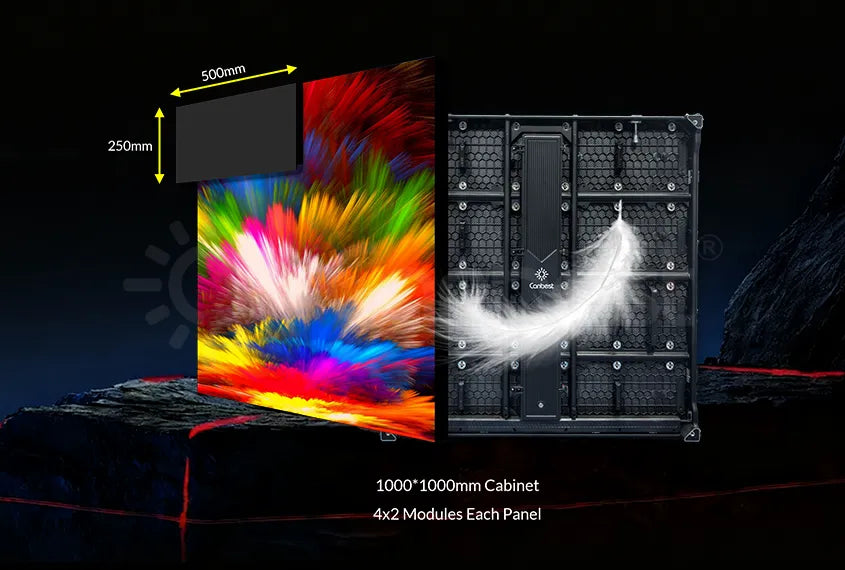

- Ultra-Light, Ultra-Rugged Construction - Built with a high-strength die-cast aluminum frame, this outdoor LED panel offers exceptional durability while remaining ultra-light at only 22kg. That means easier handling, reduced installation costs, and superior long-term reliability.
- Superior Outdoor Performance - With 5000+ nits for daylight visibility and a 7680Hz refresh rate for ultra-smooth motion, this outdoor LED display offers superior clarity and reliability in all conditions.

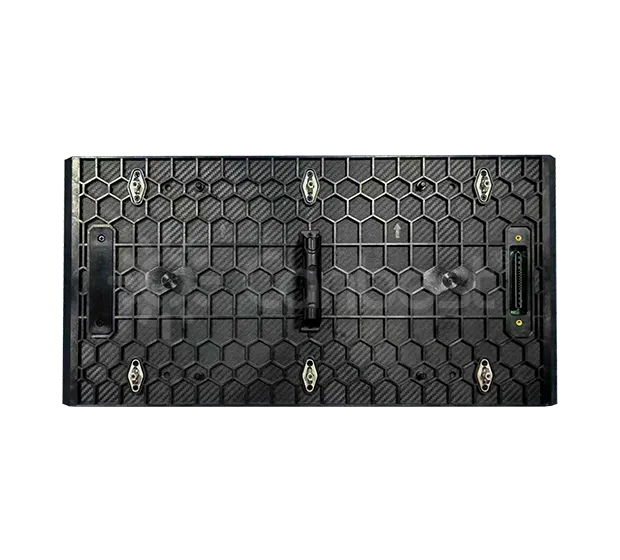

- Pin-Connected Module - Built for outdoor environments, the pin-connected module design offers secure connections, easy servicing, and long-lasting reliability.

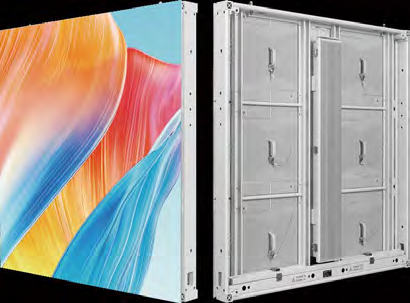

- Front & Rear Maintenance - Designed for convenient servicing, the display supports front and rear maintenance, allowing easy access and efficient repairs even in tight or space-constrained installations.
- Cable Hidden Box Design - The built-in concealed cable management box neatly stores all power and signal cables inside the cabinet, keeping the wiring fully protected from weather exposure while maintaining a clean, streamlined appearance.
- Events Application Available - Compatible with hanging or stacking setups, making it ideal for rental events and temporary outdoor installations.

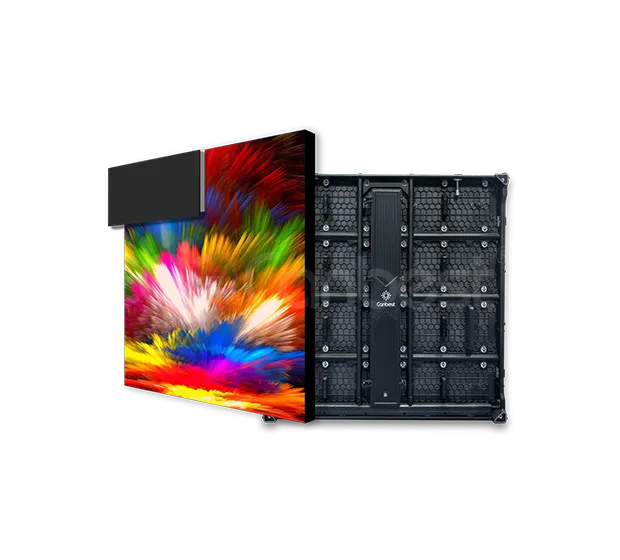

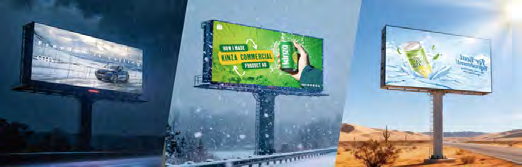

- IP65 Protection Grade - Outdoor-grade protection with IP65 rating for reliable performance in rain, dust, and extreme environments.
- Accessories - Wall Mounted Structure for Rear Service Wall Mounted Structure for Front Service Roof Mounted Structure Wall Mounted Structure for Naked-Eye Solution V Shape LED Structure with Pole Single Sided and Double Sided Structure with Pole
Performance Specifications
| Refresh Rate | 7680Hz |
| Brightness | 5000nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140°/120° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 3.91mm |

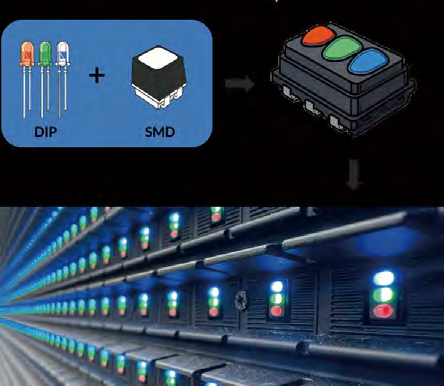

| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 128x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 256x256dots |
| BRIGHTNESS | 5000nits |
| REFRESH RATE | 3840Hz/7680Hz |

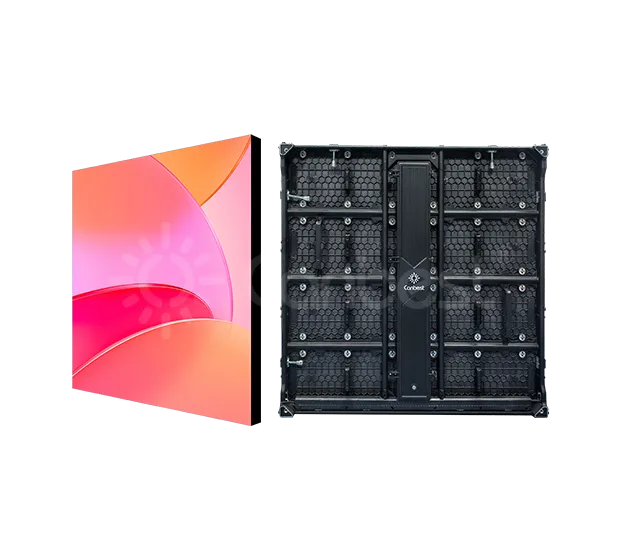

| CABINET SIZE | 1000x1000mm ( 39.38x39.38 inch) |
| CABINET WEIGHT | 22Kgs ( 48.5 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000：1 |
| LIFESPAN | 100000 Hrs |
| PIXEL PITCH | 4.81mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 104x52dots |
| CABINET PIXEL RESOLUTION ( H X W) | 208x208dots |
| BRIGHTNESS | 5000nits |
| REFRESH RATE | 3840Hz/7680Hz |
| CABINET SIZE | 1000x1000mm ( 39.38x39.38 inch) |
| CABINET WEIGHT | 22Kgs ( 48.5 lbs) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000:1 |
| LIFESPAN | 100000 Hrs |

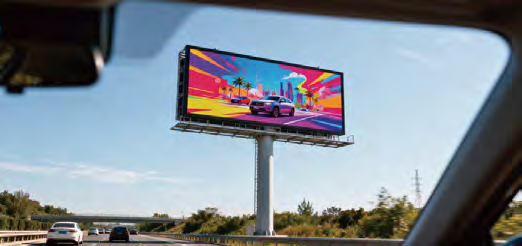

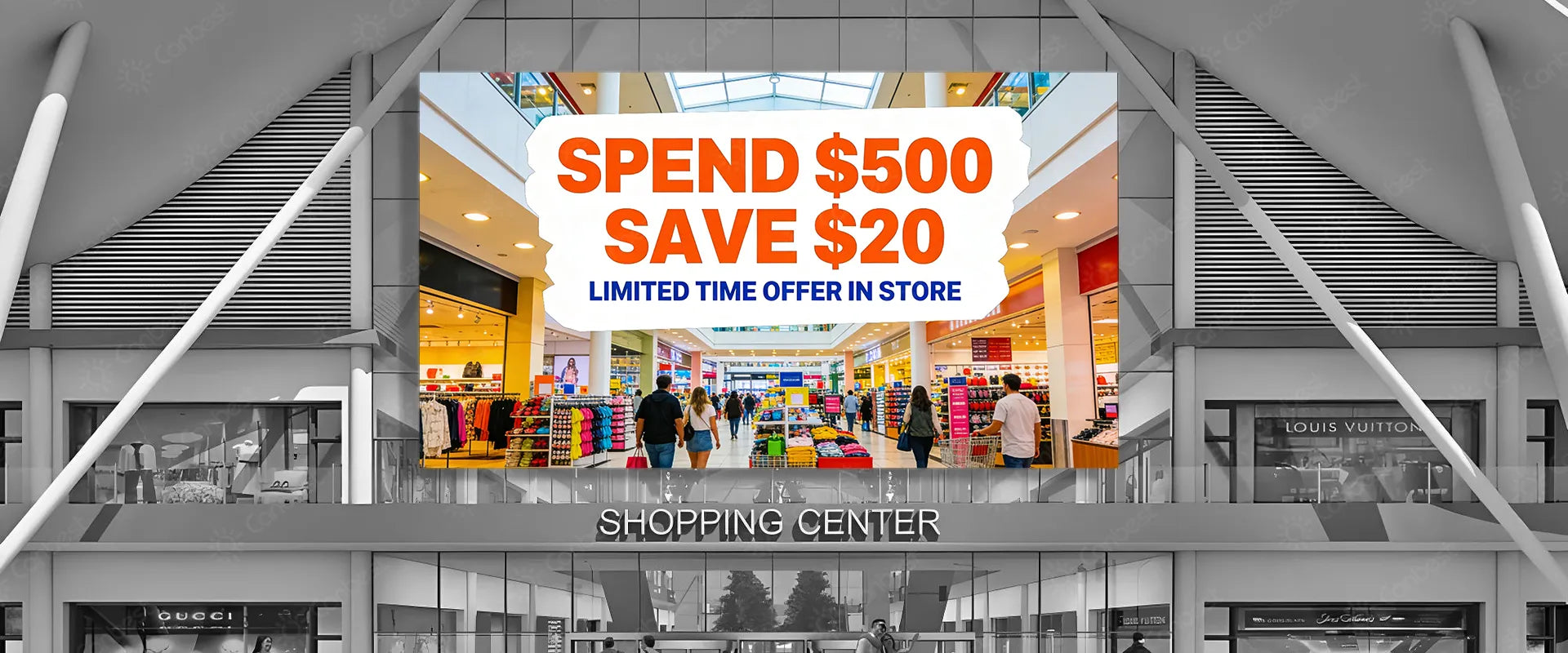

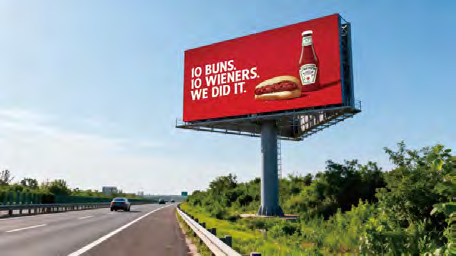

Applications
Contact Kings of Neon for expert advice on the LM Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
