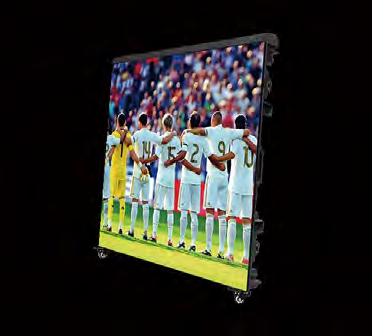

Kings of Neon QI Series - For INDOOR STADIUM COURT

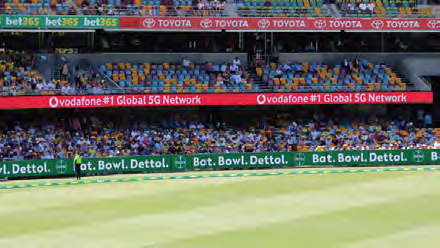

QI Series is an Indoor Stadium Perimeter LED Screen is a highly specialized display solution designed to deliver clear and dynamic messaging in sports venues. Positioned around the perimeter of the playing field, these screens serve both functional and commercial purposes, enhancing the game-day experience for fans while providing advertisers a premium platform for branding.

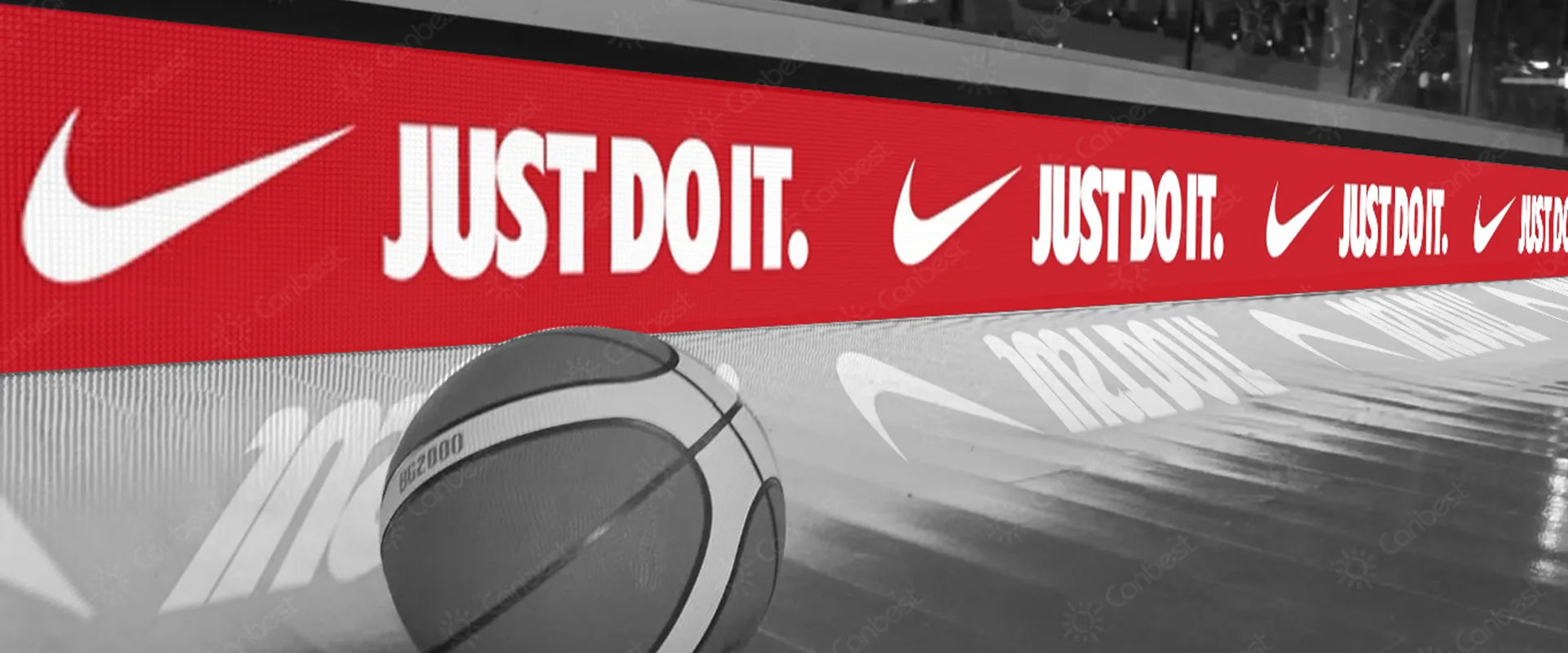

They are typically used in: sports arena, basketball court, ice hockey stadium and other professional sports applications.
The hot selling model available will be P4 P5
Key Features
- Various Cabinet Material Available - Aluminum or Iron cabinets are available according to your applications
- Humanization Design - The rubber protector and led mask will efficiently impact buffering , it can protect the players from being hurt during the match.

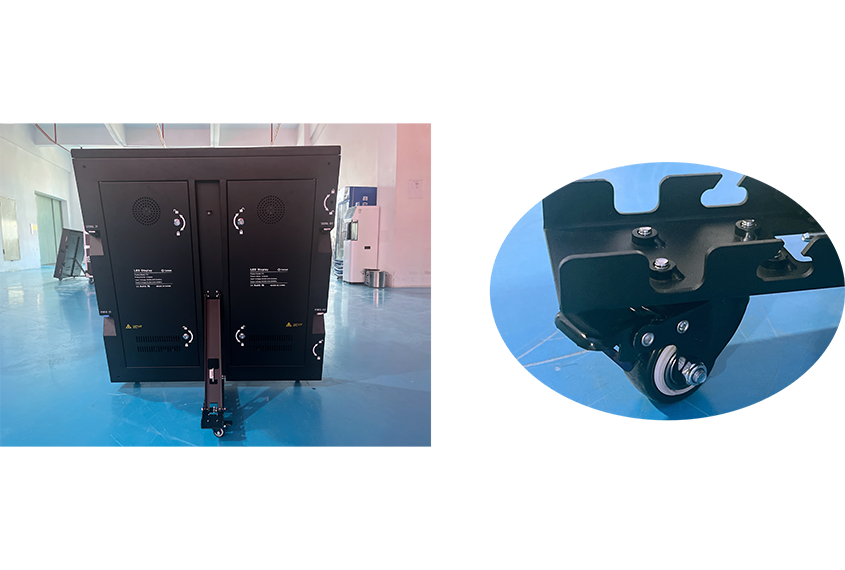

- Rotating Design with Wheels For Emergency Exit - QI Series with rotating base and wheels for emergency exit for perimeter led display installation in stadium, this is necessary for quick and easy escape required by most football associations

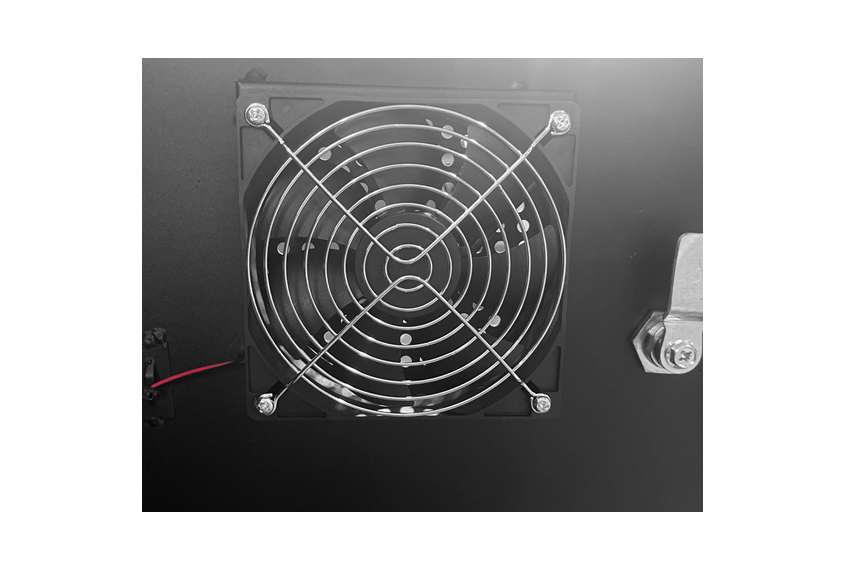

- Good Heat Dissipation - Equipped fans accelerate air convection and enhance heat dissipation effect

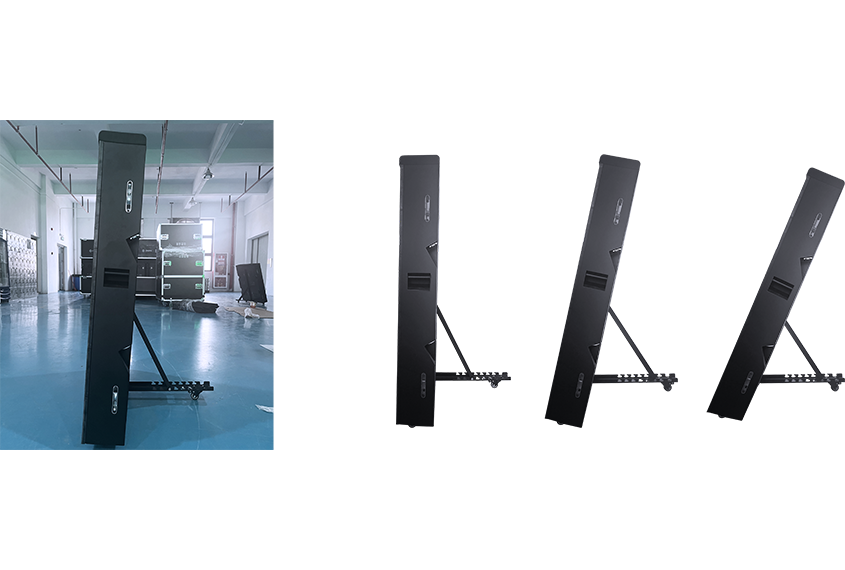

- Independent Support Structure, Multi-angle Adjustment - The independent brackets support flexibly (60° ~ 90°) for audience and cameras
- Quick Installation with High Standard Aviation Connector - Saving installation time and aviation connector will ensure the stable and reliable of the screen especially in some important occasions.
- Dual Backup For Signal & Power - When one data line/controller breaks down, the other will start to work automatically, ensure the continuous work of the screen in live broadcast.
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 1000nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 160°/160° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 4mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 80x40dots |
| CABINET PIXEL RESOLUTION ( H X W) | 240x240dots |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79nch) |
| CABINET WEIGHT | 33Kgs ( 72.75 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 5 |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 64x32dots |
| CABINET PIXEL RESOLUTION ( H X W) | 192x192dots |
| BRIGHTNESS | 1100nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 960x960mm ( 37.79x37.79nch) |
| CABINET WEIGHT | 33Kgs ( 72.75 lbs) |
| ACCESSIBILITY | Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |

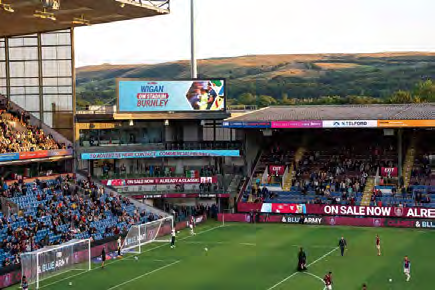

Applications
Contact Kings of Neon for expert advice on the QI Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
