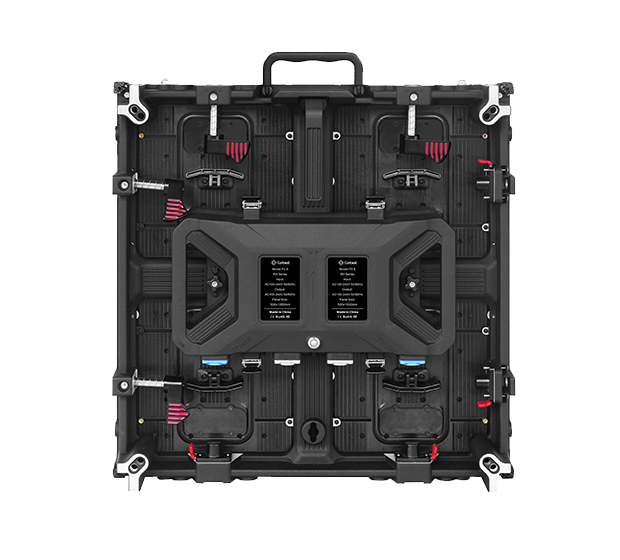

RH-COB Series - 4K 8K Fine Pitch COB Events LED Screen
RH-COB Series - 4K 8K Fine Pitch COB Events LED Screen

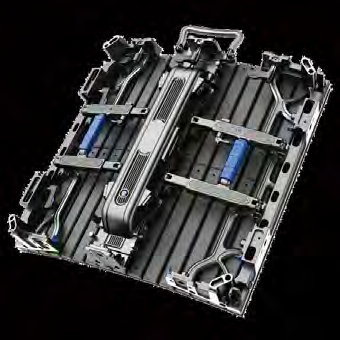

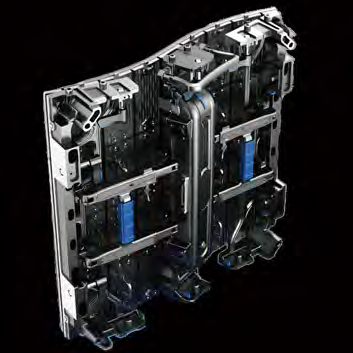

Kings of Neon RH-COB Series - COB ALUMINUM MODULE RENTALS LED

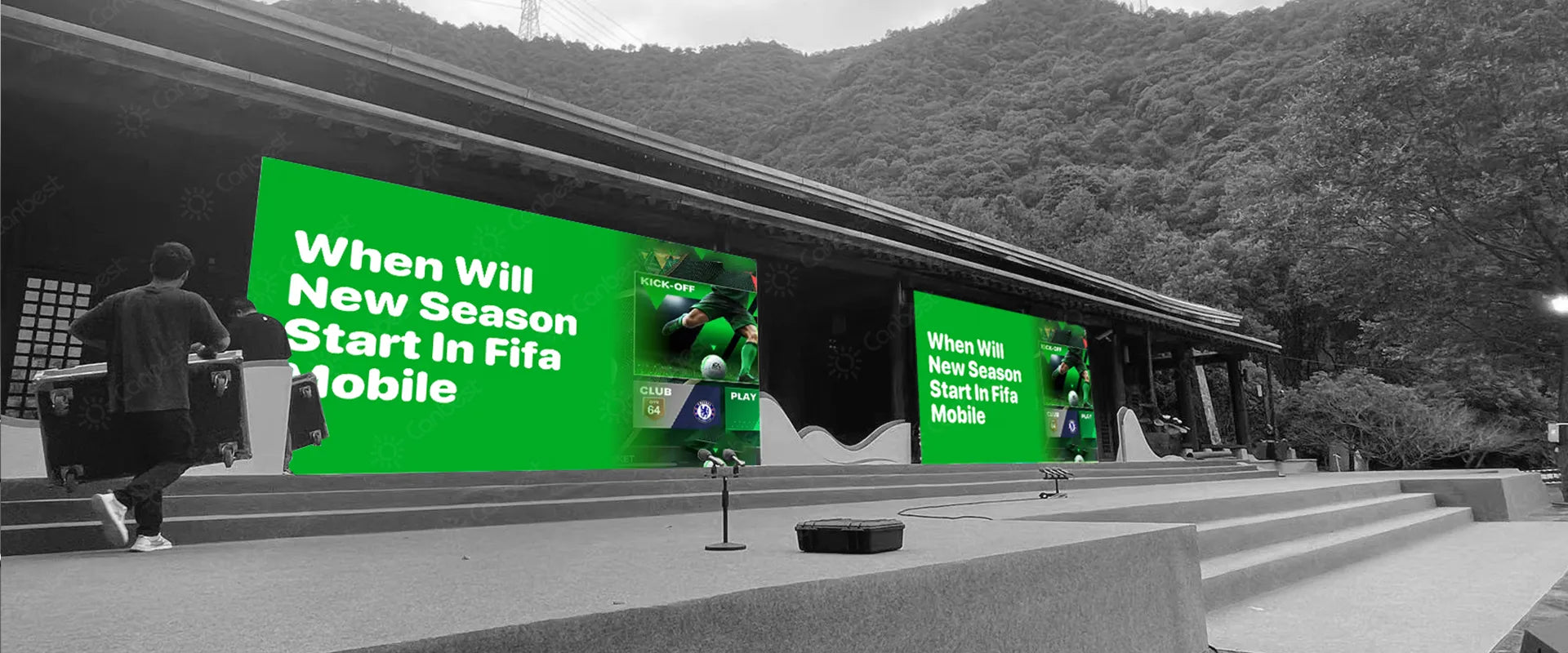

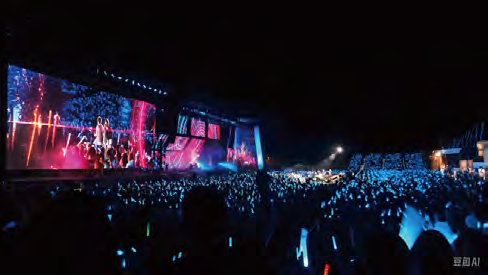

RH COB Series Stage LED Screen offers durable and long lifespan due to COB technology and aluminum module , so they are ideal for outdoor applications as large-scale performances, concerts , important live show, sports stream and can provide excellent visual experience and flexible installation options.
The separate power and data unit can be exchanged easily with no tools required. and the cabinets come in both front and rear servicing options.
thanks to the fine pixel pitch with P1.5, P1.9 , they are best for some occasions with close viewing.
Key Features
- COB Packaging Technology, Superior Pixel Pitch - breaking through the physical limit of the small pixel pitch in SMD package and completes the realization of a smaller pitch

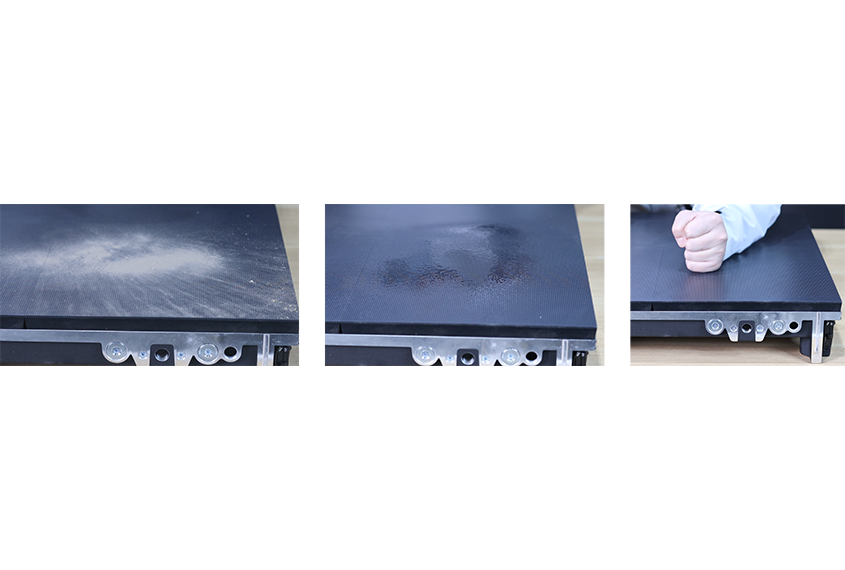

- Superb Reliability - Completely sealed with epoxy resin to cure the light-emitting chip, COB LED will be anti-shock, anti-collision, moisture-proof, dust-proof, waterproof, and so there will be no problem caused by transportation and installation

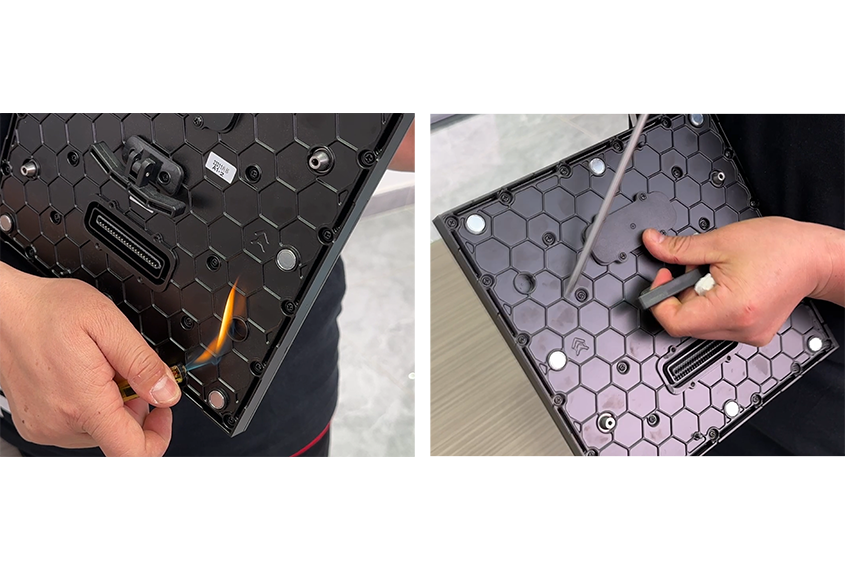

- Aluminum Module Design - High temperature resistance, not easy to deform and good heat dissipation with longer lifespan compared with plastic module

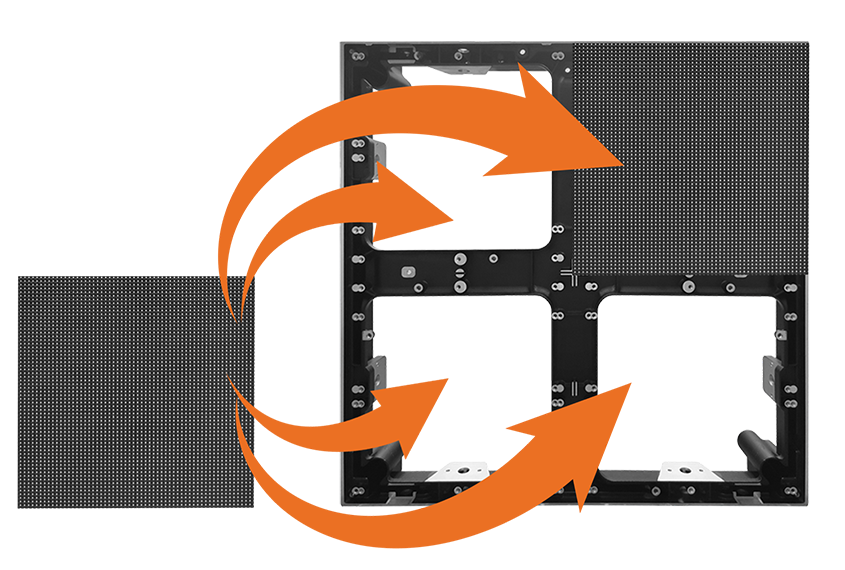

- Intelligent Module Design - Module replacement freely up & down ,left & right, easy operation and maintenance
- Corner Protector Design - Protecting all the pixels damaged from falling-down during transportation & installation .

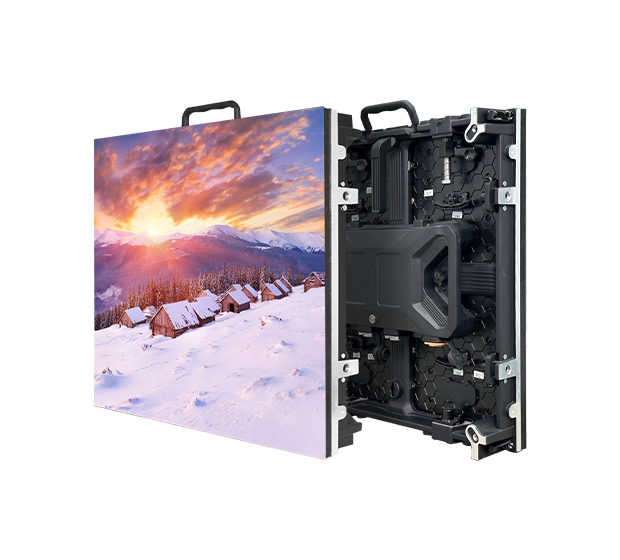

- Independent Power Supply Design - Pluggable power box without cable connection, quick operation when doing maintenance, tool free; Unique design for the power supply share of 500*500mm with 500*1000mm panels
- Strong magnet Design, One Person Installation - Strong magnet for automatic pull-in when doing installation, easy for one person installation

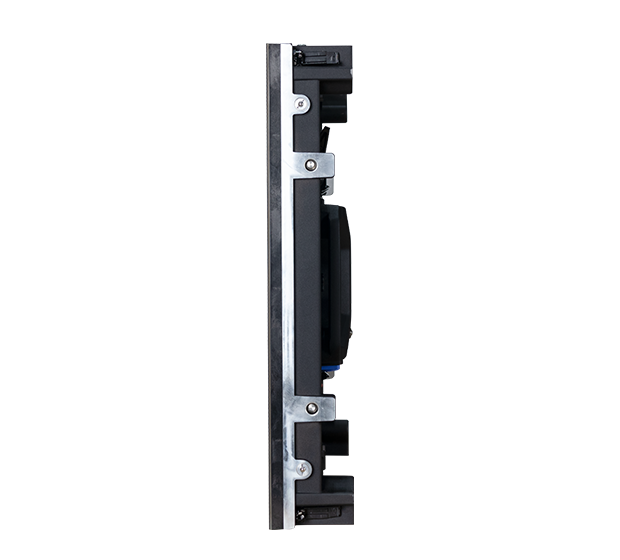

- Front & Rear Access - Strong magnetic module design, front and rear installation and maintenance available

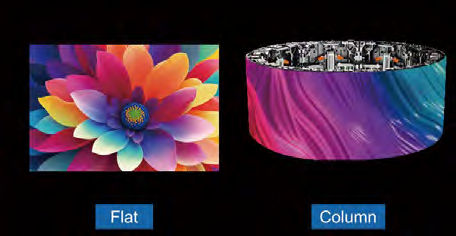

- Accessories - Curved Ground Support System Flat Ground Support System with Raising Function Flat Ground Support System Power Distribution Cabinet Truss With Electrical Lifting Control System
Performance Specifications
| Refresh Rate | 3840Hz |
| Brightness | 1000-4500nits |
| Colour Capability | 281 Trillion |
| Viewing Angle | 170°/170° |
| Contrast Ratio | 10000:1 |
Technical Specifications
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGING | COB |
| MODULE PIXEL RESOLUTION (H x W) | 160x160dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x320dots |
| BRIGHTNESS | 2600-3500 nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) |
| CABINET WEIGHT | 7.8Kgs ( 17.19 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 10000:1 |
| WORKING TEMPERATURE | -30℃~+60℃ |
| PIXEL PITCH | 1.953mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 128x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 256x256dots |
| BRIGHTNESS | 3000~3500 nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) |
| CABINET WEIGHT | 7.8Kgs ( 17.19 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 10000:1 |
| WORKING TEMPERATURE | -30℃~+60℃ |

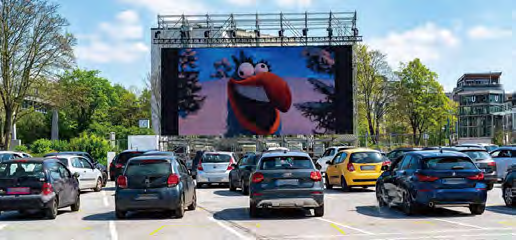

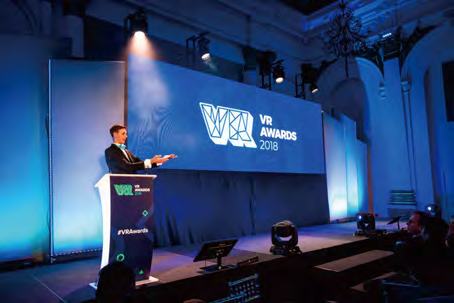

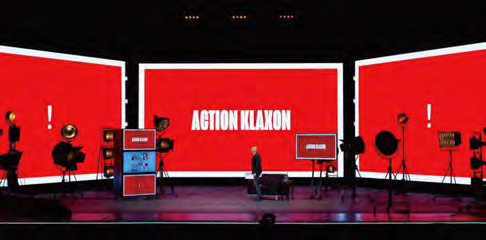

Applications
Contact Kings of Neon for expert advice on the RH-COB Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
