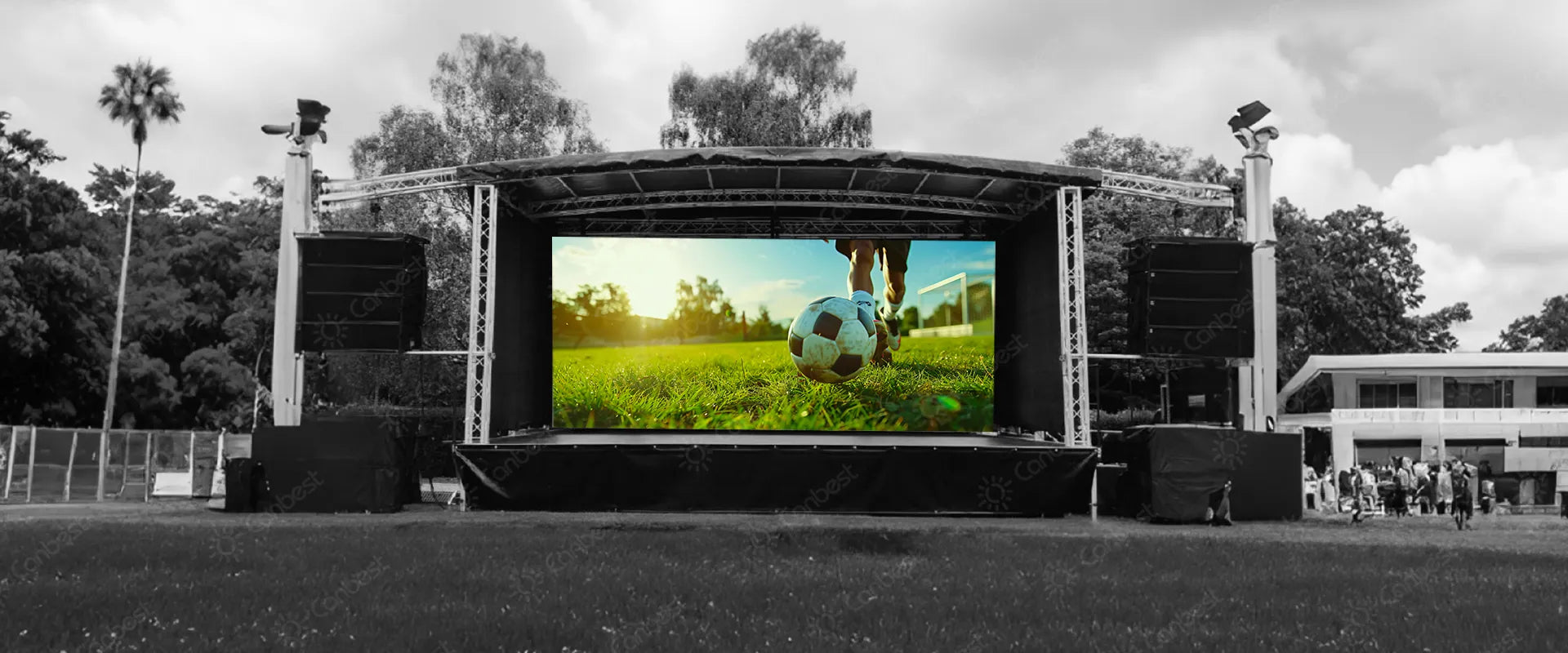

RS Series - Hub-Connection Stage Events LED Display
RS Series - Hub-Connection Stage Events LED Display
Kings of Neon RS Series - 7680Hz Modular LED Screen Rentals

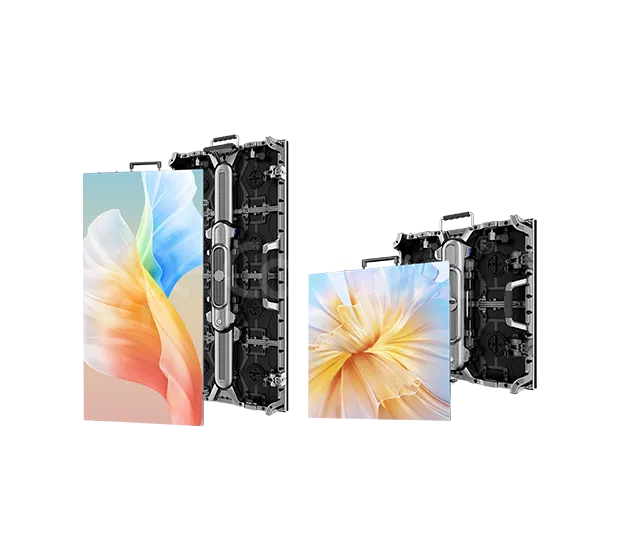

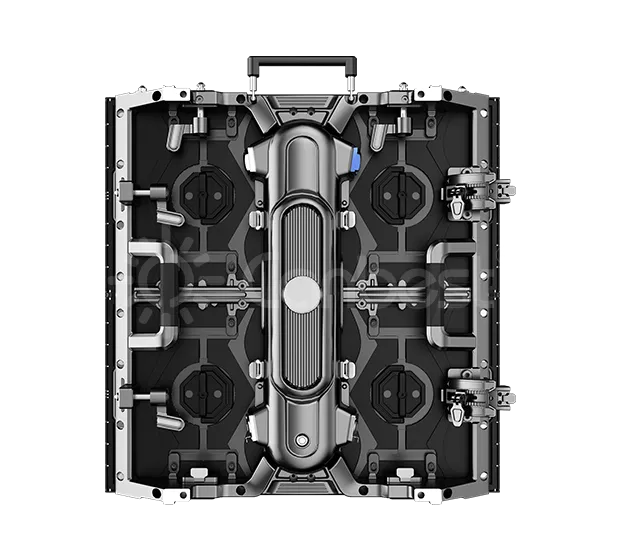

RS Series – Indoor/Outdoor HUB Connection LED Wall
The RS Series is a high-performance LED wall solution engineered for versatility and efficiency across indoor and outdoor applications. Whether you’re staging a concert, building a trade show booth, or setting up for a festival or sports event, the RS Series delivers vibrant visuals, fast deployment, and robust durability.
Panel Sizes: 500×500mm and 500×1000mm – support mixed splicing for flexible configurations
Pixel Pitch Options: Indoor: P1.9 / P2.6 / P2.9 / P3.9, Outdoor: P2.6 / P2.9 / P3.9
HUB Connection System – Cable-less design simplifies installation and reduces maintenance time
Modular Design – Lightweight and robust structure with tool-free assembly
Front & Rear Maintenance – Easy access for quick servicing in any installation condition
One-Person Installation – Designed for rapid setup and teardown by a single technician
Flexible Installation: Curved Setup Supported ,Right-Angle Splicing Compatible
High Refresh Rate: 7680Hz for smooth, flicker-free visuals—ideal for cameras, live broadcasts, and XR production

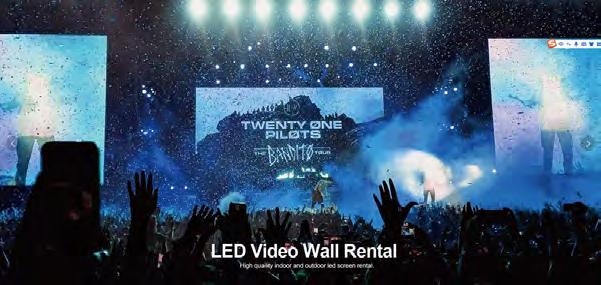

Application: Live Concerts & DJ Performances ,Sports Events,Trade Shows & Exhibition,Festivals & Outdoor Events ，Corporate Events & Conferences, Houses of Worship ,heater & Performing Arts
Key Features
- Ultralight but Sturdy - Lightweight Cabinet – Save on Labor and Transportation Costs 500×1000mm cabinet weighs just 13.5 kg 500×500mm cabinet weighs only 7 kg Significantly reduces handling effort and shipping expenses.
- Outstanding visual performance - Ultra-smooth, flicker-free visuals with rich color depth—perfect for high-end events, concerts, stages, and broadcast environments.
- Creative Setup
- Modular Design for Easy Maintenance - The hub-connected independent power supply simplifies maintenance, cutting upkeep time by up to 40% compared to traditional wired systems.

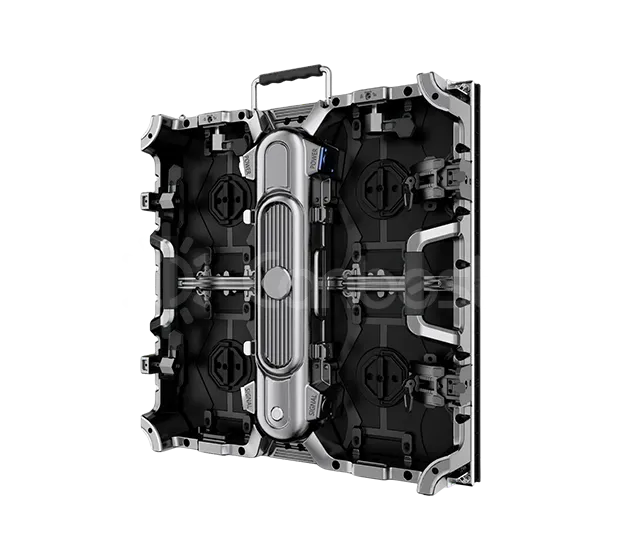

- Front and Rear Maintenance - Modules and power supply units (PSUs) are easily accessible from both the front and back, enabling fast and convenient servicing.

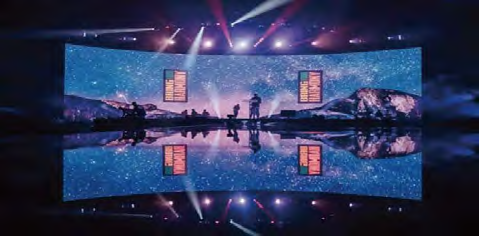

- Durable Curve Locking System - Built-in curve locks support both concave (0~15°) and convex (0~12.5°) configurations—perfect for dynamic and creative stage designs.

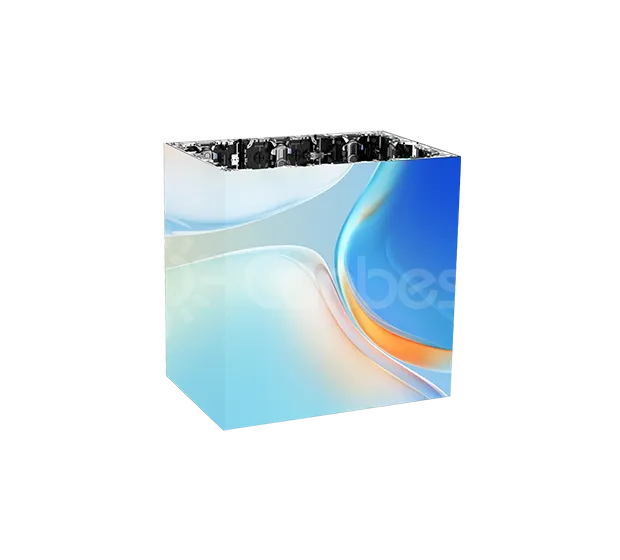

- Right-angle Setup Option
- Safety with Anti-collision Design - Anti-collision design with flip-over protective mask, reinforced corners, and edge protrusions prevents direct LED impact with the ground—effectively protecting edge LEDs.

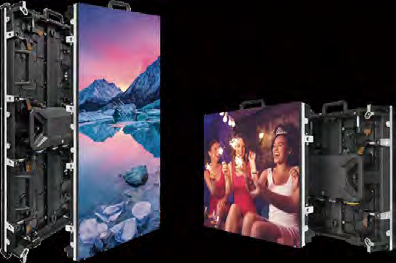

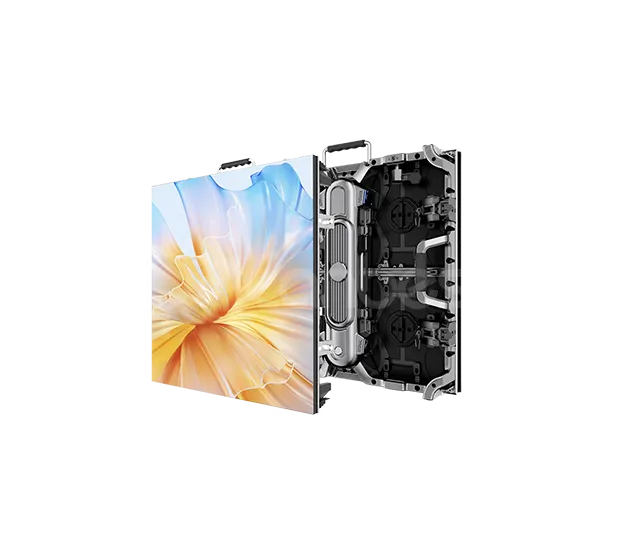

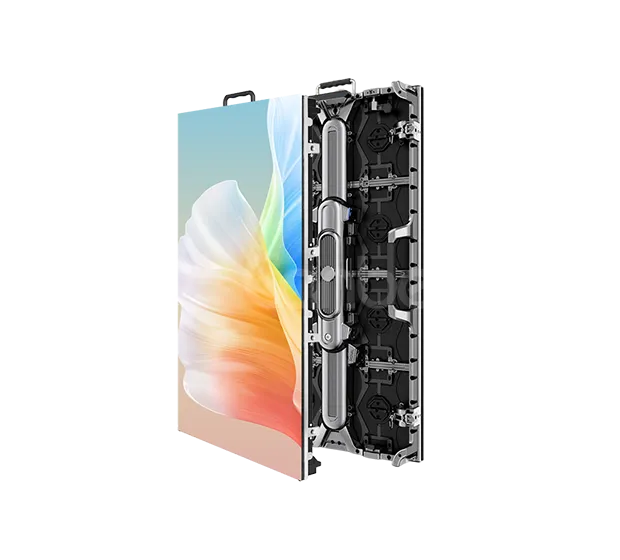

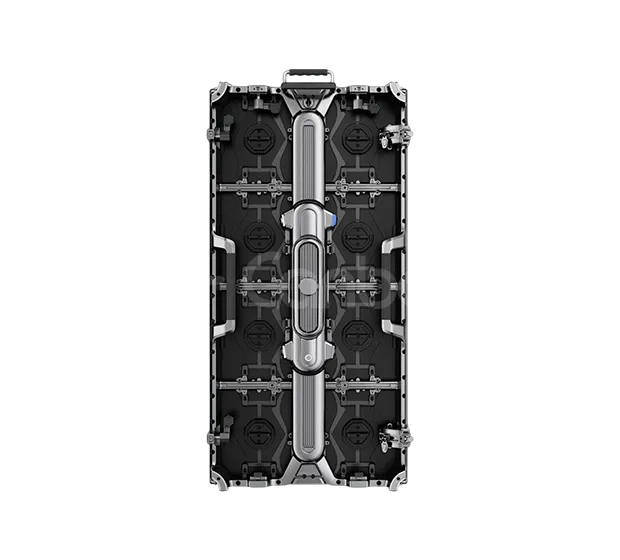

- Flexible Cabinet Compatibility - 500×500mm and 500×1000mm cabinets can be seamlessly spliced vertically, offering versatile configuration to suit various installation environments.

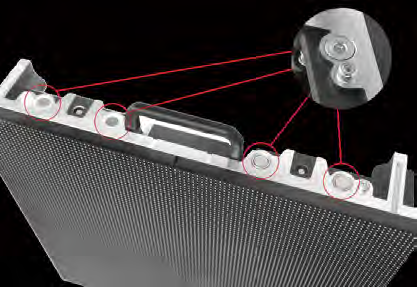

- One Person Installation - Positioning balls combined with fast locks between cabinets allow for quick alignment and secure connection.
- Quick Setup & Teardown - One twist to lock or release led modules, making it easy to replace or maintain efficiently, saving operation time and cost.
- Accessories - Curved Ground Support System Flat Ground Support System with Raising Function Truss With Electrical Lifting Flat Ground Support System Power Distribution Cabinet Control System
Performance Specifications
| Refresh Rate | 7680Hz |
| Brightness | 4500NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 120° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.9mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD / GOB |
| MODULE PIXEL RESOLUTION (H x W) | 128x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 256x256dots | 256*512dots |
| BRIGHTNESS | 800nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm ( 19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.604mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 96x96dots |
| CABINET PIXEL RESOLUTION ( H X W) | 192x192dots | 192x384dots |
| BRIGHTNESS | 800 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.97mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 84x84dots |
| CABINET PIXEL RESOLUTION ( H X W) | 168x168dots |168x336dots |
| BRIGHTNESS | 800 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 3.91mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 64x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 128x128dots |128x256dots |
| BRIGHTNESS | 800 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.604mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 96x96dots |
| CABINET PIXEL RESOLUTION ( H X W) | 192x192dots | 192x384dots |
| BRIGHTNESS | 4500 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.97mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 64x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 128x128dots | 128x256dots |
| BRIGHTNESS | 4500 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 3.91mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 64x64dots |
| CABINET PIXEL RESOLUTION ( H X W) | 128x128dots | 128x256dots |
| BRIGHTNESS | 4500 nits |
| REFRESH RATE | 7680Hz |
| CABINET SIZE | 500x500mm ( 19.69x19.69inch) | 500x1000mm (19.69x39.38inch) |
| CABINET WEIGHT | 7.5Kgs ( 16.53 lbs ) | 13.5Kgs ( 29.76 lbs ) |
| ACCESSIBILITY | Front & Rear Access |
| IP RATING | IP65 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
Applications
Contact Kings of Neon for expert advice on the RS Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
