Kings of Neon S PRO Series - 3in1 Hub 16:9 Indoor LED Video Wall
The SPRO Series is a cutting-edge, small-pixel pitch LED display solution designed for high-performance indoor applications that demand precision and clarity. With its sleek ultra-thin design and 16:9 aspect ratio, it integrates seamlessly into various settings, ensuring a modern and professional look. The SPRO Series offers a modular cable-less connection system with a 3-in-1 hub board, providing both reliability and ease of maintenance through front-serviceable access, minimizing downtime.
Available in pixel pitches of P1.25, P1.5, and P1.8, the SPRO Series delivers superior image quality and color accuracy, making it ideal for environments such as corporate offices, control rooms, and broadcast studios. The energy-efficient design also reduces operational costs, while its robust structure guarantees durability. Offering integrated solutions for installation, the SPRO Series ensures precise flatness and scalability, making it versatile for various applications.
This combination of energy efficiency, exceptional visual clarity, and easy maintenance positions the SPRO Series as an optimal choice for professional indoor LED display needs.
Key Features

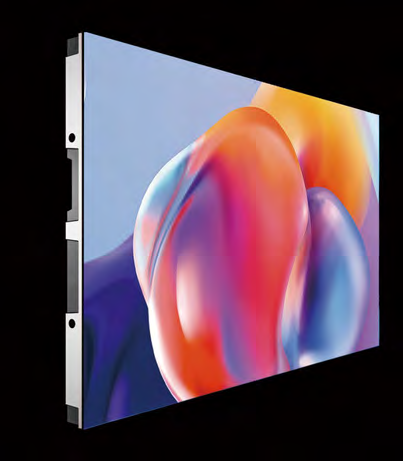

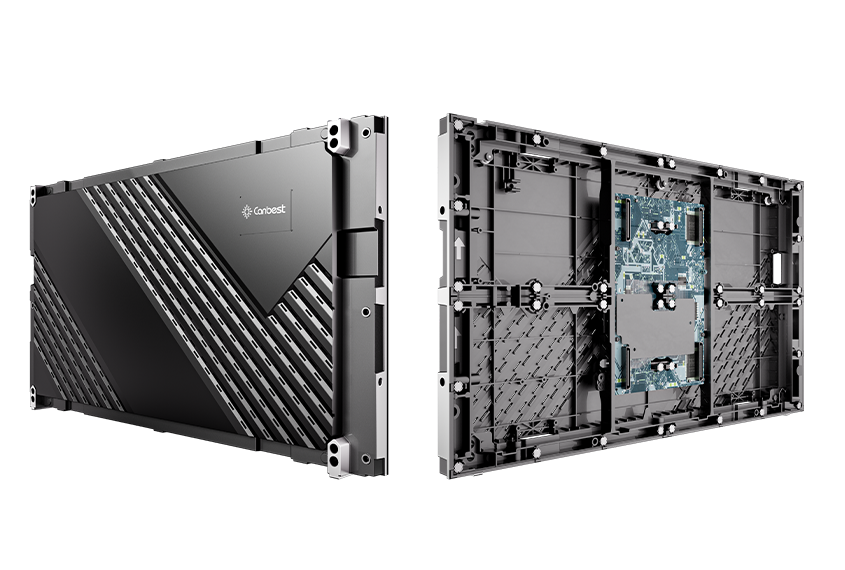

- Die-cast Aluminum Design - High Flatness-Flatness Error ≤ 0.1mm Ultra-Lightweight- Weight: 3.5kg/Panel

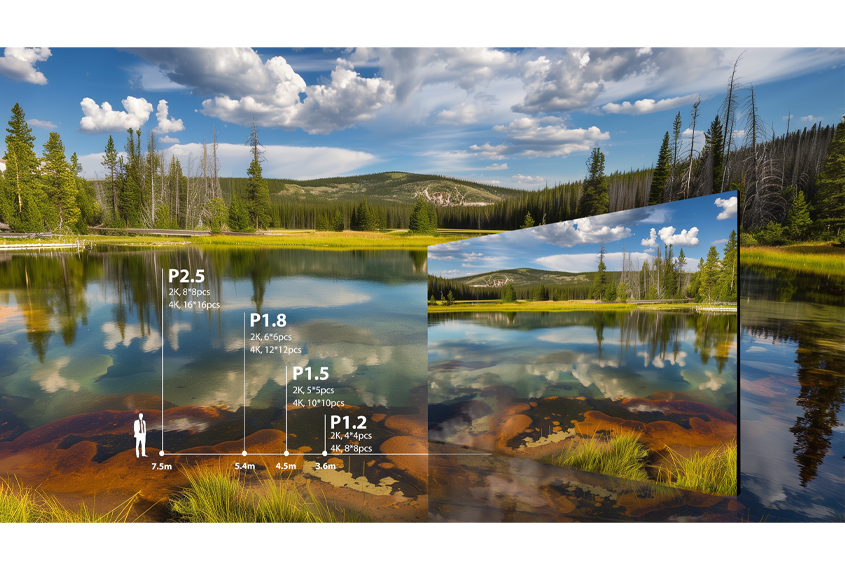

- 16:9 Aspect Ratio - Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions

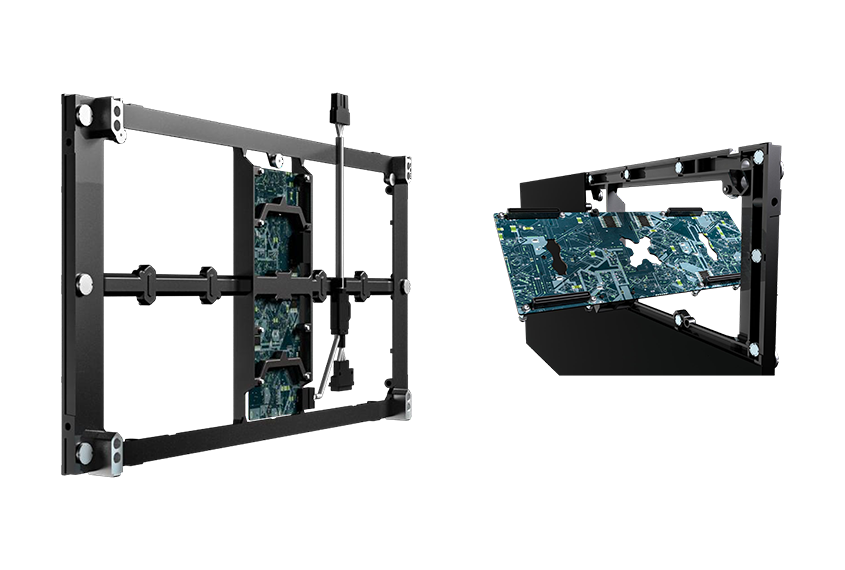

- Three-in-one Integrated HUB with High efficient operation

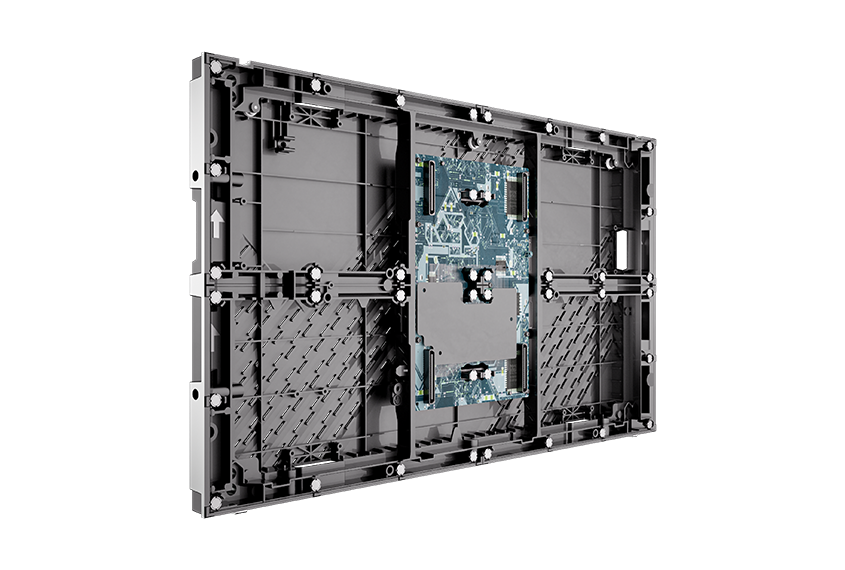

- Hidden wiring design - No externally visible wires ,clean and tidy
- Modular Design - front service with high efficient maintenance
- LED Module Front & Rear Access - GOB technology will make LED Screen waterproof and moisture resistant, high impact resistance, easy maintenance and cleaning. Higher stability with longer lifespan.
- Hard-pin connected modules and Interchangeable left and right - Enable quick module install and replacement
- Energy Saving - Thanks to Integrated 3-in 1 Hub design >50% Power Consumption Saving 21w/panel Average - 100w/m² Average power consumption 75w /panel Maximum- 300W /m² Maximum power consumption
- Memory on Module management Optional - * Automatic color calibration brings you a better visual experience. * Intelligent module design automatically reads uploaded screen calibration data.

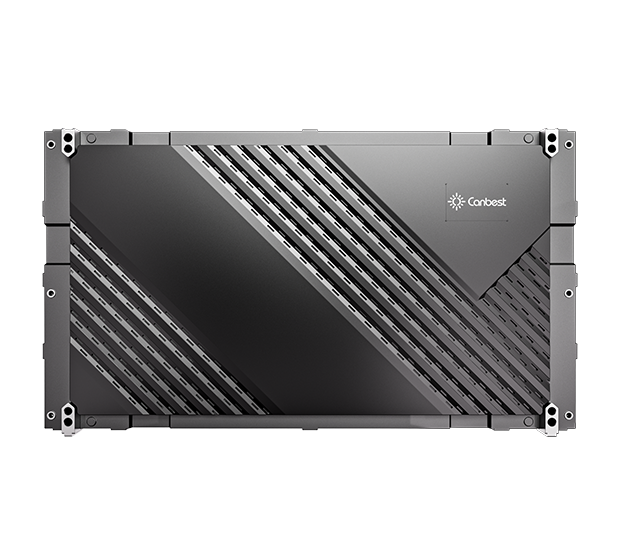

- Unique Aluminum Back Brackets - Self-positioning design, automatic leveling between structures, make sure

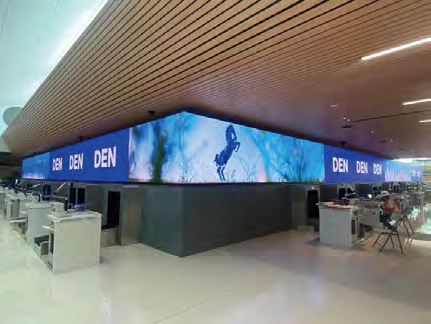

- Right-angle Installation - Ideal for some indoor application with right-angle or coner installations
- Accessories - Flat Wall Mounted Support Brackets Curved Wall Mounted Support Brackets Curved Stacking Installation Support Brackets Edge Cover Power Contribution Cabinet Control System
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 450-1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 240x135dots |
| CABINET PIXEL RESOLUTION ( H X W) | 480x270dots |
| BRIGHTNESS | 400nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 192x108dots |
| CABINET PIXEL RESOLUTION ( H X W) | 384x216dots |
| BRIGHTNESS | 400-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.875mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 160x90dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x180dots |
| BRIGHTNESS | 450-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |

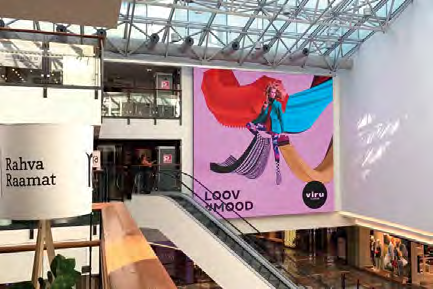

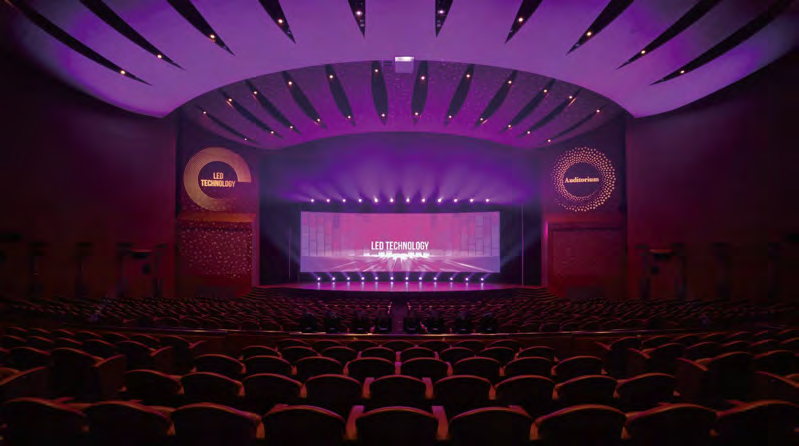

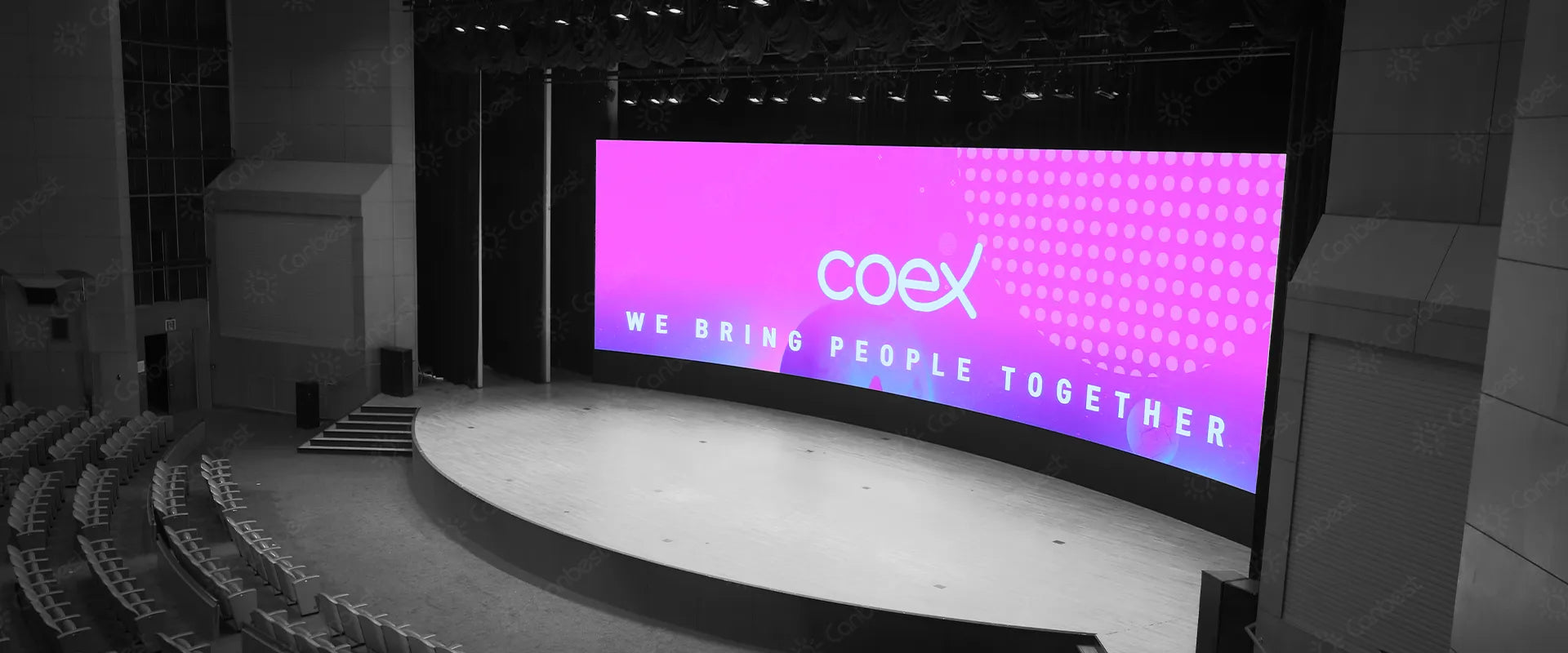

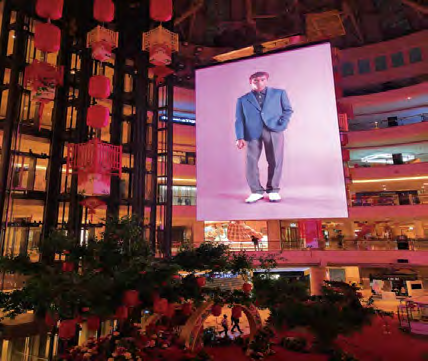

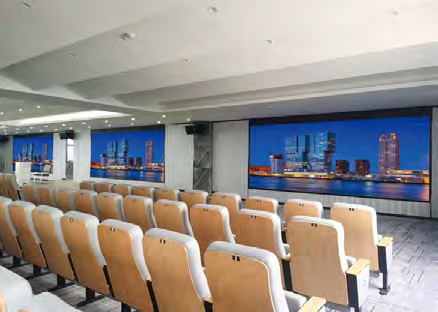

Applications
Contact Kings of Neon for expert advice on the S PRO Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
