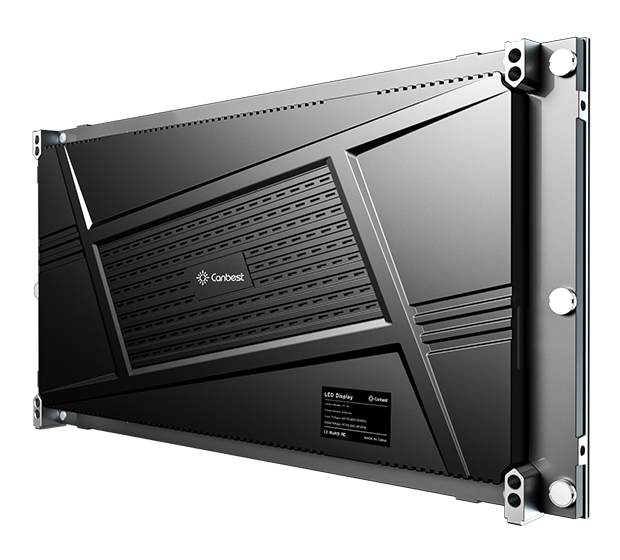

S Series - Super Light, Super HD Indoor LED Video Wall
S Series - Super Light, Super HD Indoor LED Video Wall
Kings of Neon S Series - 3in1 Indoor LED Video Wall

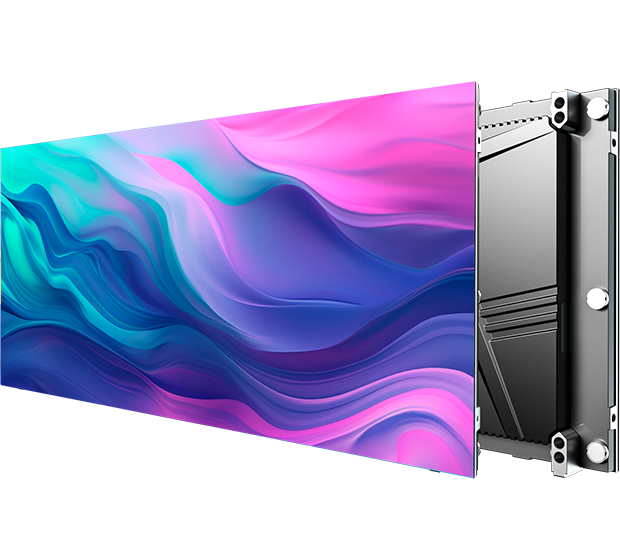

The S series offers high performance in a sleek form factor. It features 3 in 1 hub design, front service modules for efficient hassle-free maintenance, resulting in minimal screen downtime.

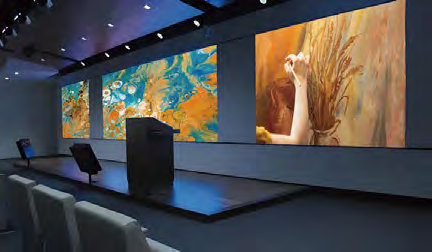

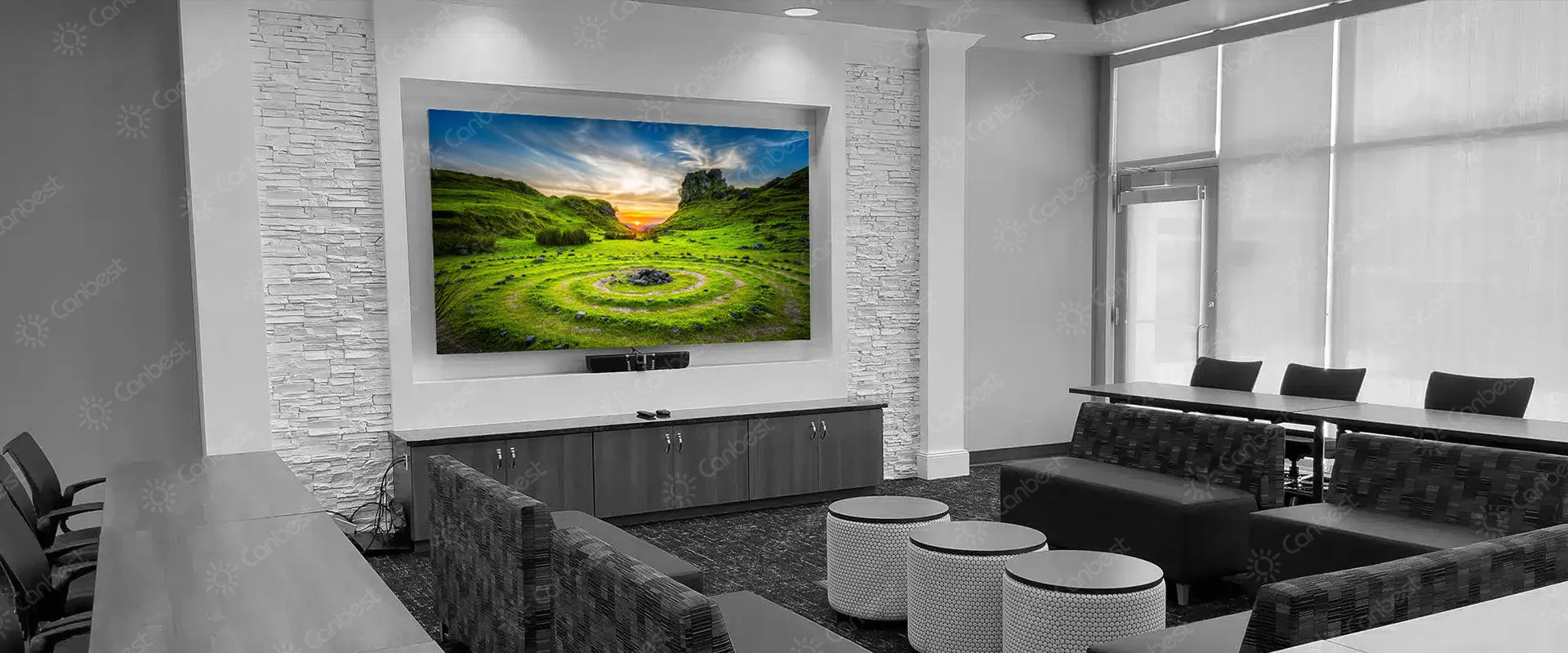

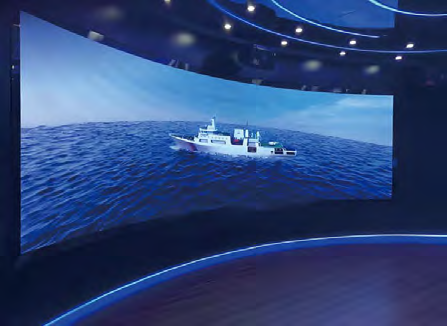

The all-in-one design of S series panels offer the perfect solution for any installation requiring ultra-high definition such as conference room, chain store, church, auditorium, hotel.

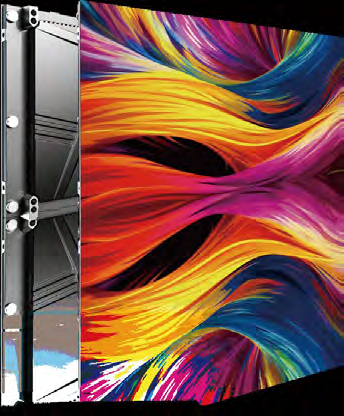

With a panel size 640*320mm and a pixel pitch ranging from 1.2mm to 1.8mm, and low consumption and energy saving, S series is ready to transform any surface into an ultra-high-definition digital canvas.
Key Features

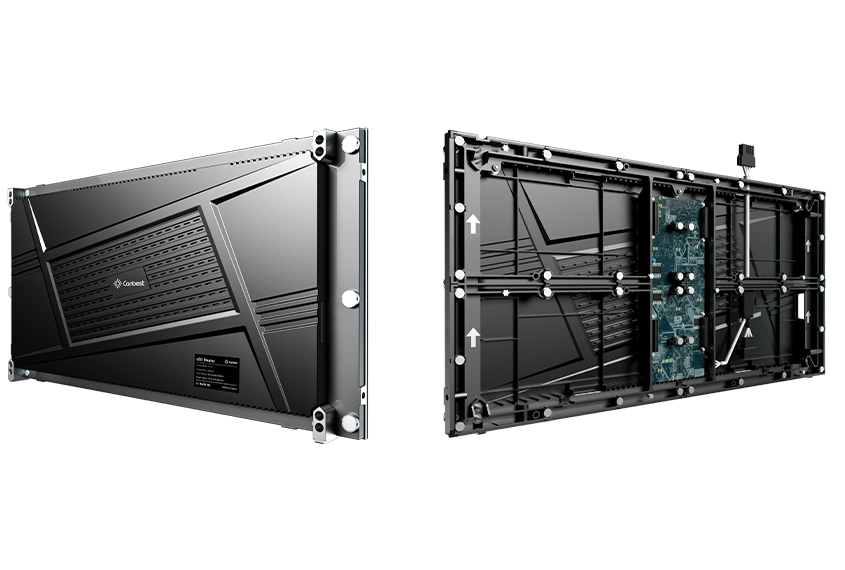

- Die-cast Aluminum Design

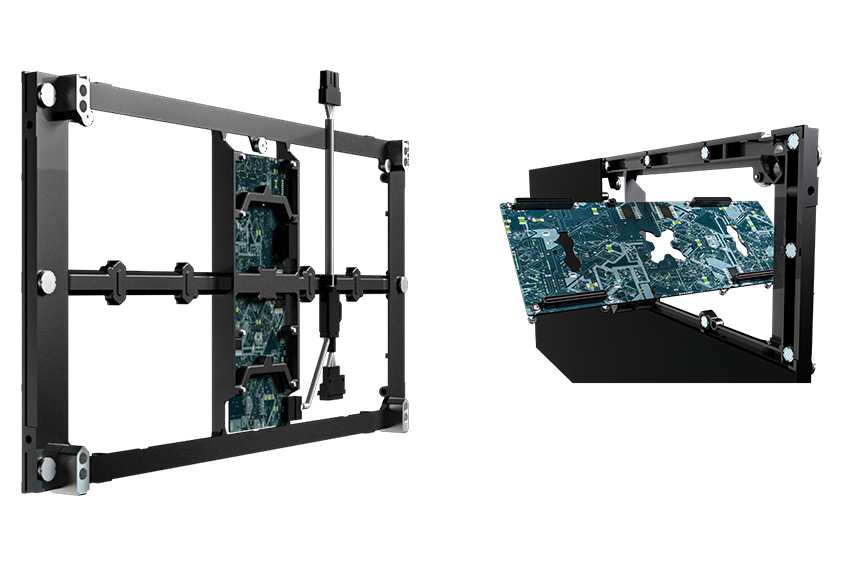

- Three-in-one Integrated HUB with Front & Rear Access

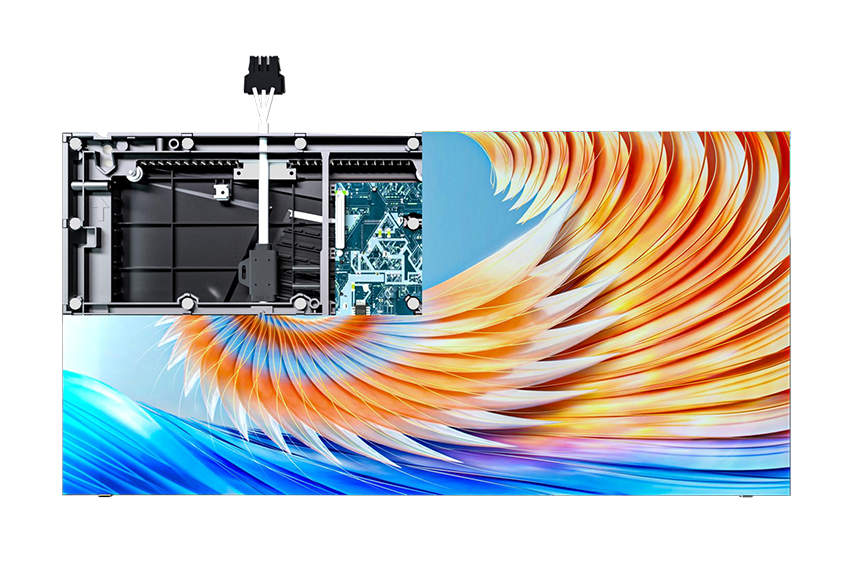

- Hidden Wiring Design - Power cord socket design ; Hidden wiring design, No externally visible wires

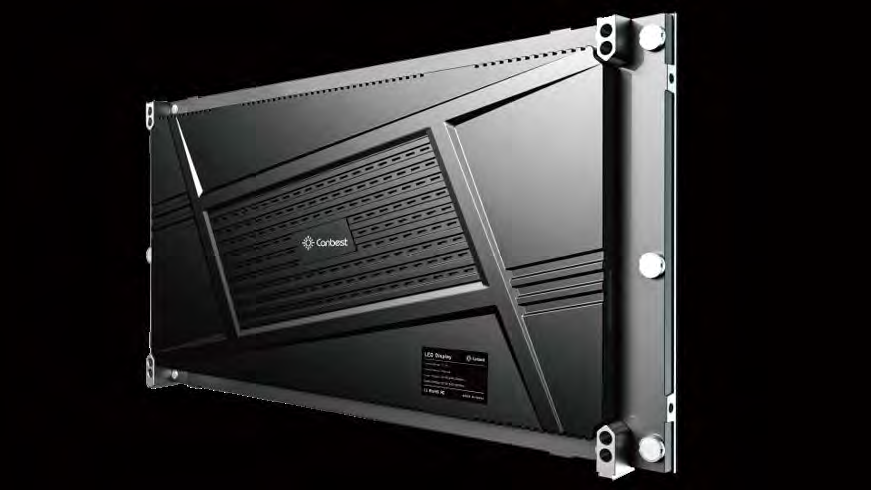

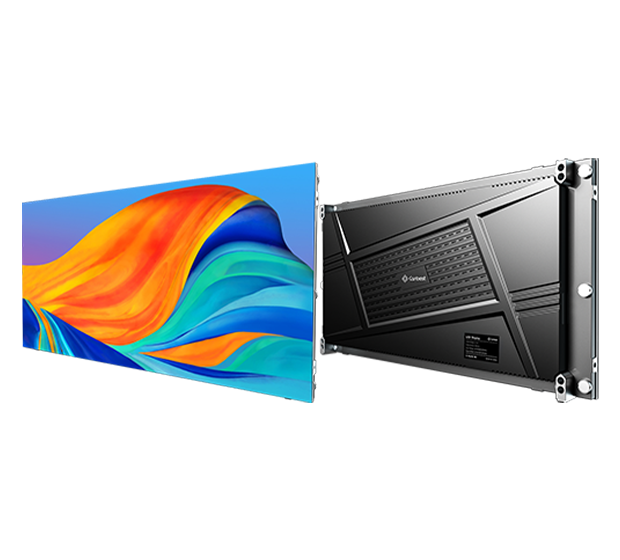

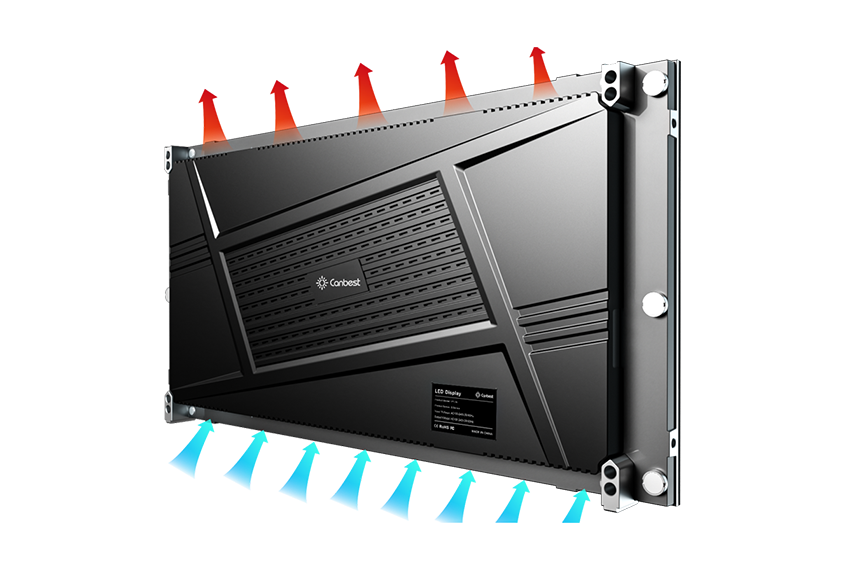

- Magnetic Back Cover, Heat Dissipation Design - Fixed strong magnetic x3 Ventilation hole design for faster and more uniform heat dissipation

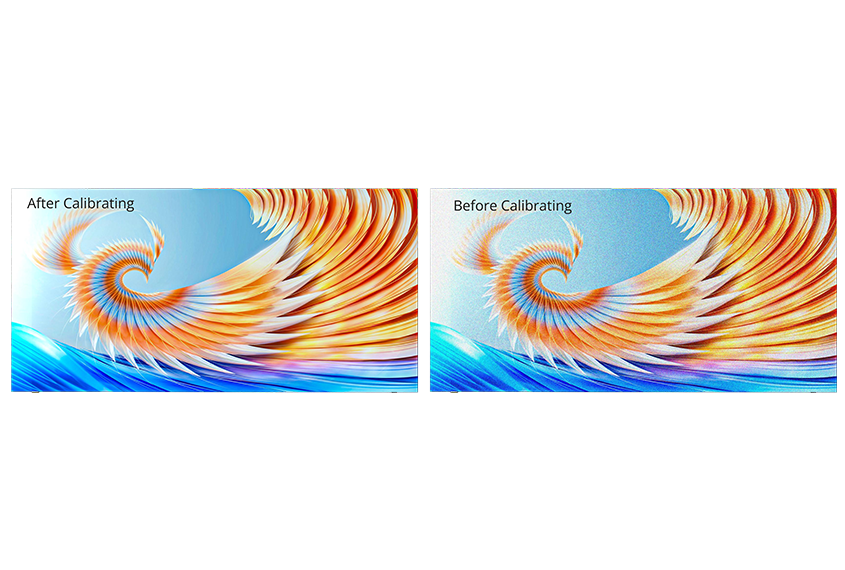

- Memory on Module management optional for color calibration - Automatic color calibration brings you a better visual experience. Intelligent module design automatically reads uploaded screen calibration data.

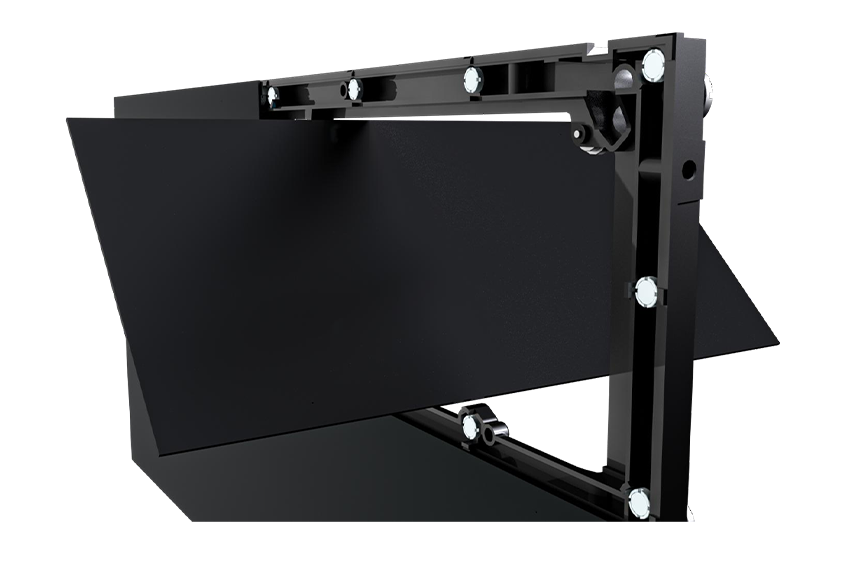

- LED Module Front & Rear Access
- Hard-pin connected modules Interchangeable left and right - Enable quick module install and replacement
- Energy Saving - Thanks to Integrated 3-in 1 Hub design >50% Power Consumption Saving 3-in-1 : ( Power supply + Receiving Card + Hub Board ) 21w/panel Average 100w/m² Average power consumption 75w /panel Maximum 300W /m² Maximum power consumption
- Accessories - Flat Wall Mounted Support Brackets Curved Wall Mounted Support Brackets Curved Stacking Installation Support Brackets Edge Cover Power Contribution Cabinet Controller
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 256x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 512x256dots |
| BRIGHTNESS | 400nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x320mm ( 25.19x12.59inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.49 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.538mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 208x104dots |
| CABINET PIXEL RESOLUTION ( H X W) | 416x208dots |
| BRIGHTNESS | 450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x320mm ( 25.19x12.59inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.49 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.86mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 172x86dots |
| CABINET PIXEL RESOLUTION ( H X W) | 344x172dots |
| BRIGHTNESS | 450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 640x320mm ( 25.19x12.59inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.49 lbs) |
| ACCESSIBILITY | Front & Rear Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |

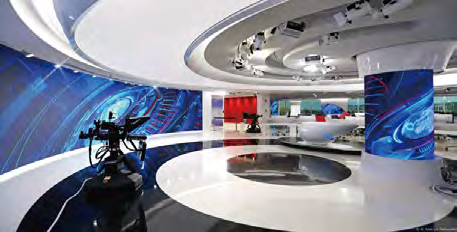

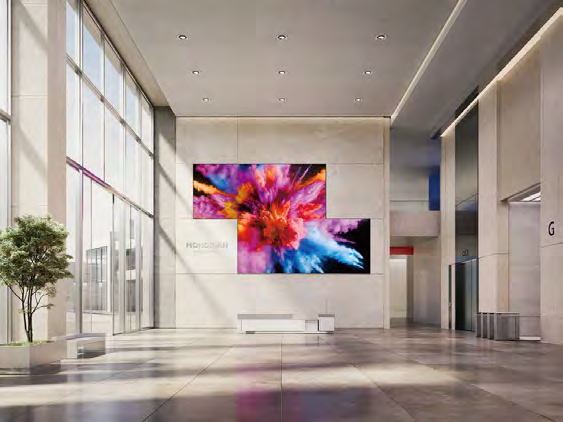

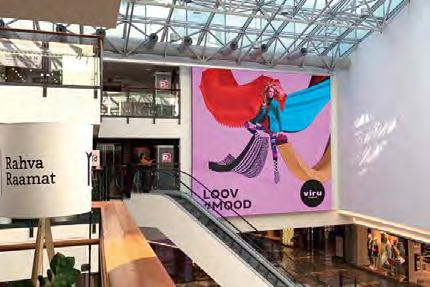

Applications
Contact Kings of Neon for expert advice on the S Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
