Kings of Neon SPRO-COB Series - Unparalleled Durability and Clarity

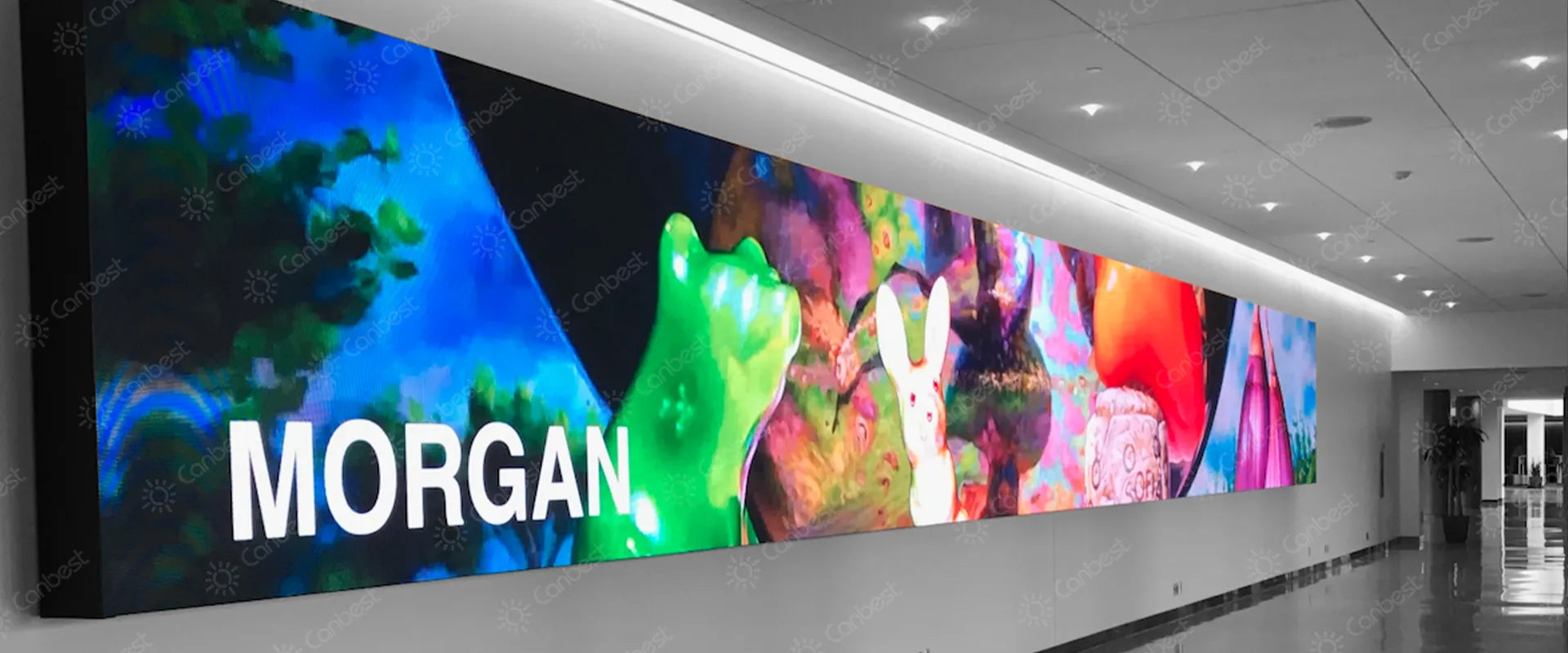

SPRO-COB Series micro led video wall brings you the ultimate in durability and interactive capabilities. With superior impact, dust, and moisture protection, these displays are designed for spaces where reliability and user engagement are key.

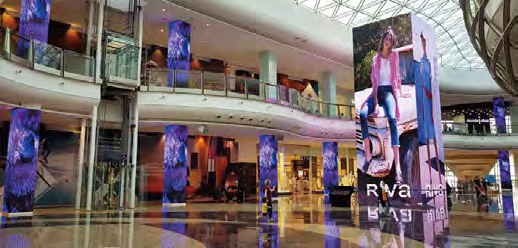

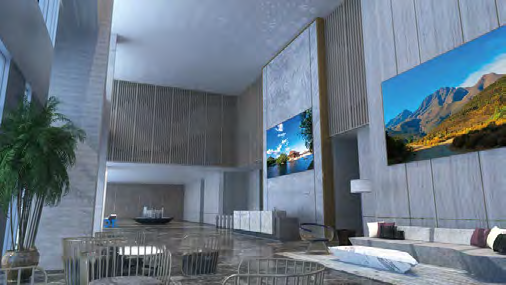

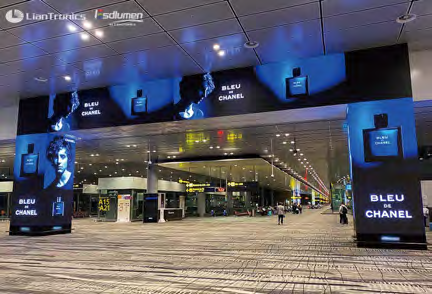

The COB (Chip on Board) technology enhances the resilience of LED panels, making them the ideal choice for high-traffic such as retail space, corporate environments, interactive exhibits, education and training, shopping mail.
SPRO COB Series features 10000:1 contrast ratio, up to 600nits and 170° viewing angle, delivering vivid image even in bright condition and the recommended pixel pitch is P0.7, P0.9 ,P1.25, P1.56 ,P1.875, catering to fine pitch needs for ultra-high-definition visuals
Key Features

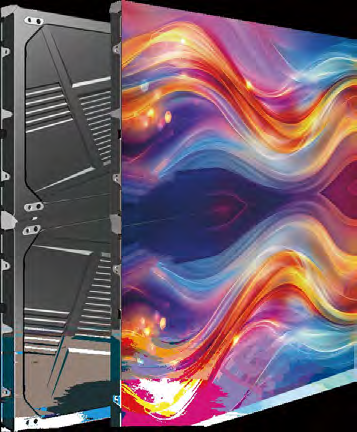

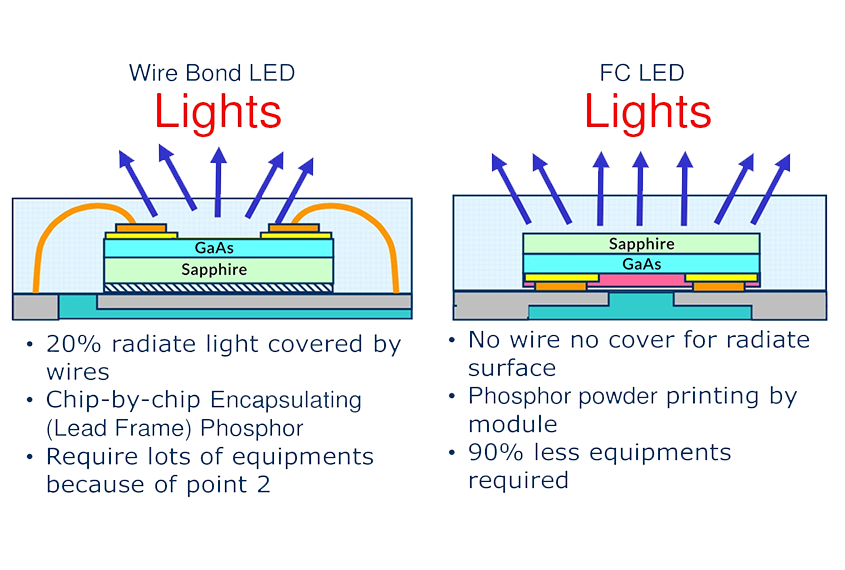

- Full Flip-chip COB Design - Module, receiving cards and power supplies can be maintained front, no maintenance channels needed ；Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable.
- 16:9 Golden Ratio - Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions

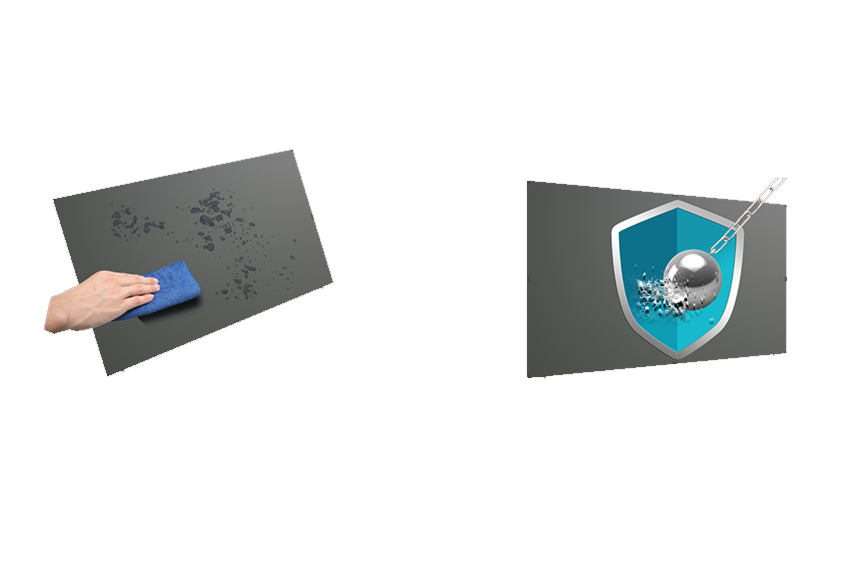

- High Protection Package Technology - can be cleaned directly with wet cloth, completely solve the damage caused by bumps, impacts, moisture, salt spray corrosion, electrostatic breakdown etc.
- 0.3mm Super thin glue, unique encapsulation tech - 0.3mm ultra-thin colloid Liquid glue + filling process long-term use, Non-deformation module, high consistency and high protection
- Three-in-one Integrated HUB With Front & Rear Access
- Totally Cable-less Connection - Modular design and work stable

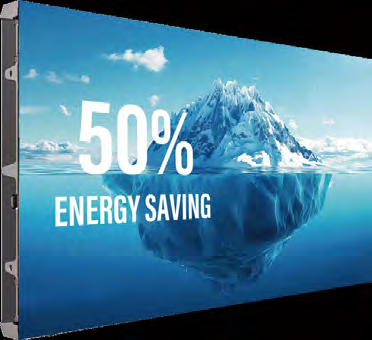

- Single Module Power Consumption 75W - P0.9 for common negative energy-saving design, P1.2 and above for common positive voltage divider design
- Multiple installation - Support aluminum base stacking, wall mounted
- Accessories - Flat Wall Mounted Supporting Bracket Curved Wall Mounted Supporting Bracket Curved Stacking Installation Supporting Bracket Video Controller Edge Cover Power Contribution Cabinet
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 170° |
| Contrast Ratio | 10000:1 |
Technical Specifications
| PIXEL PITCH | 0.7mm |
| PIXEL CONFIGURATION & PACKAGING | COB |
| MODULE PIXEL RESOLUTION (H x W) | 240x135dots |
| CABINET PIXEL RESOLUTION ( H X W) | 480x270dots |
| BRIGHTNESS | 400nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 0.9753mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 192x108dots |
| CABINET PIXEL RESOLUTION ( H X W) | 384x216dots |
| BRIGHTNESS | 400-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 240x135dots |
| CABINET PIXEL RESOLUTION ( H X W) | 480x270dots |
| BRIGHTNESS | 450-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 192x108dots |
| CABINET PIXEL RESOLUTION ( H X W) | 384x216dots |
| BRIGHTNESS | 400-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.875mm |
| PIXEL CONFIGURATION & PACKAGE | COB |
| MODULE PIXEL RESOLUTION ( H X W) | 160x90dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x180dots |
| BRIGHTNESS | 450-450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 3.4Kgs ( 7.71 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 20000:1 |
| WORKING TEMPERATURE | -20℃ ~ +40℃ |

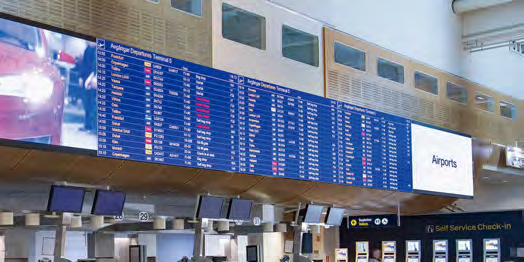

Applications
Contact Kings of Neon for expert advice on the SPRO-COB Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
