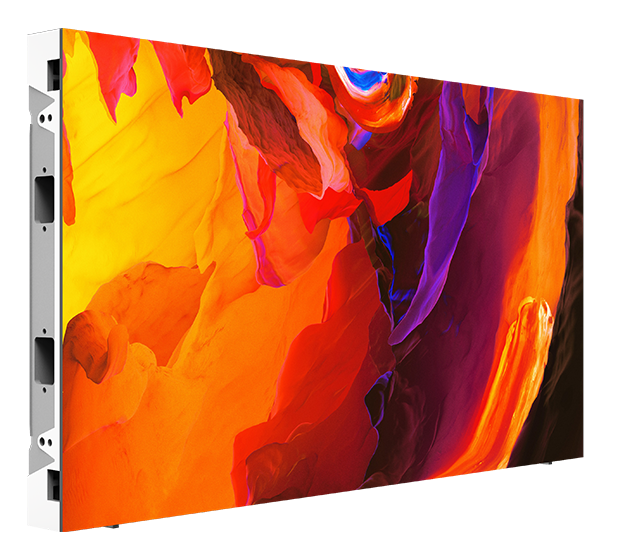

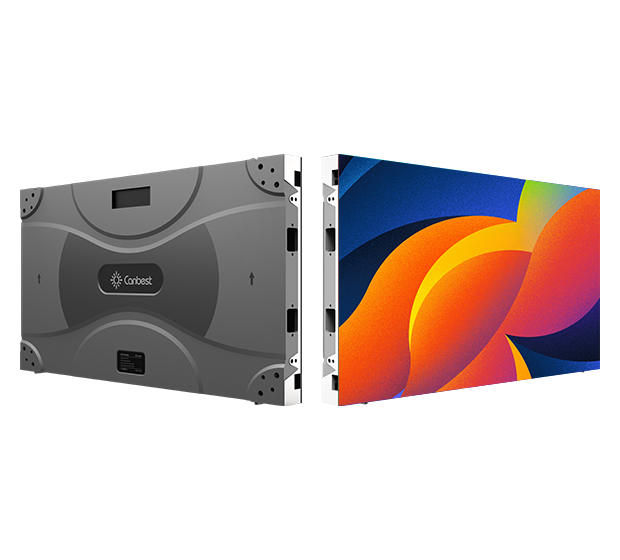

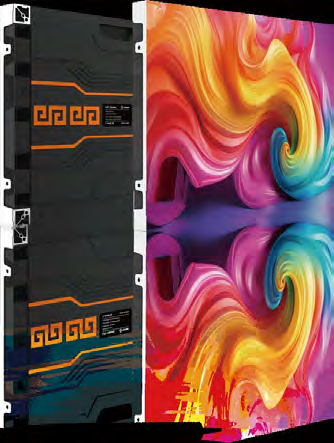

Kings of Neon U Series - Flagship 16:9 Cable-less Indoor LED Video Wall

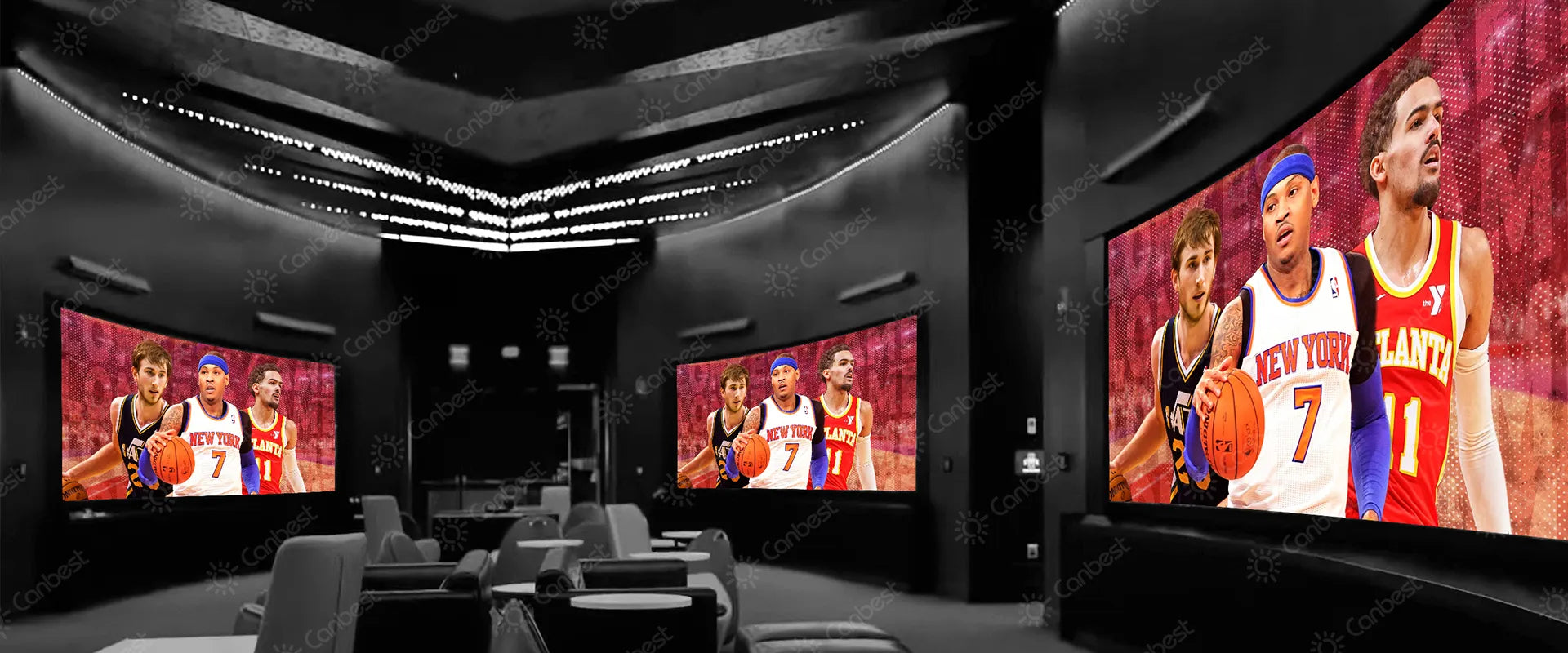

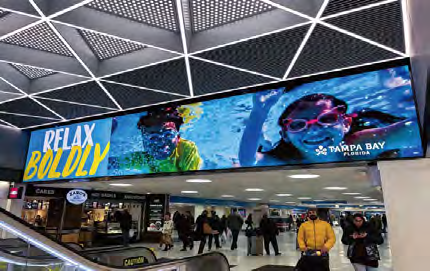

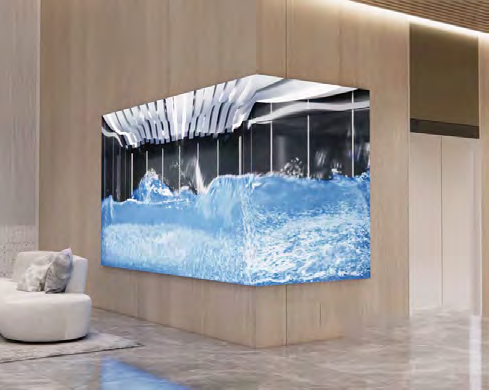

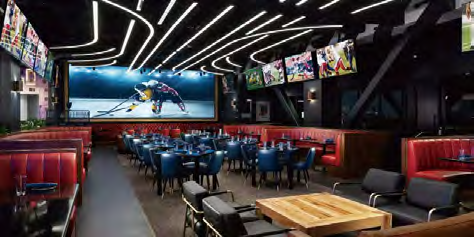

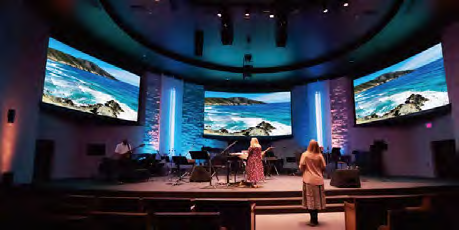

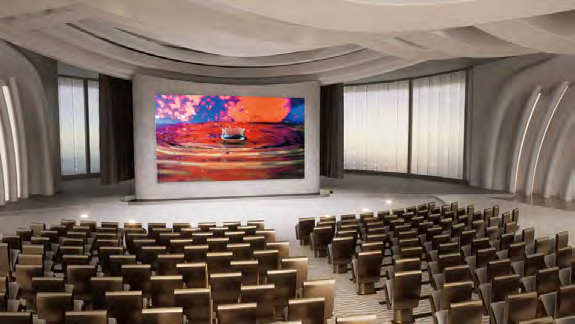

U Series LED Video Wall features products with a pixel pitch of less than 2.0 millimeters, which is better for applications with very short viewing distance, such as command & control room, conference rooms, lobbies, walk-up concourse displays, live-event monitors, retail stores, museum digitals, and much more.
U Series employ SMD and COB (Chip On Board) technology, allowing for super clear imagery and a widened viewing experience, making them the ideal choice for high-traffic and interactive environments.
Combined with the 16:9 ratio, U Series can reach 2K 4K resolution easily with excellent performance in high definition, color performance and stability.
In addition to a range of pixel densities, our U Series are also available in curved installation, and other custom-engineered solutions to fit any application.
Key Features

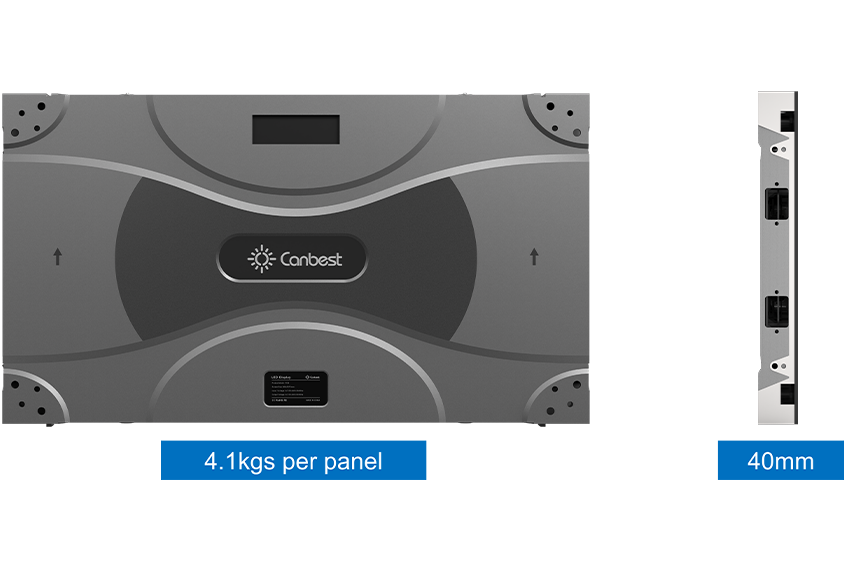

- Ultra Slim & Lightweight Design
- Complete Package Available - Module, receiving cards and power supplies can be maintained front, no maintenance channels needed ；Greatly improving the installation efficiency, also it will reduce the occurrence of some problems caused by cable.
- 16:9 Golden Ratio - Standard 27.5" Size FHD/4K Pixel to Pixel Resolutions

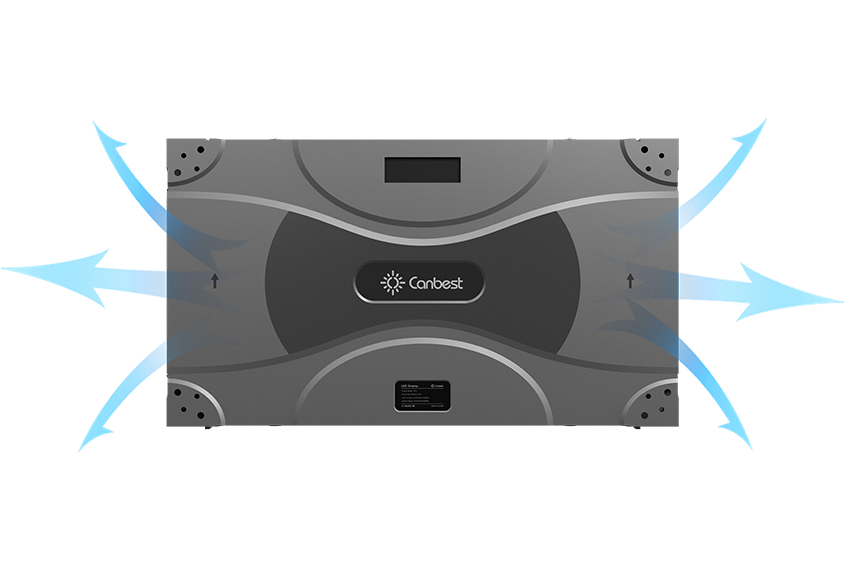

- Highly Efficient Heat Dissipation - Ensuring all components working normally and prolong the lifespan of led screen.

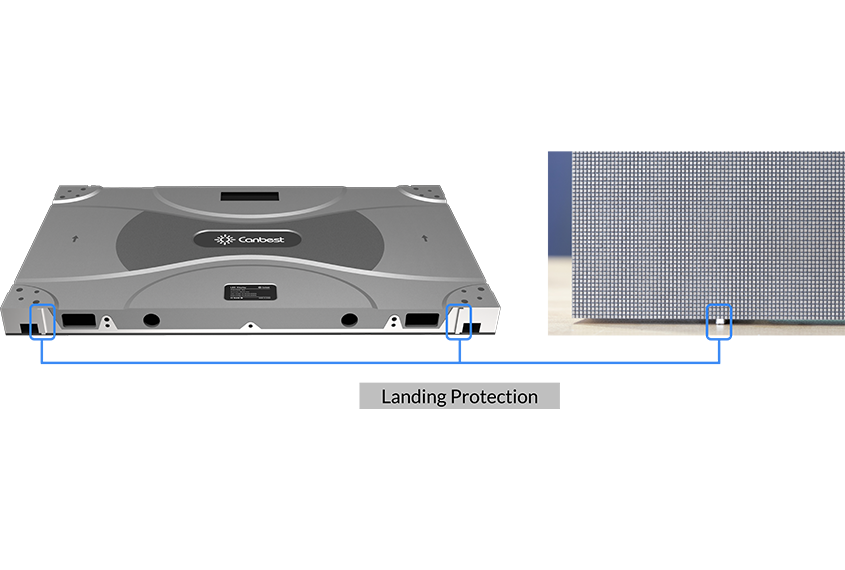

- Landing Protection Design - Dual landing touch smooth and steady anti-collision

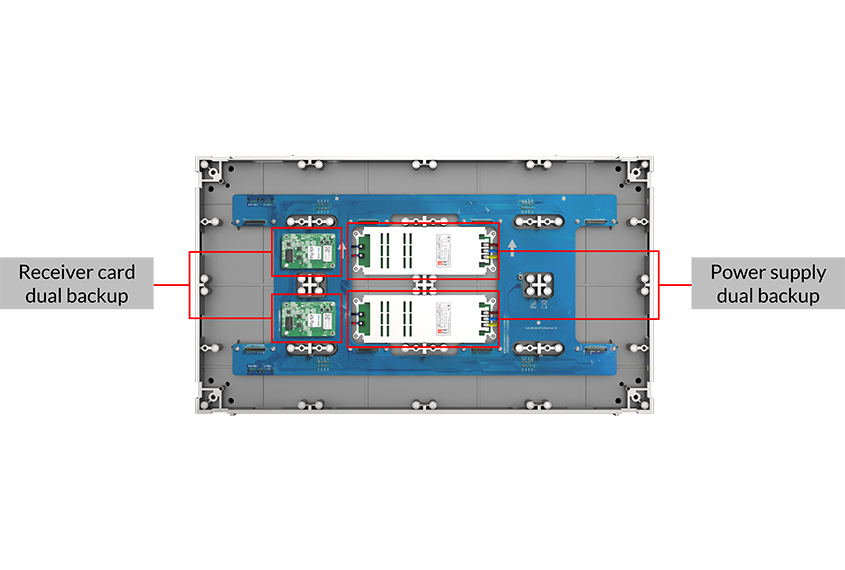

- Dual Power & Data Backup Optional - Suitable for important occasions to ensure that the LED display works normally

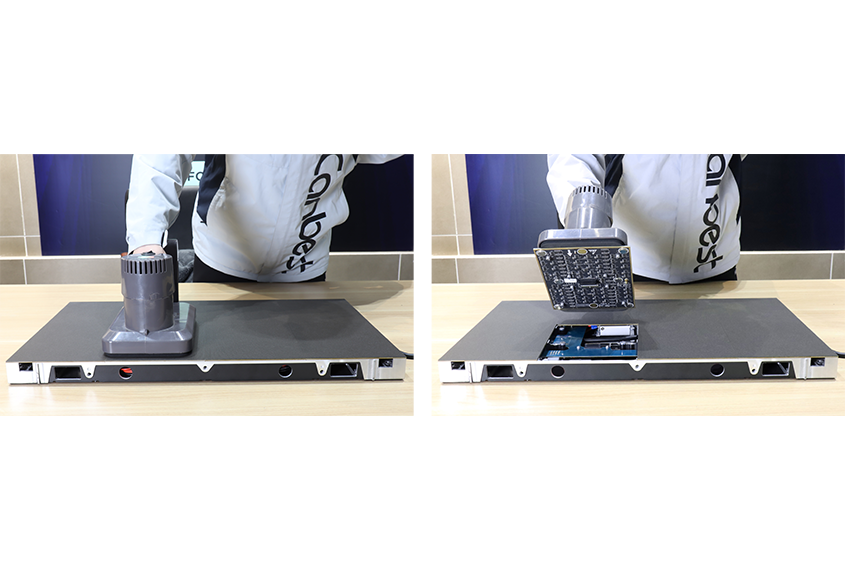

- Totally Front Maintenance - No need with back maintenance channel, saving installation room and structure cost
- Hidden Cables Among Cabinets - Tidy and clean appearance
- Various Installation - Support Wall mounted, curved installation, steel base stacking
- Accessories - Flat Wall Mounted Support Bracket Curved Wall Mounted Support Bracket Curved Stacking Installation Support Bracket Edge Cover Power Contribution Cabinet Control System
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 0.9375mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 160x180dots |
| CABINET PIXEL RESOLUTION ( H X W) | 512x384dots |
| BRIGHTNESS | 450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 4.7Kgs (10.36lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 256x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 480x270dots |
| BRIGHTNESS | 450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 4.7Kgs ( 10.36lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 208x104dots |
| CABINET PIXEL RESOLUTION ( H X W) | 384x216dots |
| BRIGHTNESS | 450nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 4.7Kgs ( 10.36lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000:1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.875mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 172x86dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x180dots |
| BRIGHTNESS | 600nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 600x337.5mm (23.62x13.28 inch) |
| CABINET WEIGHT | 4.7Kgs ( 10.36lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
Applications
Contact Kings of Neon for expert advice on the U Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
