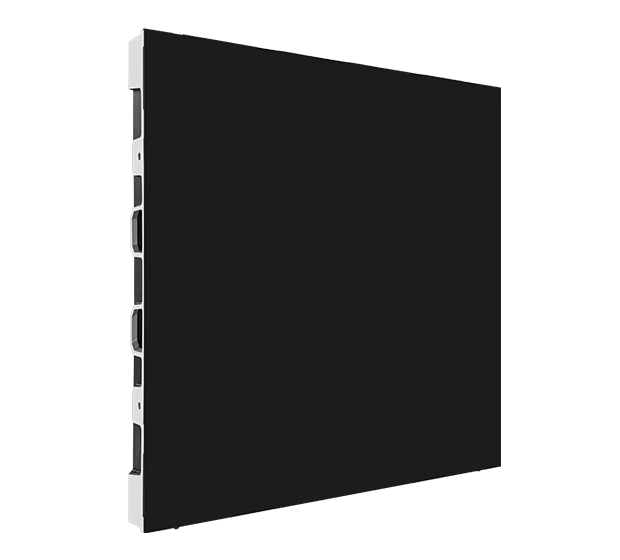

Kings of Neon V Series - Multi-size Indoor LED Video Wall
The V Series offers a variety of panel sizes, including 250*500mm, 500*500mm, 500*1000mm, and 250*1000mm, and supports pixel pitches of P1.2, P1.5, P1.9, P2.6, and P2.9, making it an ideal choice for Indoor fine pitch display applications.

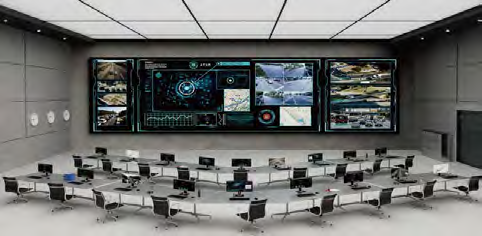

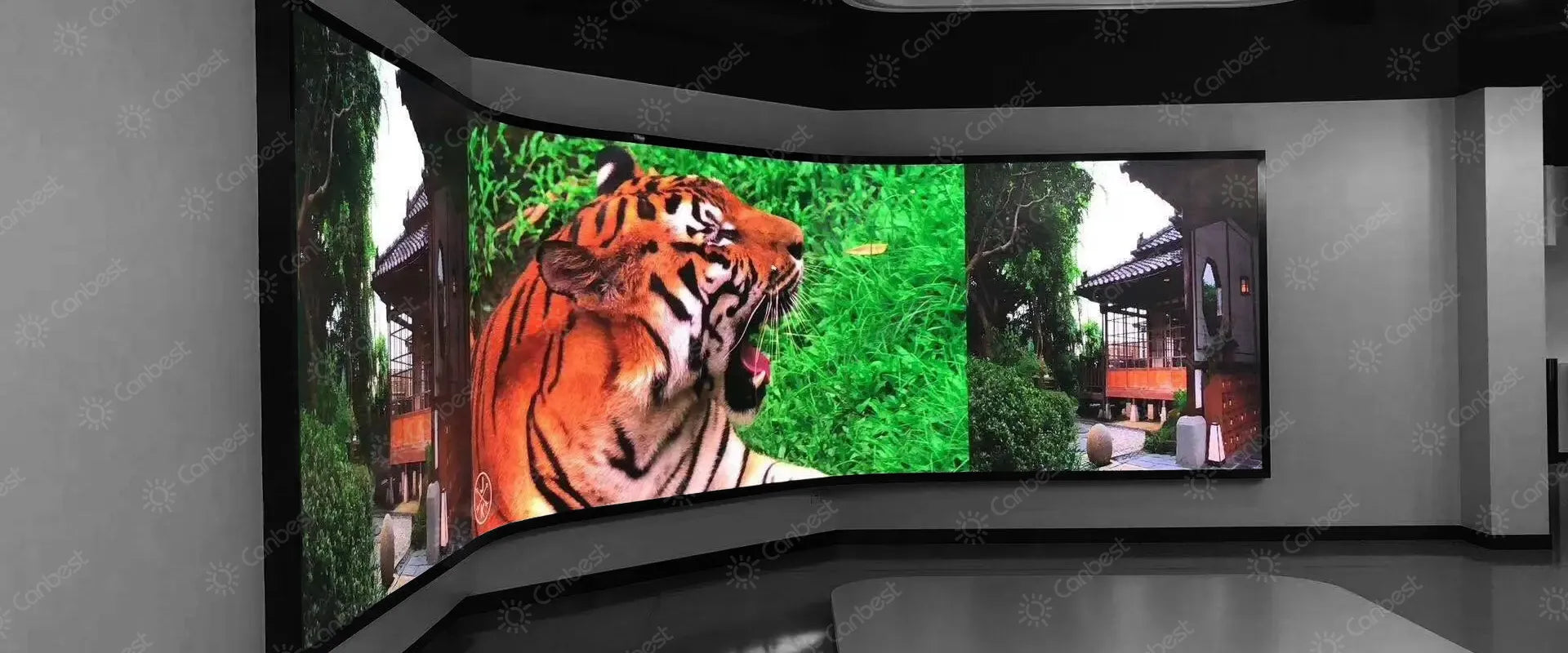

Designed to deliver exceptional image clarity and sharpness, the V Series panels cater to environments where high-definition visuals and precision are critical. These include retail solution, control rooms, corporate environments, TV studios, conference halls, and other professional venues that require high-resolution, fine-pitch displays.

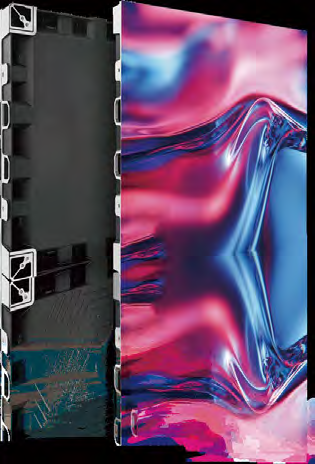

Thanks to its slim design with die casting aluminum material, V series supports rightangle installation, Cube installation, hanging installation with double sided to meet any requriment.
The versatile range of pixel pitches and panel sizes allows for flexible configuration, offering seamless integration into different spaces and ensuring a high level of visual performance. Whether for detailed data presentation, immersive video playback, or any other demanding visual application, the V Series provides a top-tier display solution tailored to diverse professional environments.
Key Features
- Ultra Slim & Lightweight Design - Easy to operate, also saving installation cost and transportation cost
- SMD / GOB / COB Optional - Thanks to the various technology for digital displays, SMD,GOB or COB will be widely recommended according to the application

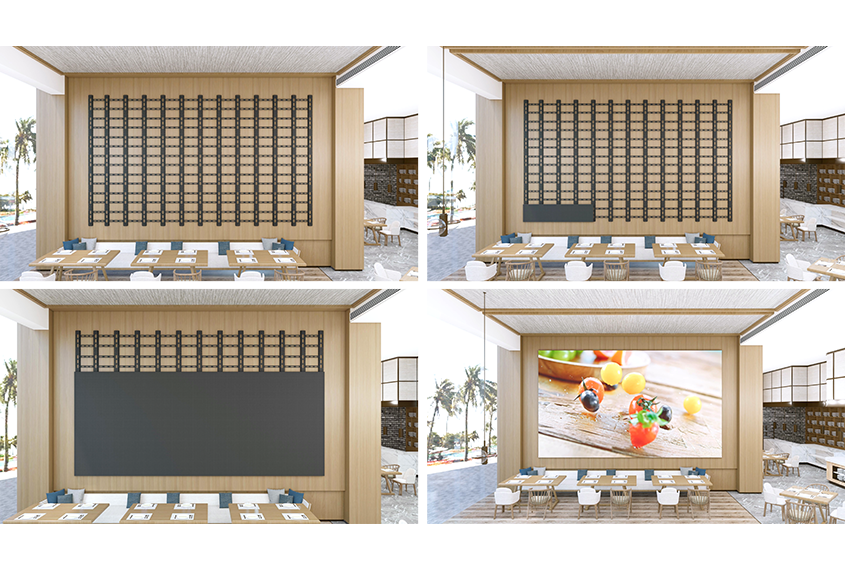

- Complete Package Available - Ready-made brackets, ensuring the whole screen flat and seamless; Easy installation.

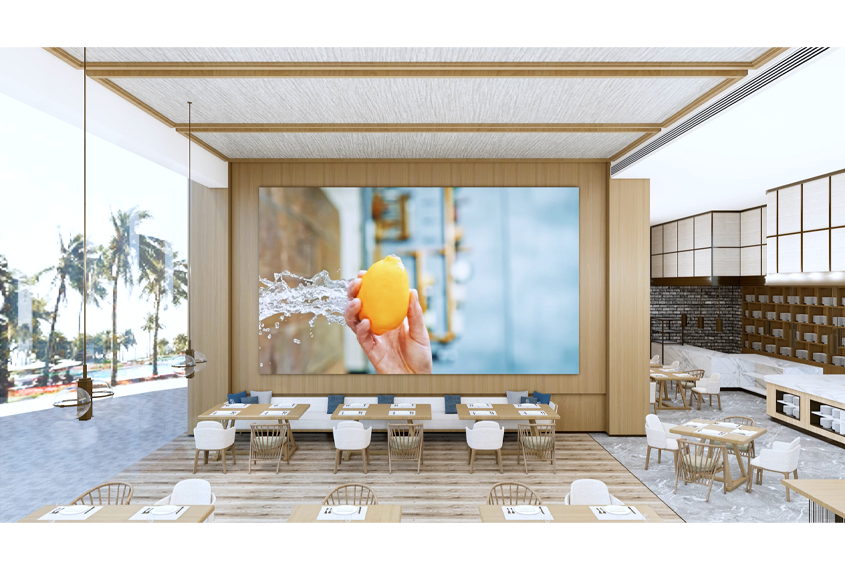

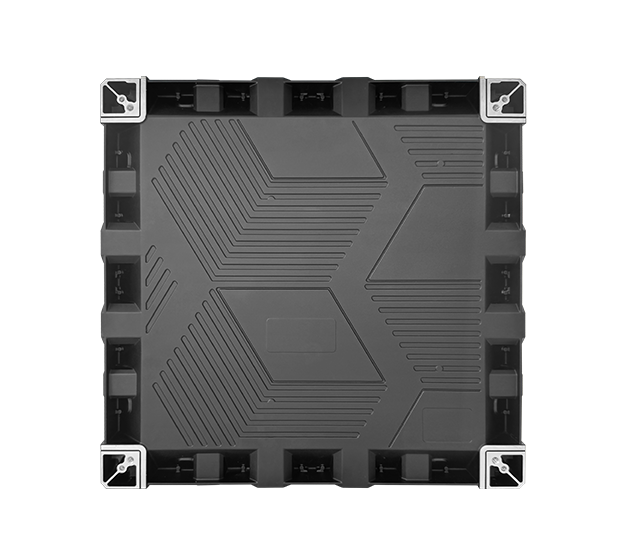

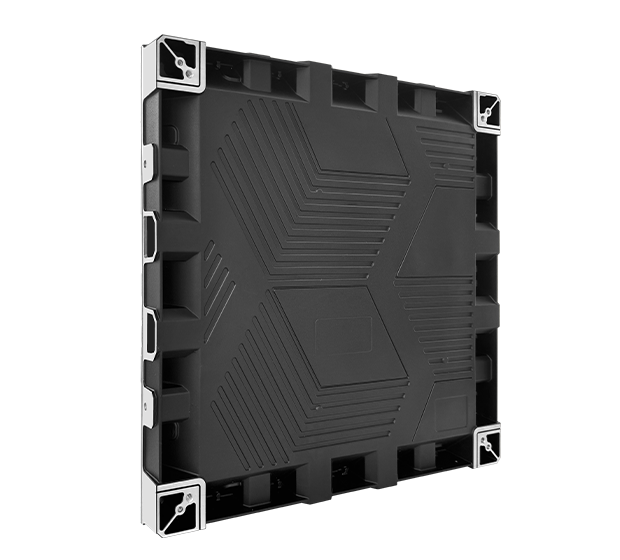

- Super Flatness with die casting aluminum cabinet - Die-casting aluminum frame with super flat installation, close viewing is not easy to produce visual granularity
- Small Pixel Pitch - Infinite Display - The V Series features a cabinet seamlessly into display 2K to 4K ,for a truly expansive and engaging visual experience.

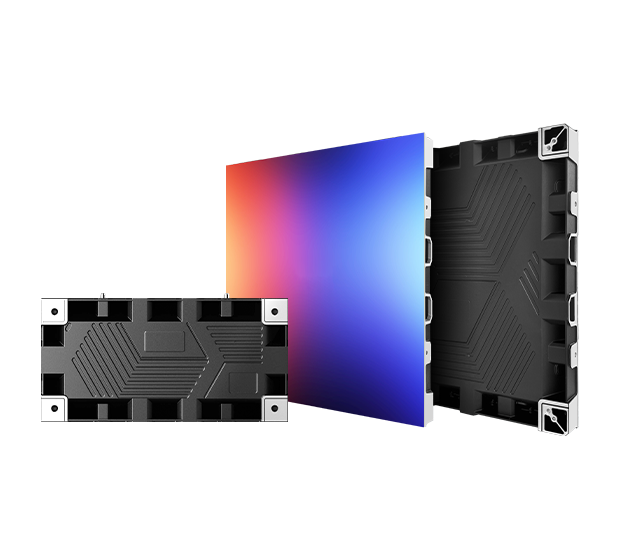

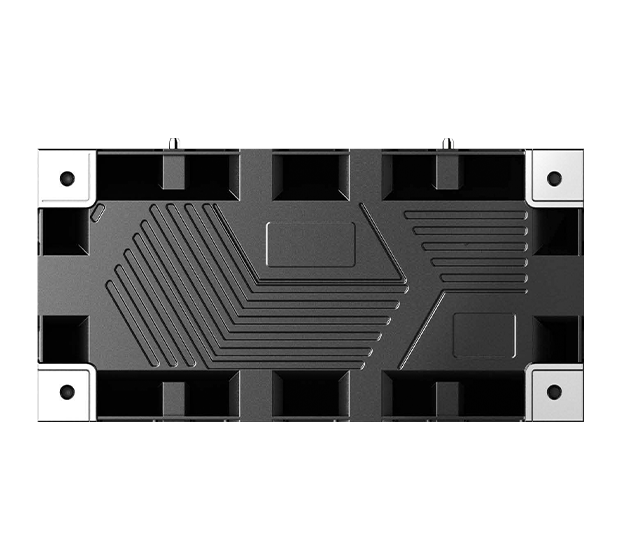

- Flexible Splicing with Multiple Panel Size - 500*500mm/500*250mm/250*500mm ,500*1000mm, 250*1000mm can assembly into different sizes and various shape

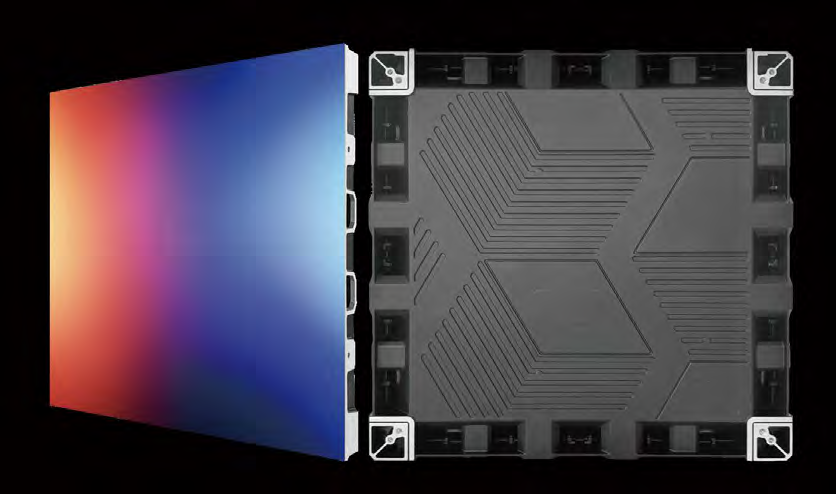

- Cable-less Connection - cable-less design, high stable work performance and tidy inner connection ,also easy replacement for module maintenance

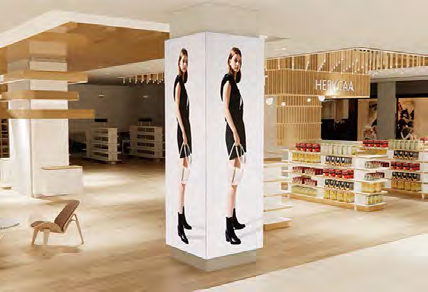

- Right-angle Installations - Thanks to the die casting aluminum, the cabinet supports bevel shape, enabling various splicing methods such as right-angle and cube installations, creating more possibility of indoor applications.
- Accessories - Flat Wall Mounted Supporting Brackets Curved Wall Mounted Supporting Brackets Curved Stacking Installation Supporting Brackets Control System Edge Cover Power Contribution Cabinet
Performance Specifications
| Refresh Rate | 3840HZ |
| Brightness | 1000NITS |
| Colour Capability | 281 Trillion |
| Viewing Angle | 140° / 140° |
| Contrast Ratio | 5000:1 |
Technical Specifications
| PIXEL PITCH | 1.25mm |
| PIXEL CONFIGURATION & PACKAGING | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION (H x W) | 200x200dots |
| CABINET PIXEL RESOLUTION ( H X W) | 400x400 dots | 800x200 dots | 200x400dots | 800x400dots |
| BRIGHTNESS | 600-700nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500*500mm |1000*250mm | 250*500mm | 1000*500*mm |
| CABINET WEIGHT | 6.5Kgs ( 14.33 lbs) |
| ACCESSIBILITY | Front Access |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.5625mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 160x160dots |
| CABINET PIXEL RESOLUTION ( H X W) | 320x320dots | 640x160dots | 160x320dots | 640x320 dots |
| BRIGHTNESS | 600-700nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500*500mm |1000*250mm | 250*500mm | 1000*500*mm |
| CABINET WEIGHT | 6.5Kgs ( 14.33 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 1.953mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 128x128dots |
| CABINET PIXEL RESOLUTION ( H X W) | 256x256dots | 512x125dots | 128x256 dots | 512x256dots |
| BRIGHTNESS | 600-700nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500*500mm |1000*250mm | 250*500mm | 1000*500*mm |
| CABINET WEIGHT | 6.5Kgs ( 14.33 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |
| PIXEL PITCH | 2.604mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 96x96dots |
| CABINET PIXEL RESOLUTION ( H X W) | 192x192dots | 384x96 dots | 96x192dots | 384x192dots |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500*500mm |1000*250mm | 250*500mm | 1000*500*mm |
| CABINET WEIGHT | 6.5Kgs ( 14.33 lbs) |
| ACCESSIBILITY | Rear Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃`+40℃ |
| PIXEL PITCH | 2.976mm |
| PIXEL CONFIGURATION & PACKAGE | 3 in 1 SMD |
| MODULE PIXEL RESOLUTION ( H X W) | 84x84dots |
| CABINET PIXEL RESOLUTION ( H X W) | 168x168dots | 336x84dots | 84x168dots | 336x1638dots |
| BRIGHTNESS | 1000nits |
| REFRESH RATE | 3840Hz |
| CABINET SIZE | 500*500mm |1000*250mm | 250*500mm | 1000*500*mm |
| CABINET WEIGHT | 6.5Kgs ( 14.33 lbs) |
| ACCESSIBILITY | Front Acess |
| IP RATING | IP30 |
| CONTRAST RATIO | 5000：1 |
| WORKING TEMPERATURE | -20℃~+40℃ |

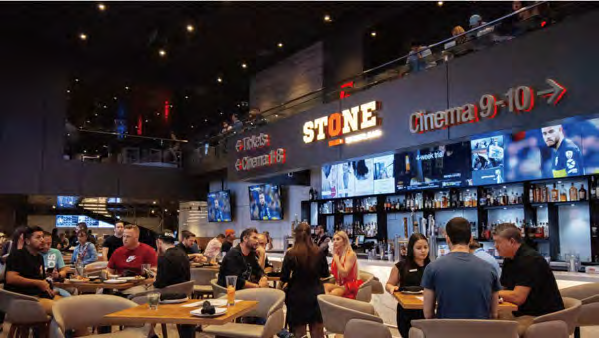

Applications
Contact Kings of Neon for expert advice on the V Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
