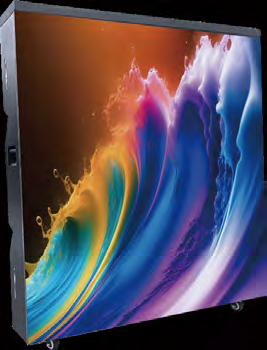

Kings of Neon WHALE Series - Ideal For Coastal & Seaside Application

The WHALE Series LED display is engineered specifically for harsh, high-corrosion environments such as seaside resorts, marinas, swimming pools, waterfront advertising, and coastal cities. Built with corrosion-resistant coating materials and advanced processing treatments, it features a fully sealed aluminum cabinet with an IP66 rating, ensuring exceptional durability against moisture, salt, and dust.

With high brightness levels of up to 12,000 nits, the WHALE Series delivers outstanding visibility even in direct sunlight. Its advanced thermal management system enhances long-term reliability, while its energy-efficient design makes it a smart choice for sustained outdoor use.

Available in pixel pitches of P5.7, P6.7, P8, and P10, and a panel size of 960×960mm, the display offers both front and rear maintenance options, making it easy to install and service. The WHALE Series is the ideal solution for outdoor digital signage in the most demanding coastal and high-humidity environments.

Key Features

• Black nano antioxidant coating - Special black nano-coating against strong light and ultraviolet environment on the sea side, effectively preventing the cabinet from discoloration and oxidation, protecting the appearance and strength of the product and enhancing its service life.
• Nano-coating for led lamp beads - The special nano-coating of LED lamps substantially improves the waterproof performance of the LED lamps, effectively preventing the LED lamps from moisture, dead lamps, false soldering, oxidization of solder wires and other problems caused by the high humidity and high salt environment at the seaside, so as to enhance the stability of the product.
• Multilayer Conformal Coating - All display adapter boards and power adapter boards of whale series are protected by super-strong multi-layer triple-proof paint, which prevents the electronic components from contacting with the humid air on the seashore and improves the stability of the products.
• All components are corrosion-resistant - Power Supply, Mask, Locker, Screws, Pins After 72hours Salt Spray Test Test Area Appearance ■No discoloration Test Area Inner coating ■No corrosion
• High Flame Retardant Silicone Wire - High quality Silicone wire can withstand high temperature up to +200 degrees All power cable terminal interfaces are reinforced with anti-loose glue to ensure 100% zero power transmission faults.
• Corrosion-Proof - Salty Test For 72 Hours, Lamp bead dead rate: 0%
• Excellent Performance for Harsh conditions - Ideal for extremely cold and hot, seaside, swimming pool etc. applications

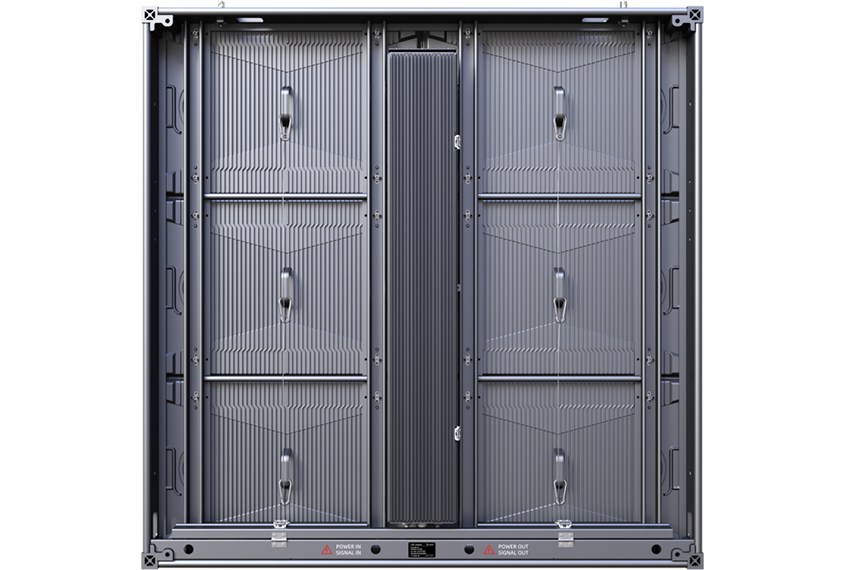

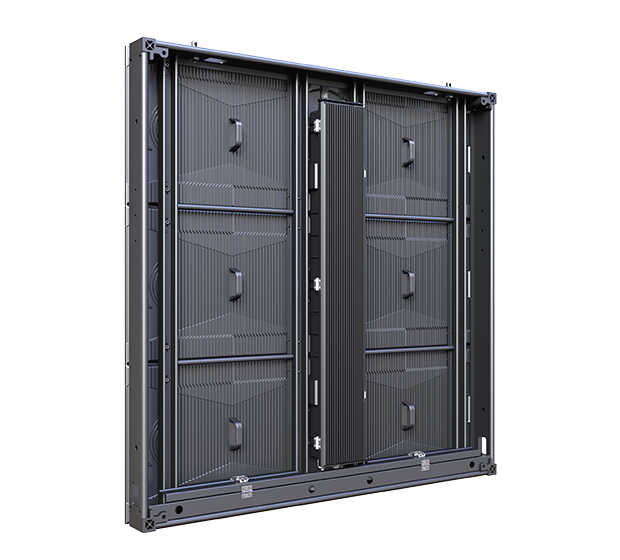

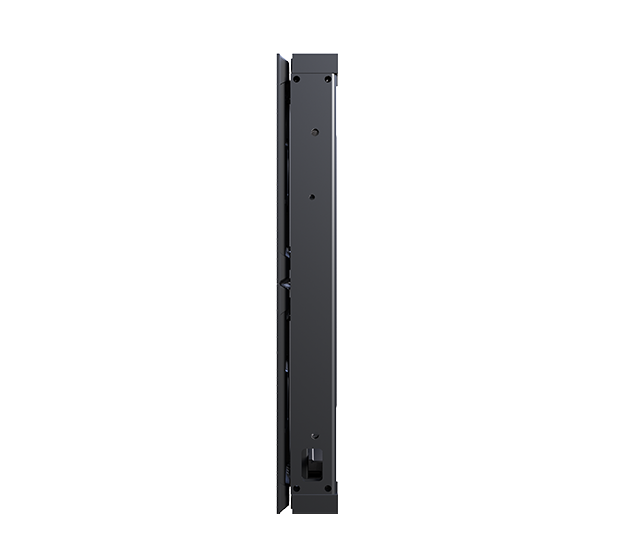

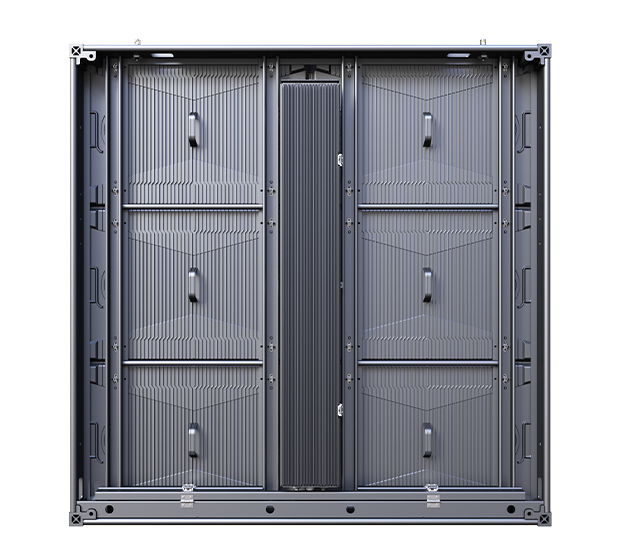

• Full Aluminum, Lightweight & Corrosion-proof - Light weight, full aluminum panel 28kg/㎡ with thickness is 75mm; Pure black panel, more resistant to rust Support full front or full rear maintenance, front maintenance can be installed directly on the wall;
• Super High Brightness - High brightness more than 10,000nits with light decay ≤5%, and it is still as new after 5 years
• Super Energy Saving - 10,000 brightness, white balance corresponding to the maximum power consumption of 550w, Low heat, good heat dissipation, no need for air conditioning;
• Super Stable - Engine cooling technology - Energy-saving design, low heat; All aluminum bottom shell products, good heat dissipation; Using engine principle heat dissipation technology, high heat dissipation efficiency; The supply of big-brand raw materials, after undergoing strict high and low temperature tests, the products are stable as before Wireless connection, higher stability than 5V cable connection;

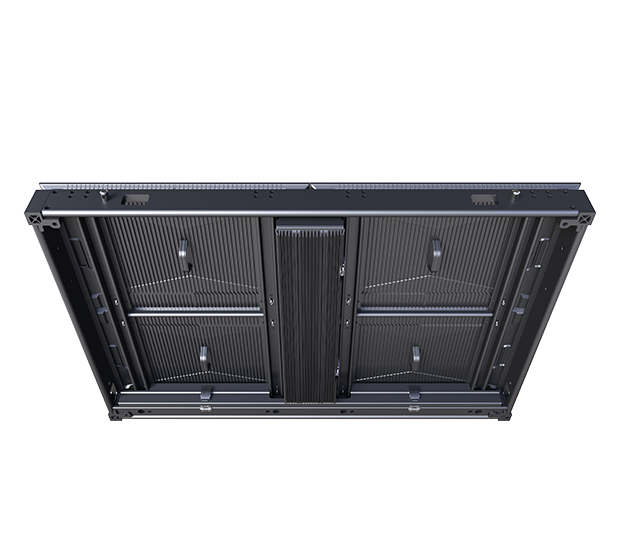

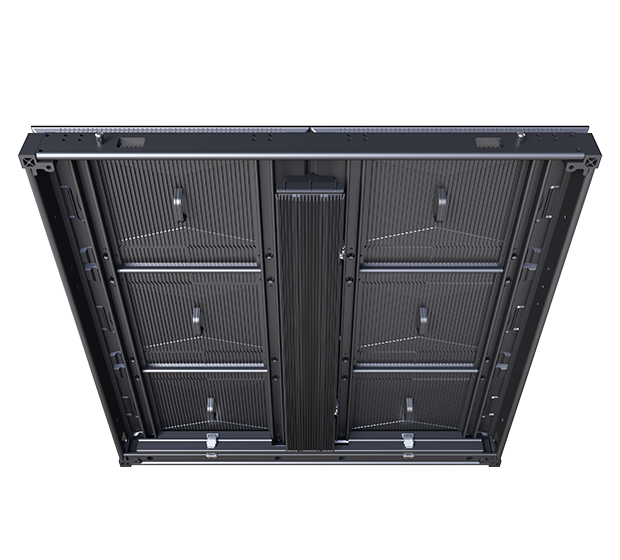

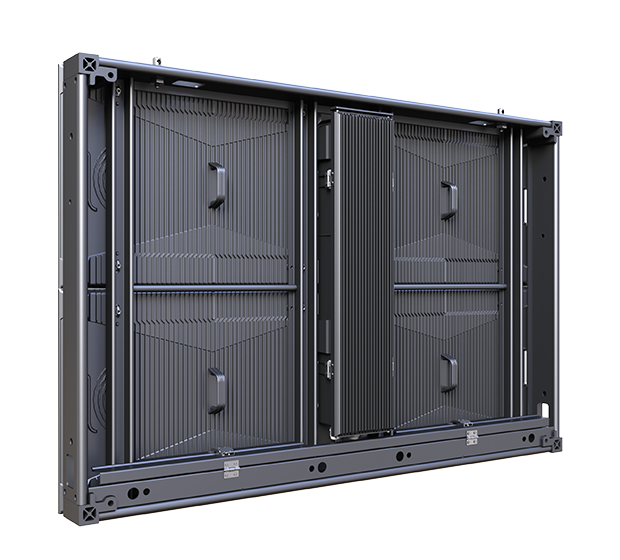

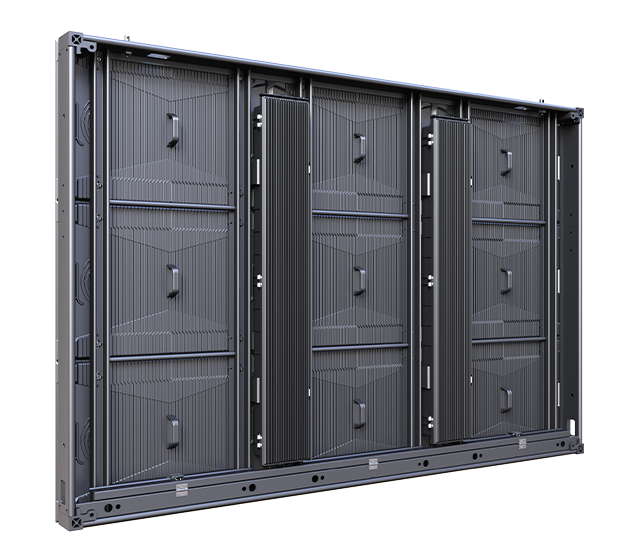

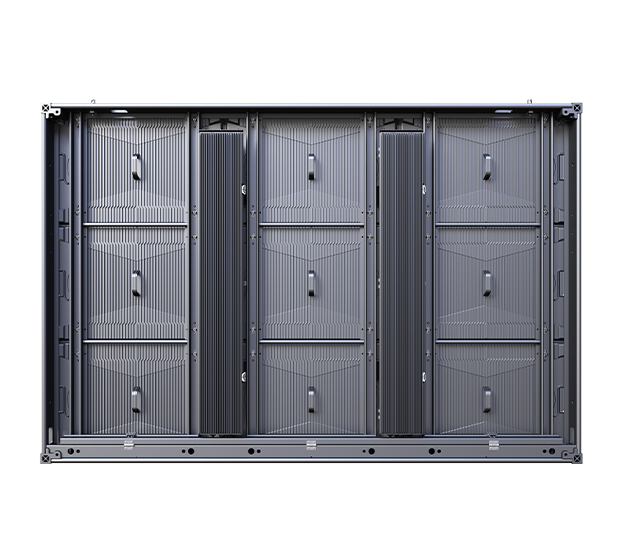

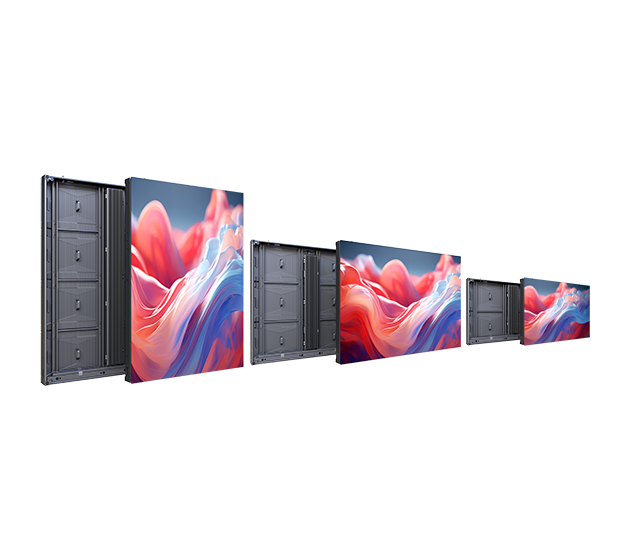

• Multiple sizes - Available: 960*640/960*960/1440*960/ 960*1280mm

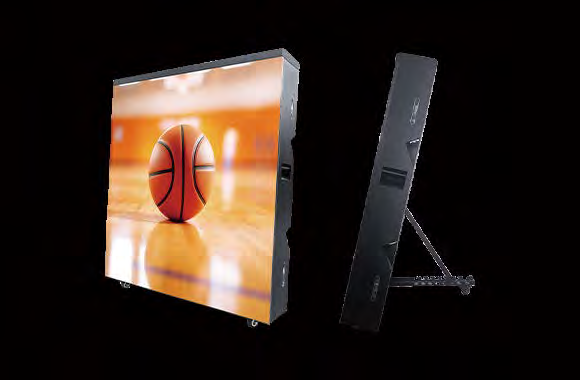

• Accessories - Single Sided and Double Sided Structure with Pole V Shape LED Structure with Pole Roof Mounted Structure Wall Mounted Structure for Front Service Wall Mounted Structure for Naked-Eye Solution Wall Mounted Structure for Rear Service

Performance Specifications

Technical Specifications

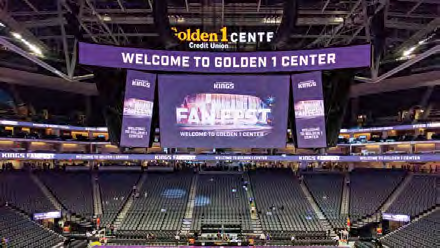

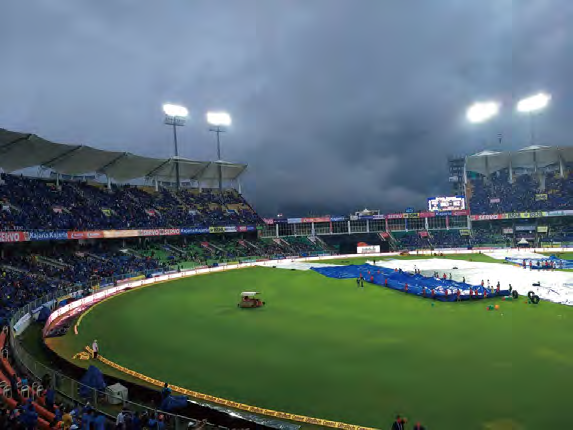

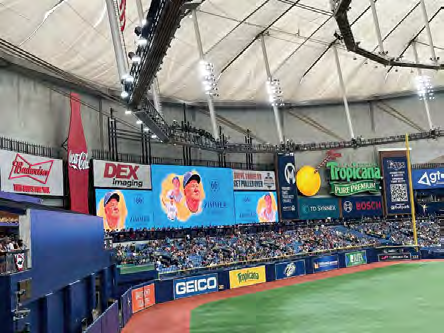

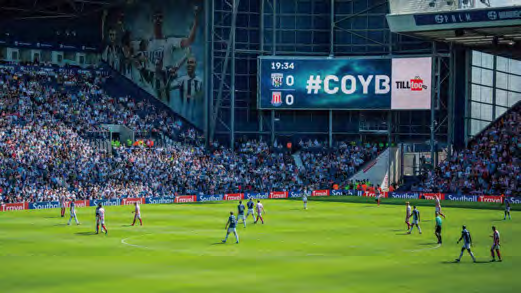

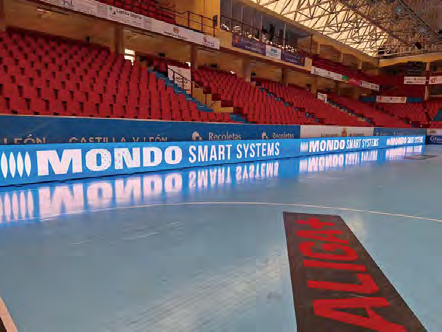

Applications

Contact Kings of Neon for expert advice on the WHALE Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
