Kings of Neon XS Series - NEVER Black Screen ( Black Lamps Option)

XS Series- Indoor & Outdoor Smart Modular LED Displays for Events

-Digital comunication and visual entertaiment with top quality modular led displays Indoors & Outdoors

XS Intelligent ledwall is a product designed for mid-to-high-end rental scenarios, featuring advanced non-blackout PST (Power Share Technology) circuit design and PMS (Power Monitoring System) intelligent power monitoring system. In the XS series, if one power unit fails, other redundant power supplies can automatically take over, ensuring continuous and stable operation of the display. This redundancy not only enhances system reliability but also allows for seamless switching in the event of a failure, preventing blackouts.

The PST technology is equipped with the PMS intelligent monitoring system, which can monitor the operating status and load conditions of each power module in real-time. Upon detecting any anomalies or failures in a power module, the system promptly adjusts, ensuring normal power supply through load balancing control and redundancy switching. It also provides alerts to the operator about the damaged power location via software, facilitating easy identification and replacement.

The power load balancing and redundancy in PST+PMS technology ensure that the XS display maintains stable and continuous display performance even in the event of power failure or load imbalance, preventing blackouts and other display interruptions.

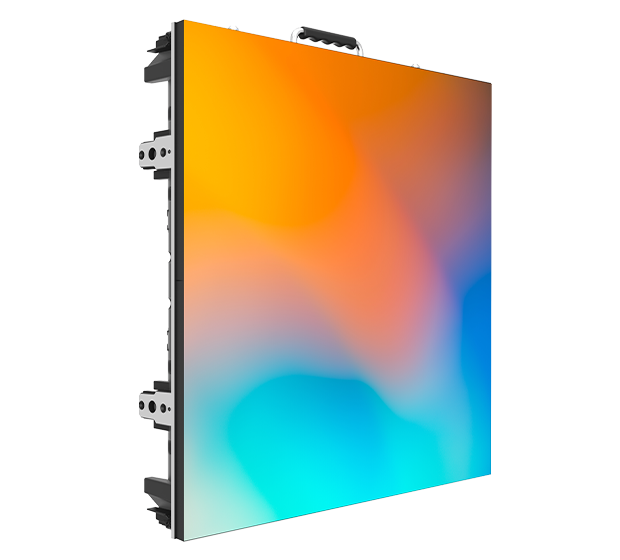

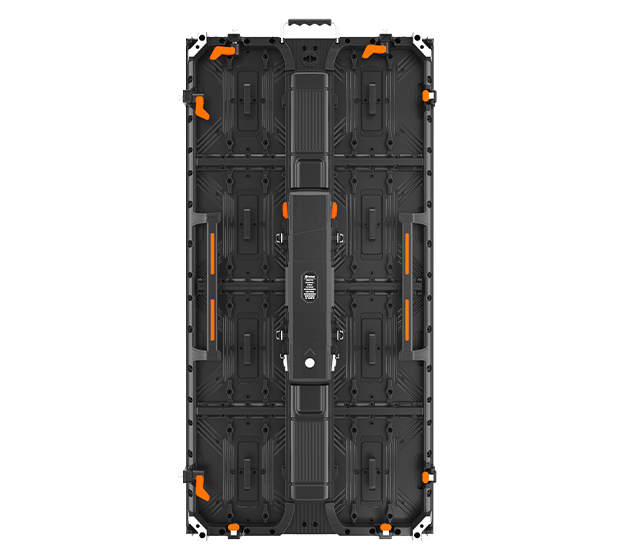

The modular LED cabinet design lets you create video walls to suit any content and physical space, and the pixel pitch available for XS Series is P1.9 P2.6 p3.9-500x500mm and 500x1000mm panel size.

Key Features

• Never Black Screen with Power Sharing Technology (PST) - When the AC circuit breaks down, the LED screen can be powered by the DC power of adjacent LED panel , preventing the power failure and keep led screen working normally and stably, Our PST technology enable the whole panels reach “ Never Black Screen”, which is preferred for some important applications.
• 1 Second Detection - Our PMS system can monitor the working status of all power supply in real time. When any failure detected, the system will automatically locate the faulty and notify the operator ,so that they can get replaced easily, improving troubleshooting efficiency, saving operation costs.

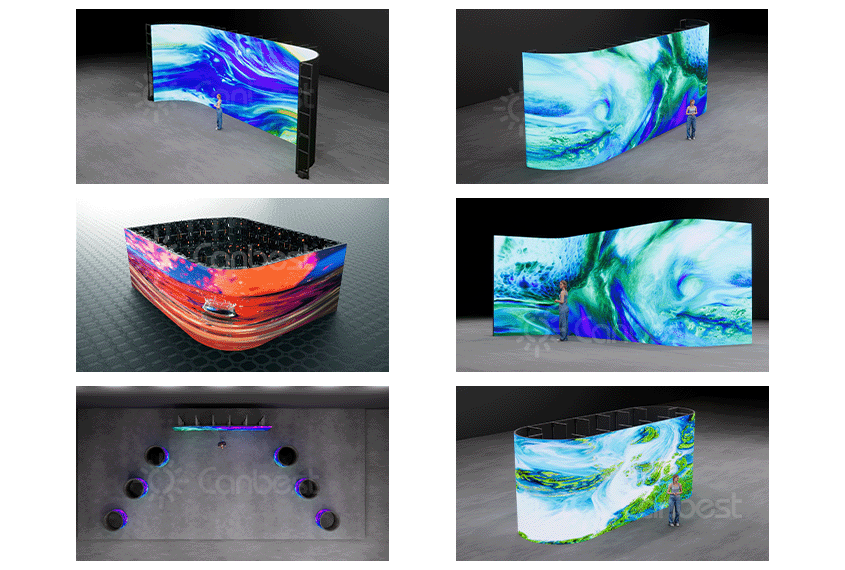

• Mutually Splicing for Creative Design - The XS series with Regular, flex, and 90-degree angle. Easy to build and fix. can compete with the XSC series , which has a very strong expandability. can greatly meet the needs of creative display.

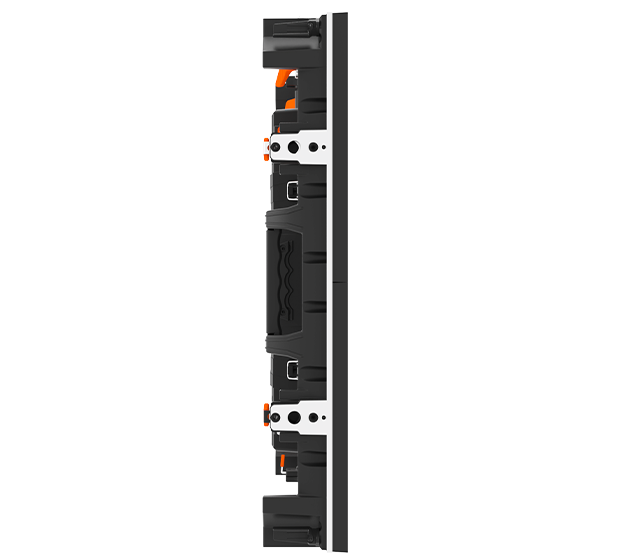

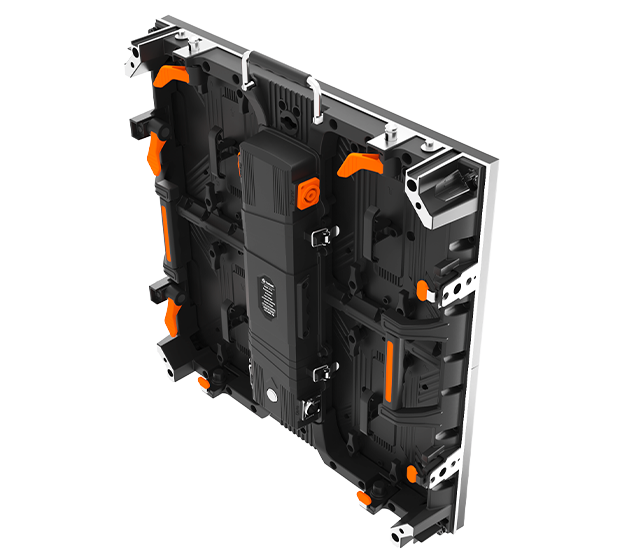

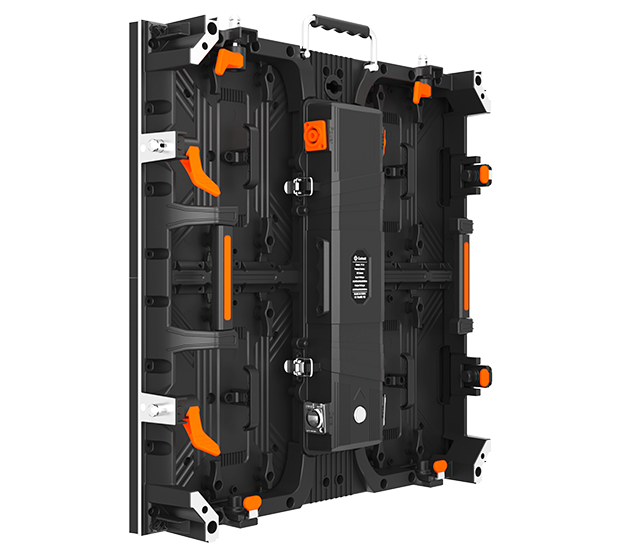

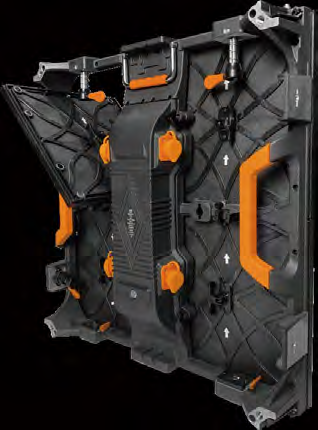

• Modular Design Enables Hassle-Free Maintenance - Supporting both front and rear serviceability, universal modules enable to be used left and right in common to reduce spare cost; Highly integrated power box allows maintenance separately and easily.
• Perfect and Stunning Visuals with 7680Hz - With a brightness up to 1000nits, 16bit grayscale, up to 7680Hz at least refresh rate, the XS Series offer outstanding visuals in display quality, captivating audiences with its working performance.​

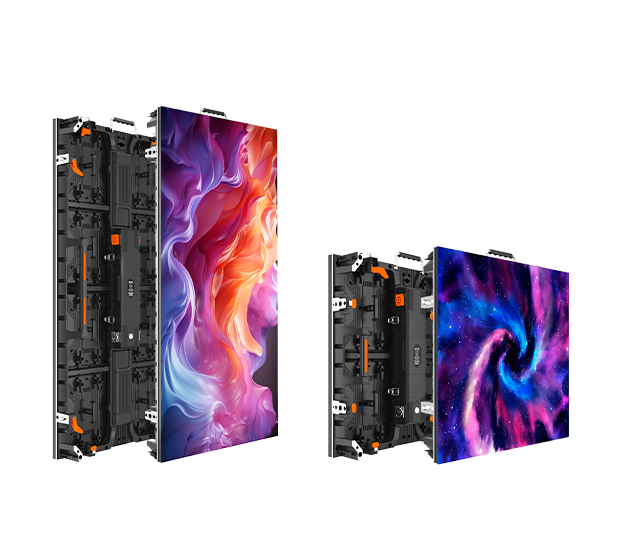

• Mixed and Match - 500x500mm and 500x1000mm cabinets can be easily connected horizontally and vertically for different configurations.
• Fast Locking System, Quick Assembly and Disassembly - The XS series features a fast locking system with an instant feedback mechanism and magnets on the top and bottom of the modulars,allowing the operator to set up quickly.
• Perfect 90° Installation - 45° bevel is optional to splice L shapes and cubes to realize more creativity.

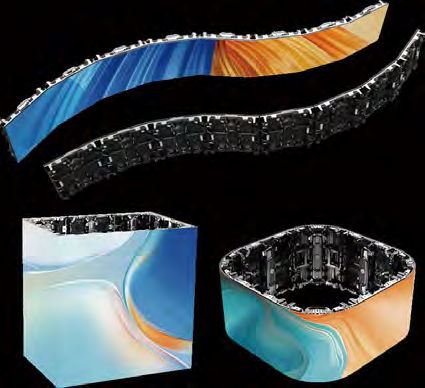

• Curving Installation - XS series panel can realize curve connection from -7.5° convex to +12.5° concave , the advanced curve lock systems maintains the highest level of connection accuracy in both flat or curve configuration, creating amazing stage visual performance.
• Accessories - Curved Ground Support System Flat Ground Support System with Raising Function Truss With Electrical Lifting Flat Ground Support System Power Distribution Cabinet Control System

Performance Specifications

Technical Specifications

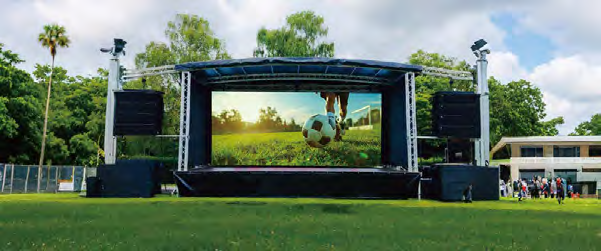

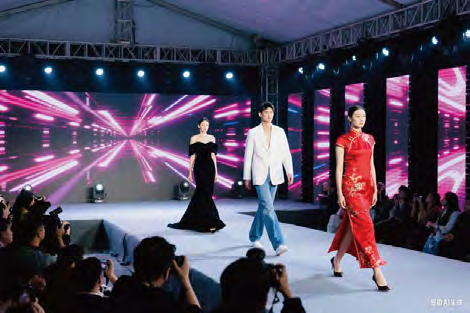

Applications

Contact Kings of Neon for expert advice on the XS Series for your project. We provide full consultation, installation support, and after-sales service across the UK.
